Sony mdr v 6 service manual

This is the 4 pages manual for sony mdr v 6 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4

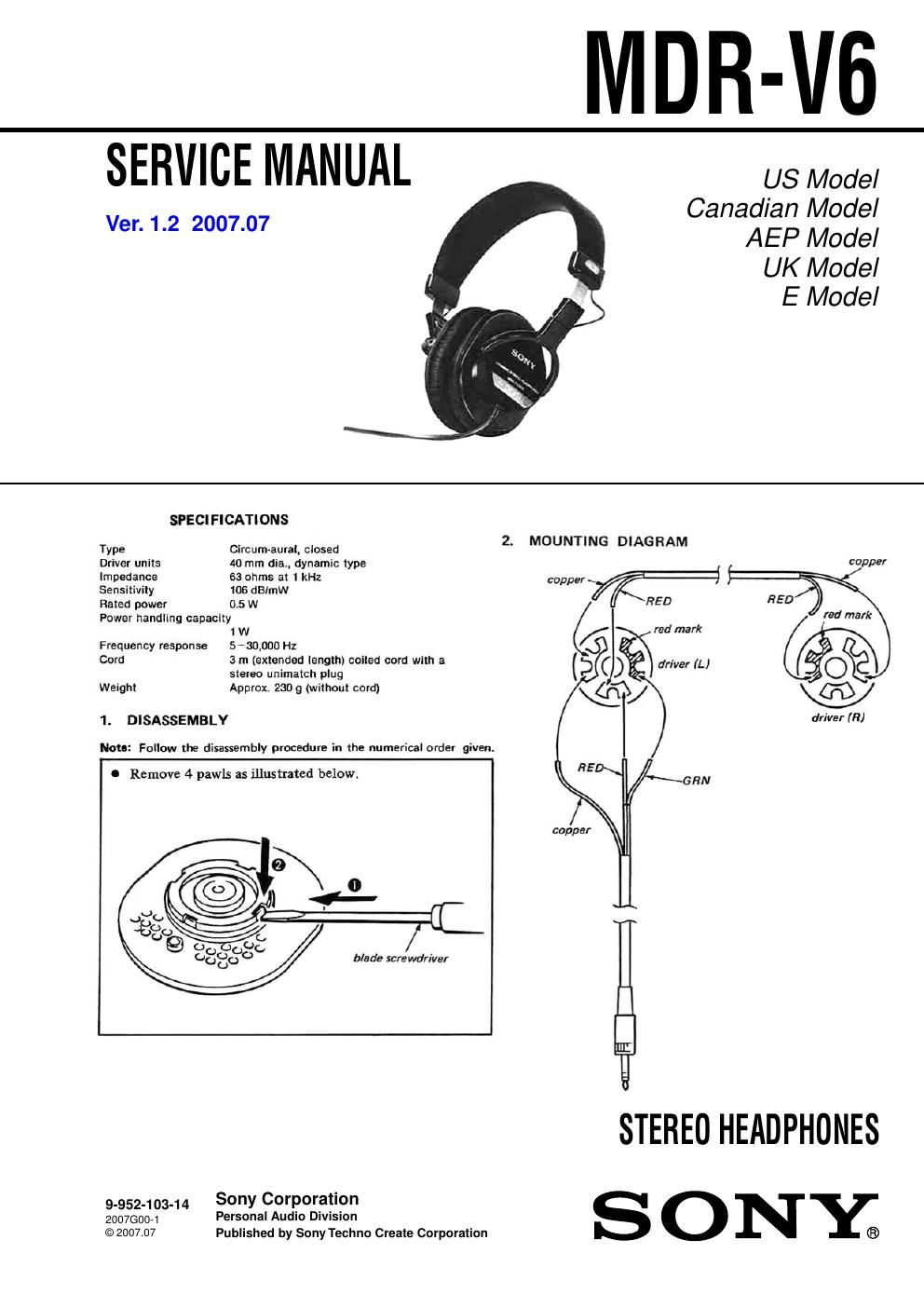

sony mdr v 6 service manual

Extracted text from sony mdr v 6 service manual (Ocr-read)


Page 1

2 MDR-V6 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 12-115-668-03 PAD, EAR 2 2-113-129-01 STOPPER, DRIVER * 4 2-113-152-02 REGISTER, FRONT * 5 2-113-140-01 PLATE, FRONT 6 2-113-137-01 BUSHING 7 X-2113-114-1 HOUSING (LEFT) ASSY 8 X-2113-113-1 HOUSING (RIGHT) ASSY 9 2-113-133-11 HANGER (RIGHT) 10 2-113-132-11 HANGER (LEFT) 11 2-113-134-11 CASE, HINGE 12 7-671-113-01 STEEL, BALL 3 13 2-113-146-01 SPRING, COMPRESSION 14 X-2113-116-1 CASE (LEFT) ASSY, CLICK * 15 2-113-122-01 BAND, HEAD 16 X-2113-112-1 CUSHION ASSY, HEAD * 17 2-113-124-11 LID (LEFT), CLICK CASE 18 X-2113-101-1 SLIDER (LEFT) ASSY * 19 2-113-123-11 LID, HINGE CASE 3. EXPLODED VIEW AND PARTS LIST NOTE: Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ve r. 1.2 20 2-113-130-11 LID (LEFT), HANGER 22 7-685-235-29 SCREW +KTP 2.6X10 TYPE2NON-SLIT 23 7-685-232-19 SCREW +KTP 2.6X5 TYPE2NON-SLIT 24 X-2113-102-1 SLIDER (RIGHT) ASSY 25 X-2113-115-1 CASE (RIGHT) ASSY, CLICK * 26 2-113-125-11 LID (RIGHT), CLICK CASE 27 2-113-131-11 LID (RIGHT), HANGER 28 2-113-149-01 RING, URETHANE 901 1-542-491-11 DRIVER (040F001P) 902 1-580-792-12 CORD (WITH PLUG) (with PLUG ADAPTOR) 903 1-506-589-11 ADAPTOR, PLUG ACCESSORIES ************ 2-113-147-11 CASE, SOFT 3-765-010-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, GERMAN)
