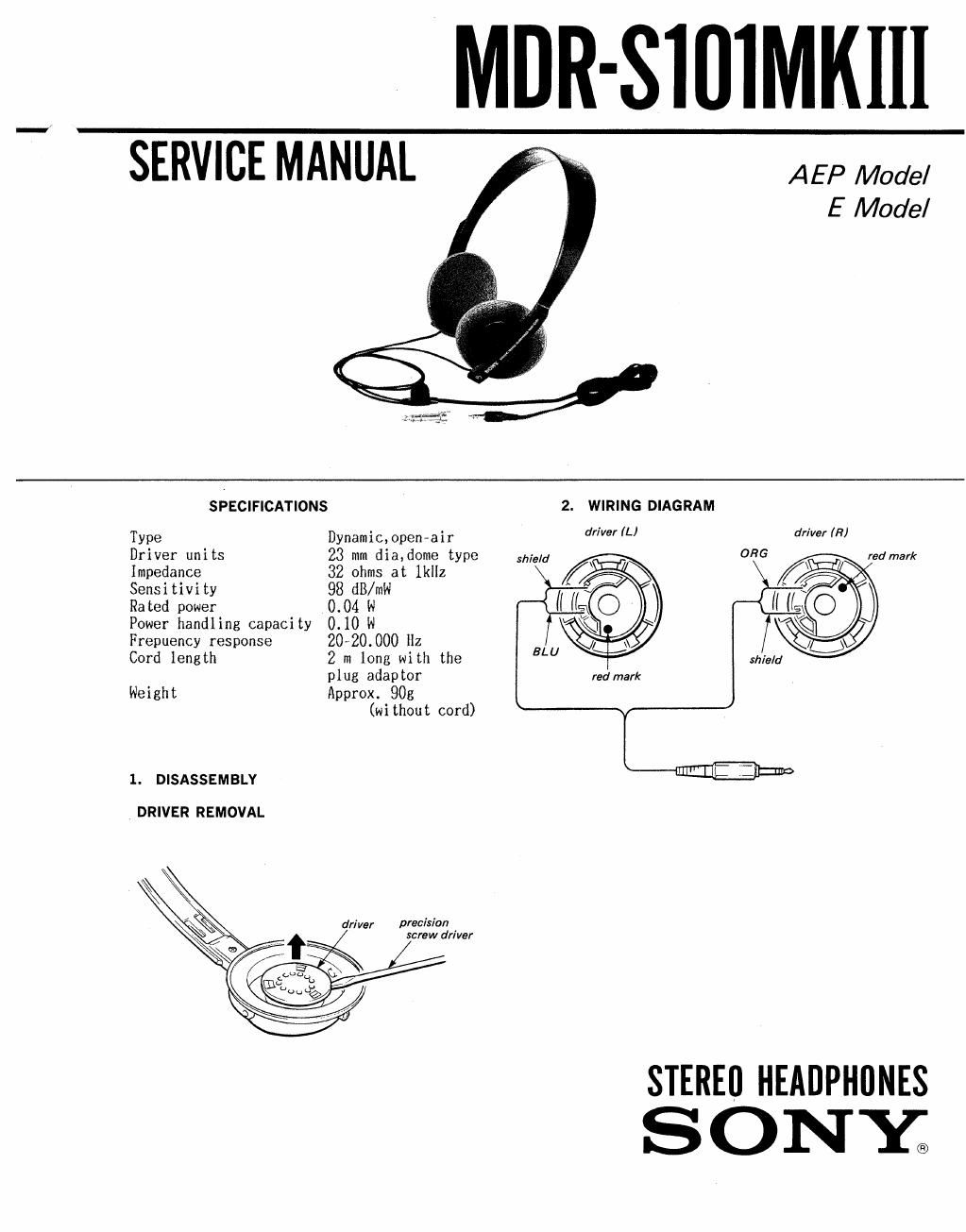

Page 1
mun-3101mm
SERVICE MNUAL
AEP Mode/
E Model
SPECIFICATIONS 2. WIRING DIAGRAM
Type Dynamic, open-air driver (Ll driver (R)
Driver units 23 mm dia,dome type We, ORG redmark
Impedance 32 ohms at lkflz
Sensitivity 98 dB/mw
Rated power 0.04 W
Power handling capacity 0.10 W
Frepuency response 20~20.000 Hz
Cord length 2 m long with the
plug adaptor
Weight Approx. 90g
(without cord)
1. DISASSEMBLY
DRIVER REMOVAL
driver precision
screw driver
STEREO HEADPHIINES
SONY®
Page 2
MDR-SlOlMK III
3. EXPLODED VIEW AND PARTS LIST
pattern /
(\ (left side} /
\ /
\\ /
Installation Note:
Install the driver so tha the panern is located as illus-
trated (left side).
ELECTRICAL PARTS
RefINo Part No Descrighon Remark Ref.No Part No. Description Remark
1 2-121-779>01 HOLDER 901 1-574430-11 CORD WITH PLUG
2 2-121-777>01 LID (LEFT), SLIDER 902 1-566-410-21 ADAPTOR, PLUG
3 2-121'778-01 LID (RIGHT). SLIDER
4 X'2121~708-1 HOUSING ASSV
6 X-2121-711<1 DRIVER ASSV
7 2-121>788-01 REGISTER, FRONT
B 2~121-730>01 PAD, EAR
9 2421-7764 BAND. HEAD
10 7-685-203-19 SCREW +KTP 2X5 TYPEZ SLIT
English
. 91 H0453~1
Sony Corporation Primed in Japan
9-956-594-11 General Audio Group © 1991. 8
_2_ Puhlished by Customer Relatlons and Service Group
