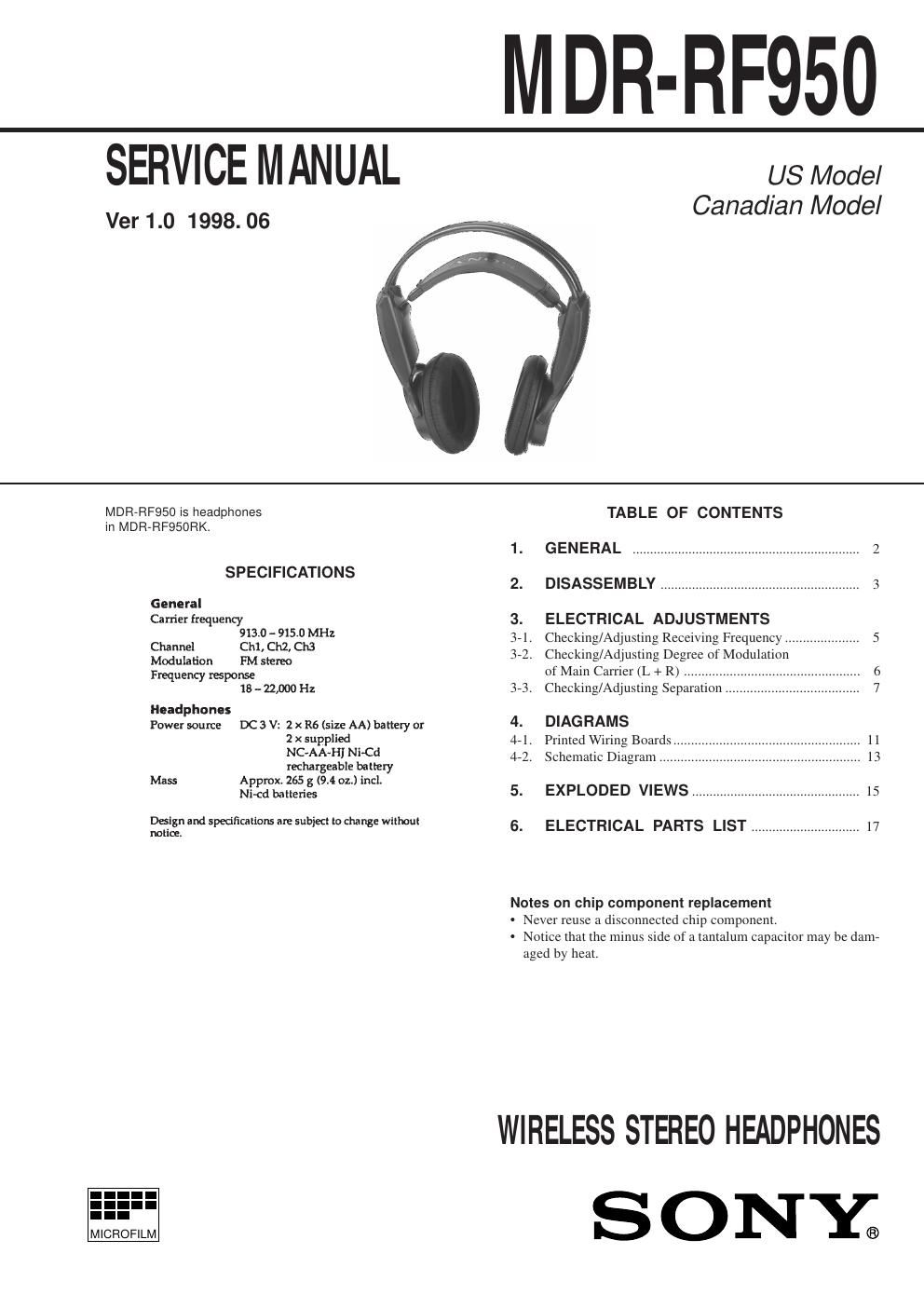

Sony mdr rf 950 service manual
This is the 16 pages manual for sony mdr rf 950 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr rf 950 service manual (Ocr-read)
Page 1
Ð 2 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
Page 2
Ð 3 Ð FRONT PLATE ASSY RX-BASE BOARD Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY ¥ This set can be disassembled in the order shown below. SET FRONT PLATE ASSYRX-BASE BOARD SW BOARD HANGER COVER (L) 4 Remove two solders of driver lead. 1 ear pad 3 front plate assy 2 three screws (P2 ´ 6) 2 hanger cover (R) 4 RX-BASE board 3 Remove four solders of leads. 1 two screws (P2 ´ 6) 1 two screws (P2 ´ 10) 3 Remove three solders of leads.
