Extracted text from sony mdr rf 940 r service manual (Ocr-read)

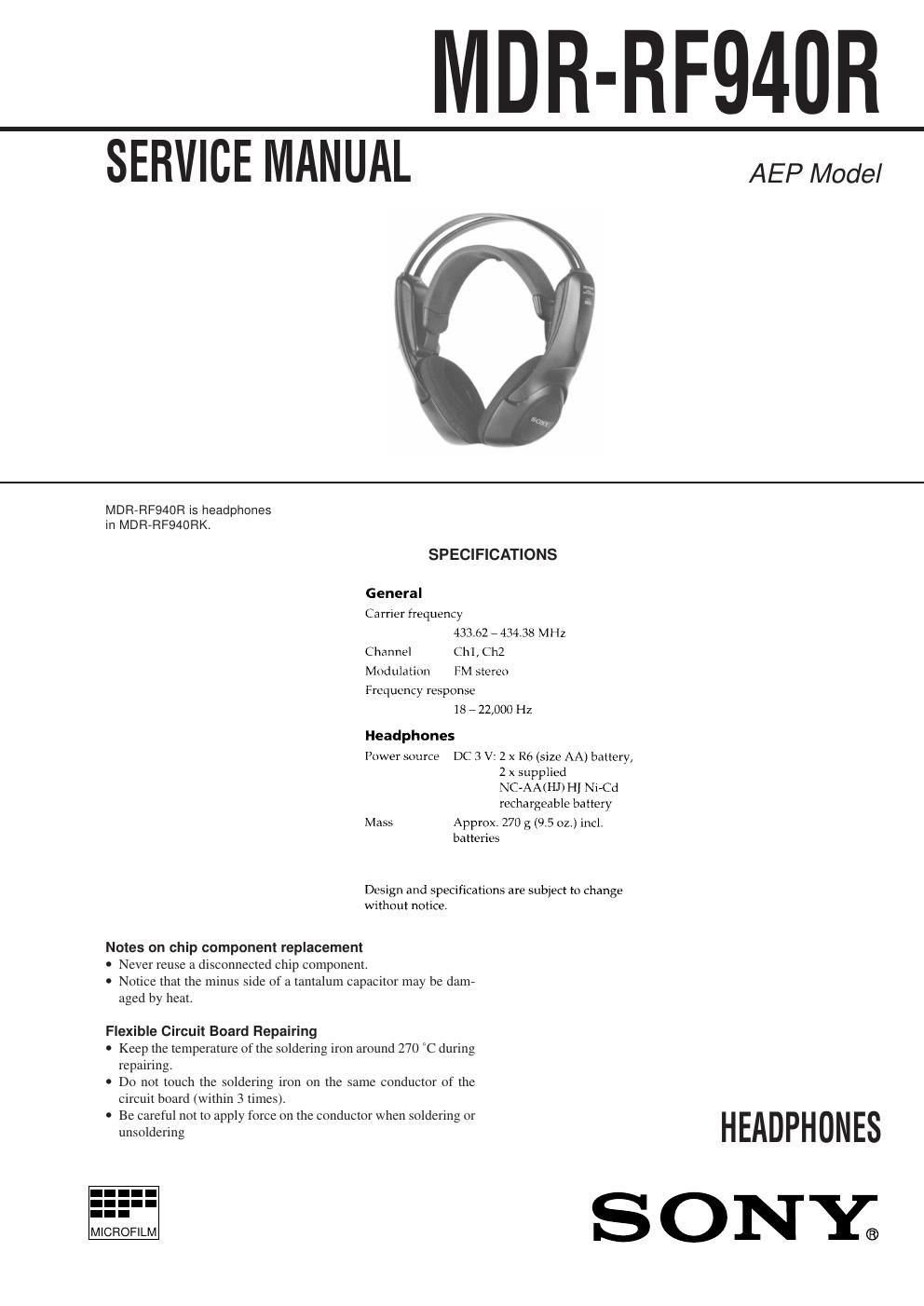

Page 1
Ð 2 Ð This section is extracted from instruction manual. SECTION 1 GENERAL
Page 2
Ð 3 ÐÐ 4 Ð MDR-RF940R Note: Follow the disassembly procedure in the numerical order given. HOUSING (R) SECTION 2 DISASSEMBLY ¥ This set can be disassembled in the order shown below. HOUSING (L), SW BOARD (Page 3) HOUSING (R) (Page 3) HANGER (L) (Page 4) HANGER (R), RX BOARD (Page 4) SET 1 ear pad 2 four screws (P 2 ´ 6) 4 front plate (R) 5 housing (R) 3 two bosses HOUSING (L), SW BOARD 2 two screws (P 2 ´ 6) 3 screw (P 2 ´ 6) 5 front plate (L) 6 housing (L) 7 SW board 4 two bosses 1 ear pad HANGER (R), RX BOARD 5 screw (PWH 2.6 ´ 6) 2 two screws (P 2 ´ 10) 1 two screws (P 2 ´ 6) 3 hanger (R) 4 RX board 6 two head bands 7 suspender assy HANGER (L) 4 screw (PWH 2.6 ´ 6) 2 two screws (P 2 ´ 10) 1 two screws (P 2 ´ 6) 5 two head bands 3 hanger (L) 6 suspender assy
