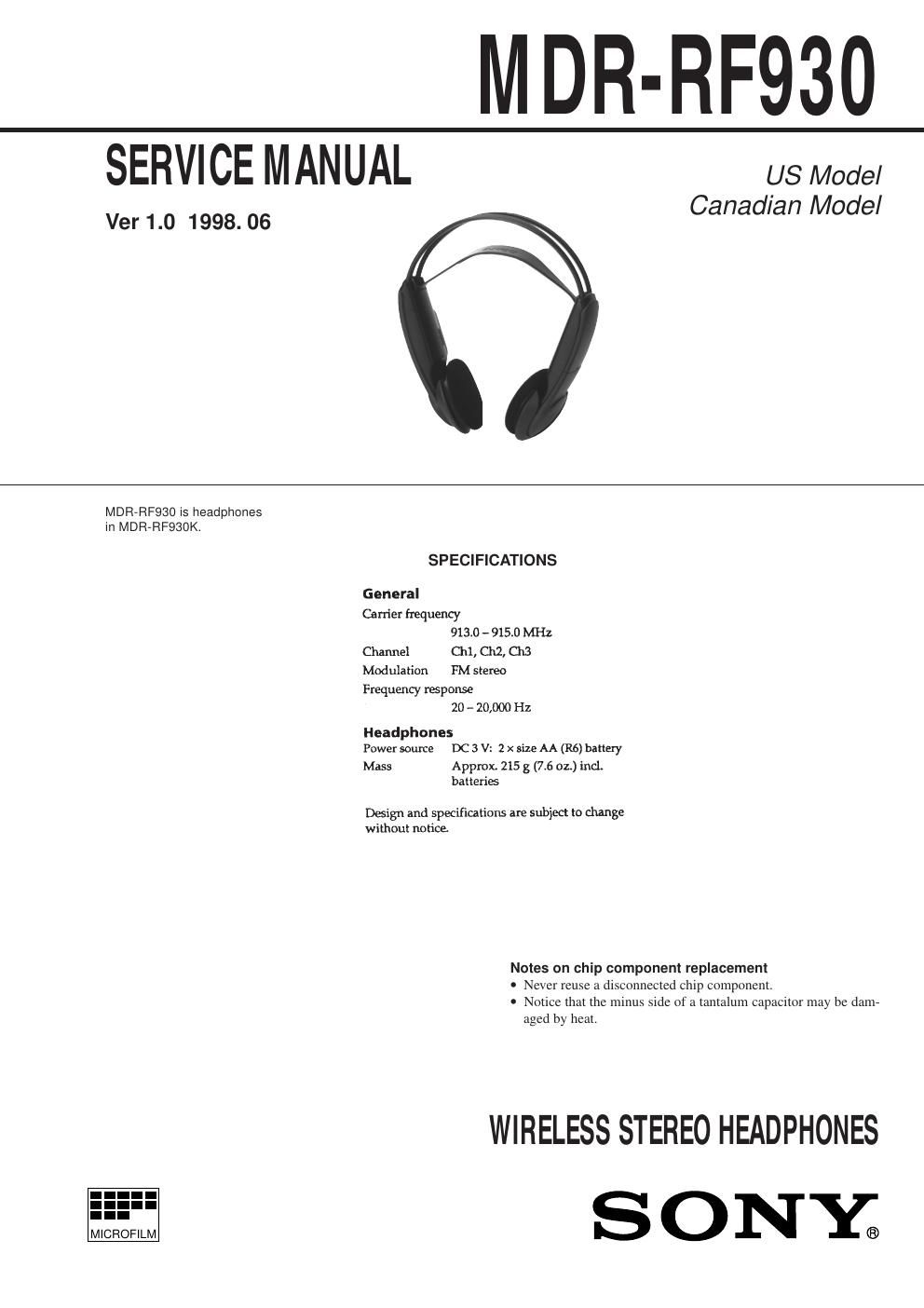

Page 1
Ð 2 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
Page 2
Ð 3 Ð HOUSING (R) ASSY, HANGER (R) 9 two screws (P2 ´ 8) 2 screw (B1.7 ´ 4) 1 ear pad 3 driver ( L-CH ) 8 housing (L) assy 7 ball shaft holder 6 screw (P2 ´ 6) 4 battery cover 5 hanger (L) 4 two screws (P2 ´ 6) 4 two screws (P2 ´ 10) 7 ball shaft holder 8 housing (R) assy 6 screw (P 2 ´ 10) 5 hanger (R) 2 screw (B1.7 ´ 4) 1 ear pad 3 driver (R-CH) ¥ This set can be disassembled in the order shown below. SECTION 2 DISASSEMBLY HOUSING (L) ASSY, HANGER (L) HOUSING (R) ASSY, HANGER (R) BATTERY CASERX BOARD SET Note: Follow the disassembly procedure in the numerical order given. HOUSING (L) ASSY, HANGER (L)
