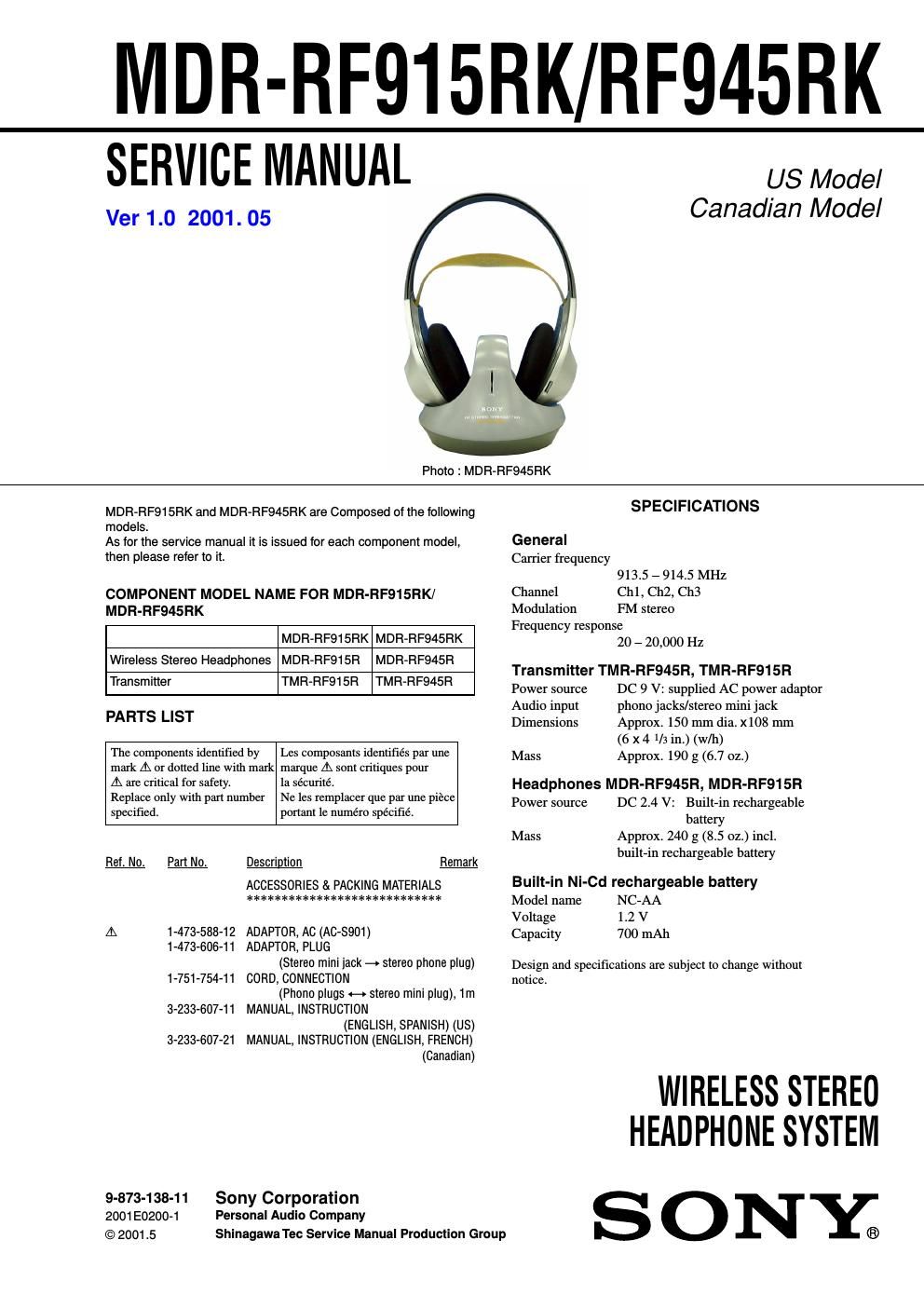

Sony mdr rf 915 rk service manual
This is the 4 pages manual for sony mdr rf 915 rk service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr rf 915 rk service manual (Ocr-read)
Page 1
2 MDR-RF915RK/RF945RK SECTION 1 GENERAL This section is extracted from instruction manual. Setting up the transmitter 1 Connect the transmitter to audio/video equipment. Select one of the hookups below depending on the jack type: To connect to a headphones jack DC IN 9V OFF ON FILTER NOISE 123CHANNEL R BAL AUDIO IN Transmitter Left channel (white) Right channel (red) Unimatch plug adaptor (supplied) Discman, MD, WALKMAN*, VCR, etc. to headphones jack (stereo mini jack) Connecting cord (supplied)to AUDIO IN A jacks to headphones jack (stereo phone jack) A 5 -Turn up the volume to a moderate level with the VOL control. Press the TUNING button briefly for automatic tuning of the headphones. If you do not receive a clear audio signal, press it again. MDR-RF945RK TUNING button VOL control A A Auto power on/off function When you remove the headphones from your head, the power turns off automatically. Do not allow the self adjusting band to be pulled up, otherwise the headphones will be switched on. The power turns on. 5 -Turn up the volume to a moderate level with the VOL control, then tune the headphones in to the frequency o f the transmitter with the TUNING control until you can hear the audio signal loud and clear. MDR-RF915RK Try the above steps 3 and 5 until the receiving performance becomes better. TUNING control VOL control B B
Page 2
3 MDR-RF915RK/RF945RK
