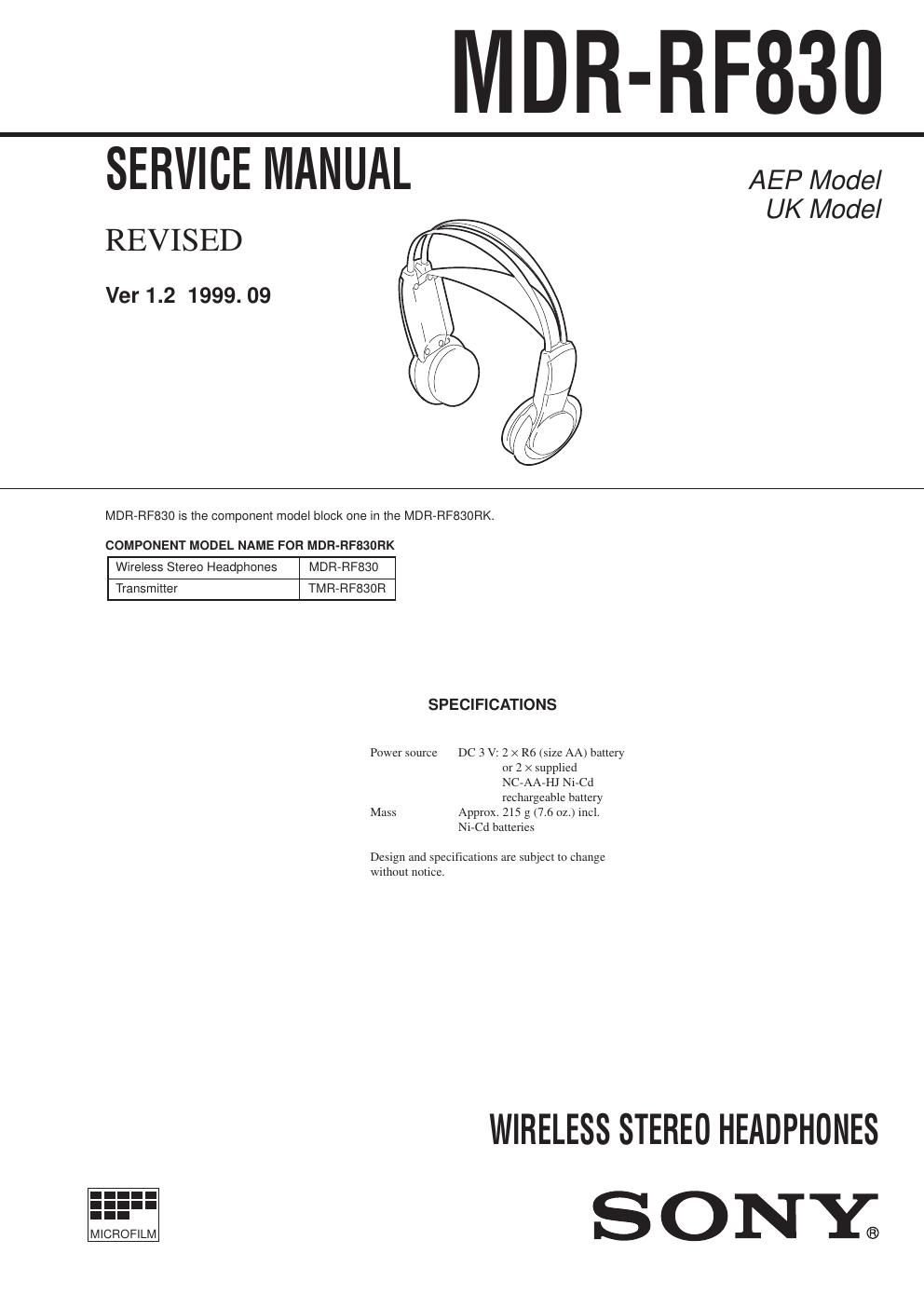

Sony mdr rf 830
This is the 10 pages manual for sony mdr rf 830.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr rf 830 (Ocr-read)
Page 1
Ñ 2 Ñ Note: Follow the disassembly procedure in the numerical order given. SECTION 1 DISASSEMBLY Ñ 2 Ñ 1-1. RX BOARD, FE BOARD (R-CH) 3 Cover (R), hanger 7 FE board 4 RX board 8 Remove solder 9 Screw (M1.7 ´ 4) 1 Screws (+P2 ´ 12) 2 Screws (+P2 ´ 8) 0 Spacer !Á SW1 6 Remove solder 5 Plate, RX shield 1-2. MDD02 (R-CH) 5 Screw (M1.7 ´ 4) 2 Screw (+P2 ´ 8) 4 Housing (R) assy 6 MDD02 (R-CH) 1 Pad, ear 7 Remove solder 3 Holder, ball shaft
Page 2
Ñ 3 Ñ 1-3. CASE, BATTERY, MDD01 (L-CH) 5 Screws (+P2 ´ 12) 3 Screws (+P2 ´ 8) 8 Screw (+P2 ´ 8) !Á Screw (M1.7 ´ 4) 0 Housing (L) assy 1 Pad, ear !ª MDD01 (L-CH) !£ Remove solder 9 Holder, ball shaft 7 Remove solder 4 Cover (L), hanger 6 Case, battery 2 Cover, battery
