Sony mdr rf 415 r service manual
This is the 12 pages manual for sony mdr rf 415 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

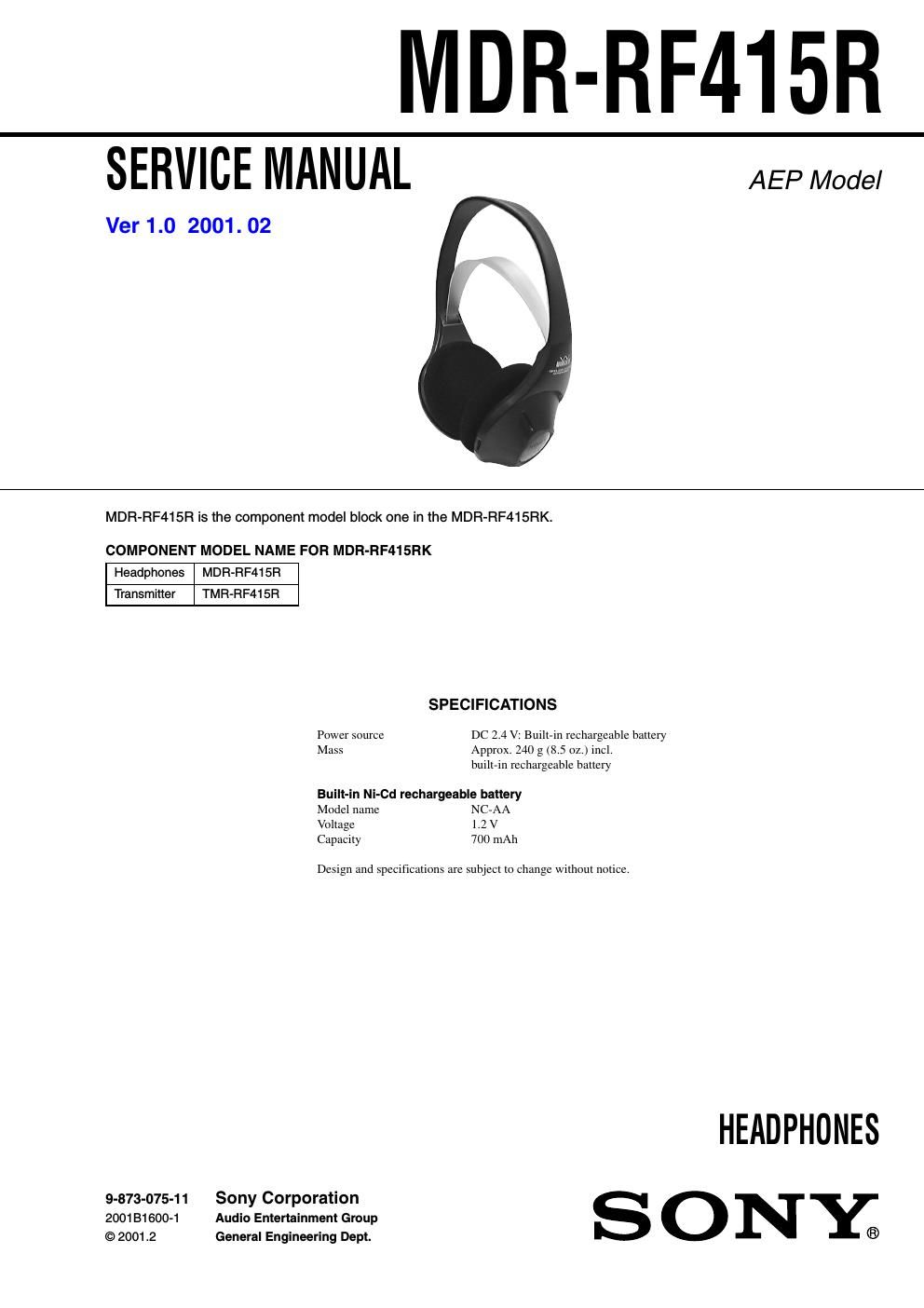

Extracted text from sony mdr rf 415 r service manual (Ocr-read)
Page 1
2 MDR-RF415R SECTION 1 GENERAL This section is extracted from instruction manual. 5 Turn up the volume to a moderate level with the VOL control, then tune the headphones in to the frequency of the transmitter with the TUNING control until you can hear the audio signal loud and clear. TUNING control VOL control Auto power on/off function When you remove the headphones from your head, the power turns off automatically. Do not allow the self adjusting band to be pulled up, otherwise the headphones will be switched on. The power turns on. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat.
Page 2
3 MDR-RF415R SECTION 2 DISASSEMBLY 2-1. RX-BASE BOARD Note :Follow the disassembly procedure in the numerical order given. 3Remove the nine solderings. 8 Remove the two solderings. RX-BASE board Solder the each lead wires directly to the position as shown while being cautions of colors. Precaution for installtion Precaution for installtion 6 RX-BASE board 9 Switch, push (1 key)Cover (R), hanger No.203 No.203 (black)No.202 (red)No.201 (green)No.201 No.204 No.205 No.204No.202 4 Screw (P 2 × 8) 1 Five screws (P 2 × 6) 2 Set the push switch (1 key). Suspender 1 Slide the suspender in the direction of the arrow.Claw Claw 2 5 7
