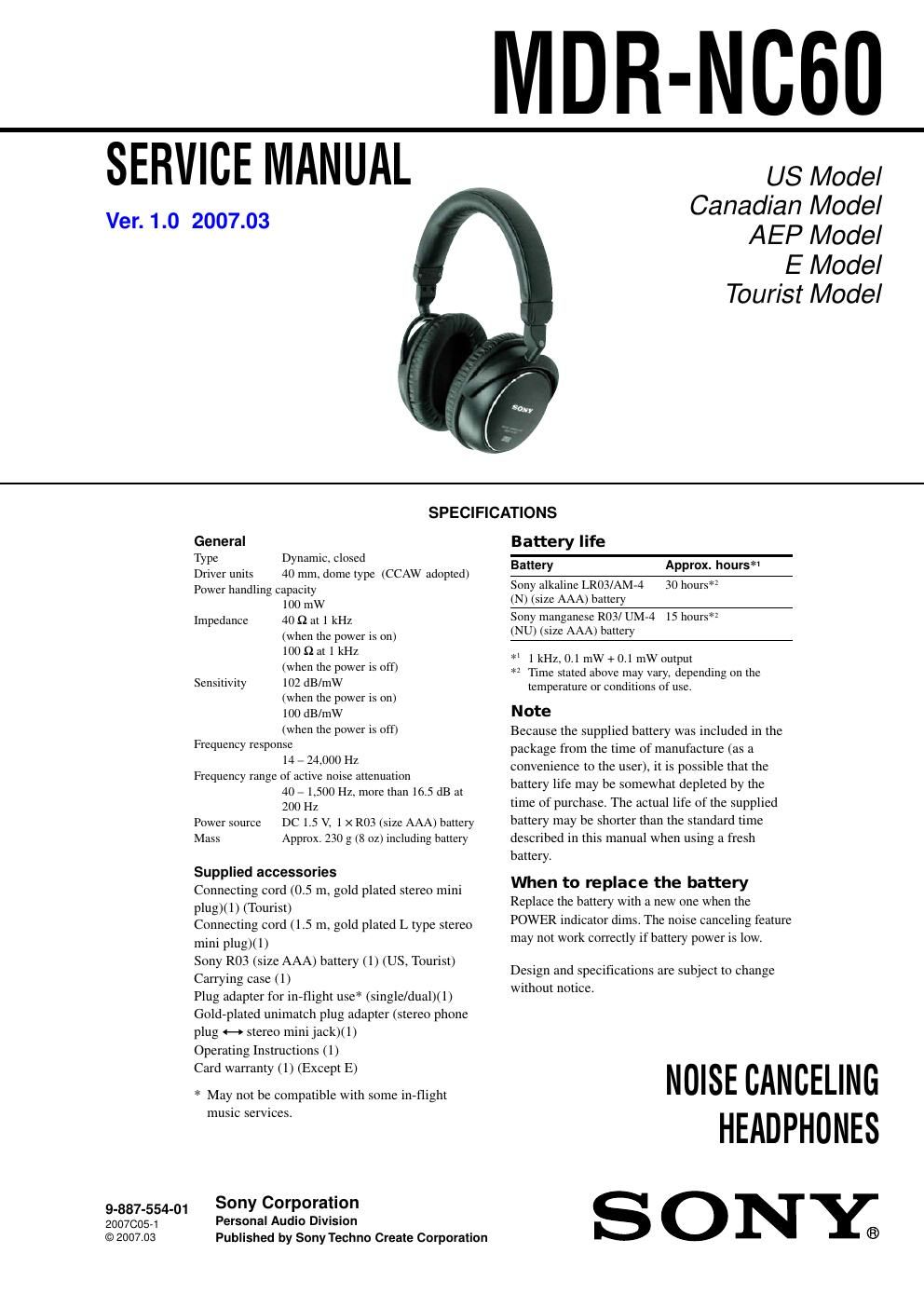

Sony mdr nc 60 service manual

Page 2

3 MDR-NC60 SECTION 1 GENERAL This section is extracted from instruction manual. Features - Noise canceling headphones reduce unwanted ambient noise, providing a quieter environment to enhance your listening experience. A microphone inside each earpiece works with electronic circuitry to create an opposite sound wa ve to cancel out the noise. Up to 85 % ambient noise cancellation (Over 16.5 dB is reduced at 200 Hz) - Slim, folding design for easy portability - Neodymium magnets for powerful sound - Dual-use capability allows option to listen to music with or without noise cancellation - Built-in monitor function lets you silence the audio to listen outside - Supplied plug adaptor for easy connectivity to stereo or dual jack for in-flight music services Installing a battery 1Push the BATT Z button located at the bottom of the right housing. The lid of the battery box opens slightly. 2Open the lid of the battery box of the headphone to insert one size AAA battery. 1 2 NoteThe lid of the battery box opens only so far, as shown in the illustration. Do not further force open the lid as it may damage it. 3Close the lid. Right housing Match the e on the battery to the e in the battery case. To r emove the batteryOpen the lid of the battery box, then push the position marked with PUSH G. The e side of the battery comes up. Remove the battery by pulling it. 1 2 If the lid of the battery box is detached F ollow the procedure below to reattach the lid.1Attach the lower side of the lid. 2Push the upper side of the lid straight forward until it clicks into position. Listening to music 1Connect the headphones to the AV equipment. *W ALKMAN and WALKMAN logo are registered trademarks of Sony Corporation. Notes- When connecting the cord, insert the plug into the jack until the green portion of the plug disappears. OK -T o disconnect the cord, pull it out by the plug, not the cord, as the inner conductors may break. 2Turn on the power on the right side of the headphones. The POWER indicator lights in red. When the power is turned on, ambient noise is reduced, and you can listen to music more clearly at a lower volume. 3Put on the headphones so that the ear pads cover your ears. RL L R When connecting to the stereo mini jack of the remote controls jack supplied with a WALKMAN , etc. Remote control When connecting to the stereo mini jack of a WALKMAN *, etc. Connecting cord 1.5 m (supplied)Headphones Connecting cord 0.5 m (supplied) OFF ON POWER L R Noise canceling microphone 4T urn on the power of the AV equipment. Hearing environmental sound for safety If the MONITOR switch is pressed and held while the POWER switch is set to ON, playback silences so you can hear the surrounding environment. NoteThe environmental sound might not be heard if the microphone is covered with your fingers. Notes on using on the airplane - The supplied plug adaptor can be connected to dual and stereo mini jacks. - Do not use the headphones when use of electronic equipment is prohibited or when use of personal headphones for in-flight music services is prohibited. If you have any questions or problems concerning the system that are not covered in this manual, please consult the nearest Sony dealer. After listening to music Tu rn off the power of the headphones. Folding the headphones FoldingThe housings rotate to make them flat for easy storage in the carrying case (supplied), or in a seat pocket. Restore to their usual position before using. for dual jacks for stereo mini jacks L R Monitor microphone MONITOR s witch
