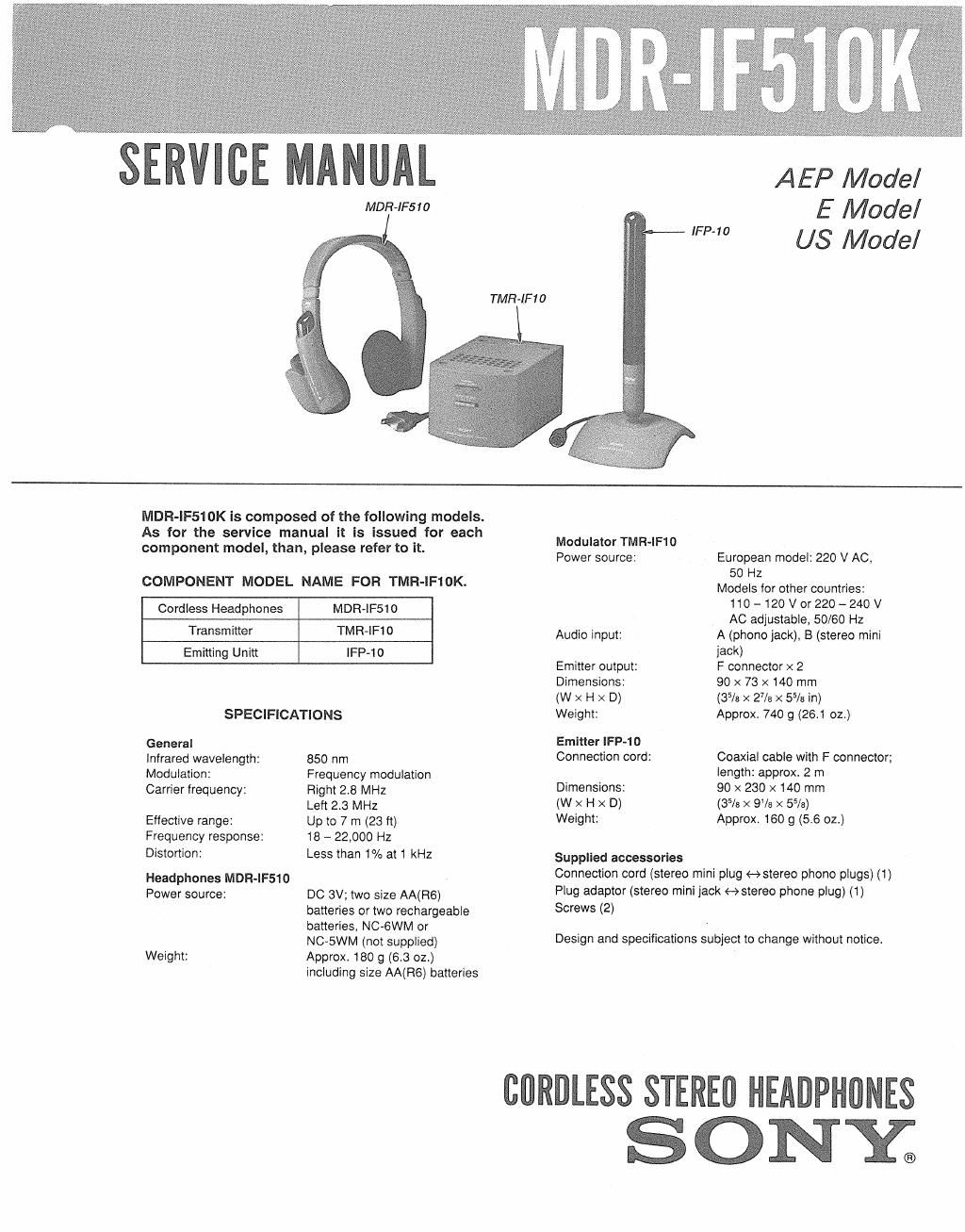

Page 1

to? "

ERVIBE MANUAL

MDR-IFS 10

TMFI-IF 10

AEP Model
E Model
US Model

MDR-IFSIOK ls composed of the following models.
As for the service manual it is issued for each
component model, than, please refer to it.

COMPONENT MODEL NAME FOR TMR~IF10K.

Cordless Headphones MDRv|F510
Transmitter TMR-lFiO
Emitting Unitt |FP~1O

SPECIFICATIONS

General
infrared wavelength: 850 nm
Modulation: Frequency modulation
Carrier frequency: Right 28 MHz

Left 2.3 MHz
Effective range: Up to 7 rn (23 ft)
Frequency response: 18 - 22,000 Hz

Distortion: Less than 1% at 1 kHz

Headphones MDR-IF51D

Power source: DC 3V; two size AA(R6)
batteries or two rechargeable
batteries, NC¢6WM or
NC-SWM (not supplied)

Weight: Approx, 180 g (6.3 02.)

including size AA(R6) batteries

Modulator TMR-IF10
Power source:

Audio input:

Emitter output:
Dimensions:
(W x H x D)
Weight:

Emitter lFP-10
Connection cord:

Dimensions:
(W x H x D)
Weight:

Supplied accessories

European model: 220 V AC,
50 Hz

Models for other countries:
110-120Vor220v240V
AC adjustable, 50/60 Hz

A (phone jack). B (stereo mini

iack)

F connector x 2

90 X 73 x 140 mm

(35/: X 27/5 >< 55/3 in)

Approx. 740 g (26.1 oz.)

Coaxial cable with F connector:
length: approx, 2 m

90 x230 x140 mm

(35/6 >< 9V8 >< 55/8)

Approx. 160 g (546 02:)

Connection cord (stereo mini plug Hstereo phono plugs) (1)
Plug adaptor (stereo mini jack <->stereo phone plug) (1)

Screws (2)

Design and specifications subject to change without notice:

CORDLESS STEREO HEADPHDNES
SONY;

Page 2

MDR-IF510K

PARTS LIST

0 Items marked "1: are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

ACCESSORIES & PACKING MATERIAL

1-506-652-11 ADAPTOR, PLUG
1-590-038-11 CORD. CONNECTION
*2-145-13501 PLATE, ORNAMENTAL, CASE
*2-145-13501 BOX. ORNAMENTAL. ACC
*3701-624-00 BAG, POLYETHYLENE

*3-701-625-00 BAG. POLYETHYLENE
3-704'05301 HANDLE (8). STANDARD
3-751-795-11 MANUAL. INSTRUCTION
(ENGLISH. FRENCH. SPANISH)

3751319521 (US) MANUAL. INSTRUCTION

(ENGLISH)
3-751-795-41 (AEP) MANUAL, INSTRUCTION

(GERMAN, ITALIAN, PORTUGUESE)

*4941-105-01 BOX. LOWER. CASE

4941-106-01 SLEEVE. INNER
*4-941-10701 SPACER, EMITTER
*4-941-109-01 LID. UPPER. CASE
*4r941-111-01 PLATE. ORNAMENTAL
*4-941-112-01 PARTITION

*4-941-113-01 BOX. INNER
*4941-11601 SPACER
*4-941-117-01 BOX, OUTER
4941-11301 PANEL
7-621-849-30 SCREW. WOOD + R 31 x 20

Sony Corporation
9955-84642 General Audio Group

_2__

English
90H0531-1
Printed In Japan
© 1990 8

Published by Customer Relations and Service Group
