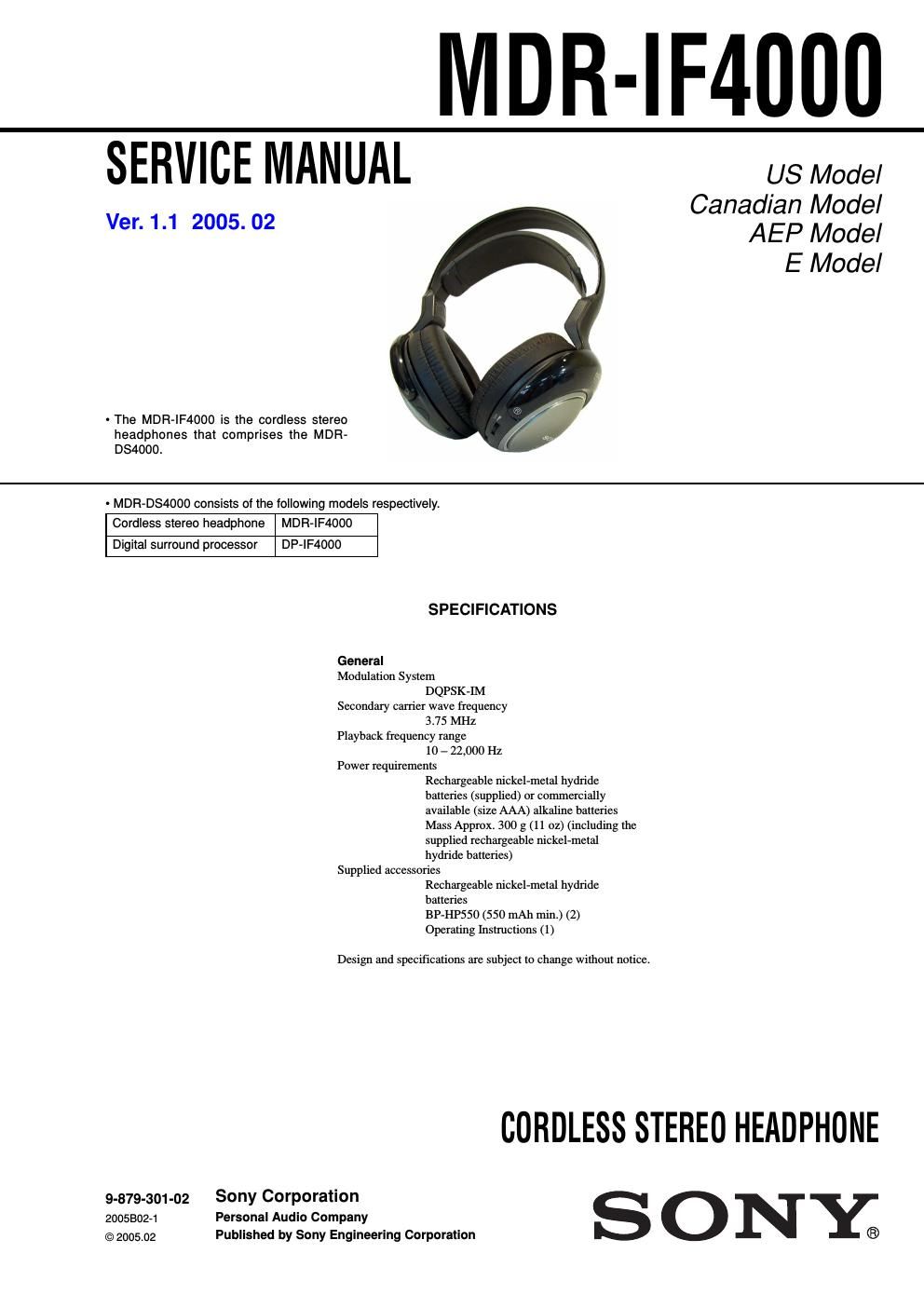

Sony mdr if 4000 service manual
This is the 30 pages manual for sony mdr if 4000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr if 4000 service manual (Ocr-read)
Page 1
2 MDR-IF4000 TABLE OF CONTENTS Specifications ........................................................................\ .... 1 1. GENERAL ................................................................... 3 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 4 2-2. Front Plate (R) Assy ........................................................ 4 2-3. RX Board ........................................................................\ . 5 2-4. Hunger (R) ....................................................................... 5 2-5. Wiring On The Right Side ............................................... 6 2-6. Front Plate (L) Assy ........................................................ 6 2-7. Batt Board ........................................................................\ 7 2-8. Hanger (L) ....................................................................... 7 2-9. Wiring On The Left Side ................................................. 8 2-10. Hunger Lid (L) ................................................................ 8 2-11. Wiring On The SW Board ............................................... 9 2-12. How To Hang The Tension Spring .................................. 9 3. DIAGRAMS 3-1. Circuit Boards Location .................................................. 10 3-2. Block Diagrams ............................................................... 11 3-3. Printed Wiring Board – Receiver Section – .................... 12 3-4. Printed Wiring Board – Power Section – ........................ 13 3-5. Schematic Diagram – Receiver Section – ....................... 14 4. EXPLODED VIEWS 4-1. Housing (L) Assy Section ................................................ 17 4-2. Housing (R) Assy Section ............................................... 18 5. ELECTRICAL PARTS LIST .................................. 19 Notes on chip component replacement -Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -U nleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. - Repaier DP-IF4000 with MDR-IF4000.
Page 2
3 MDR-IF4000 SECTION 1 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS 1Ear pad (left) 2Battery case button 3Battery case 4Infrared sensor 5Self-adjusting band 6VOL (Volume) control 7Ear pad (right) 8POWER indicator ! "
