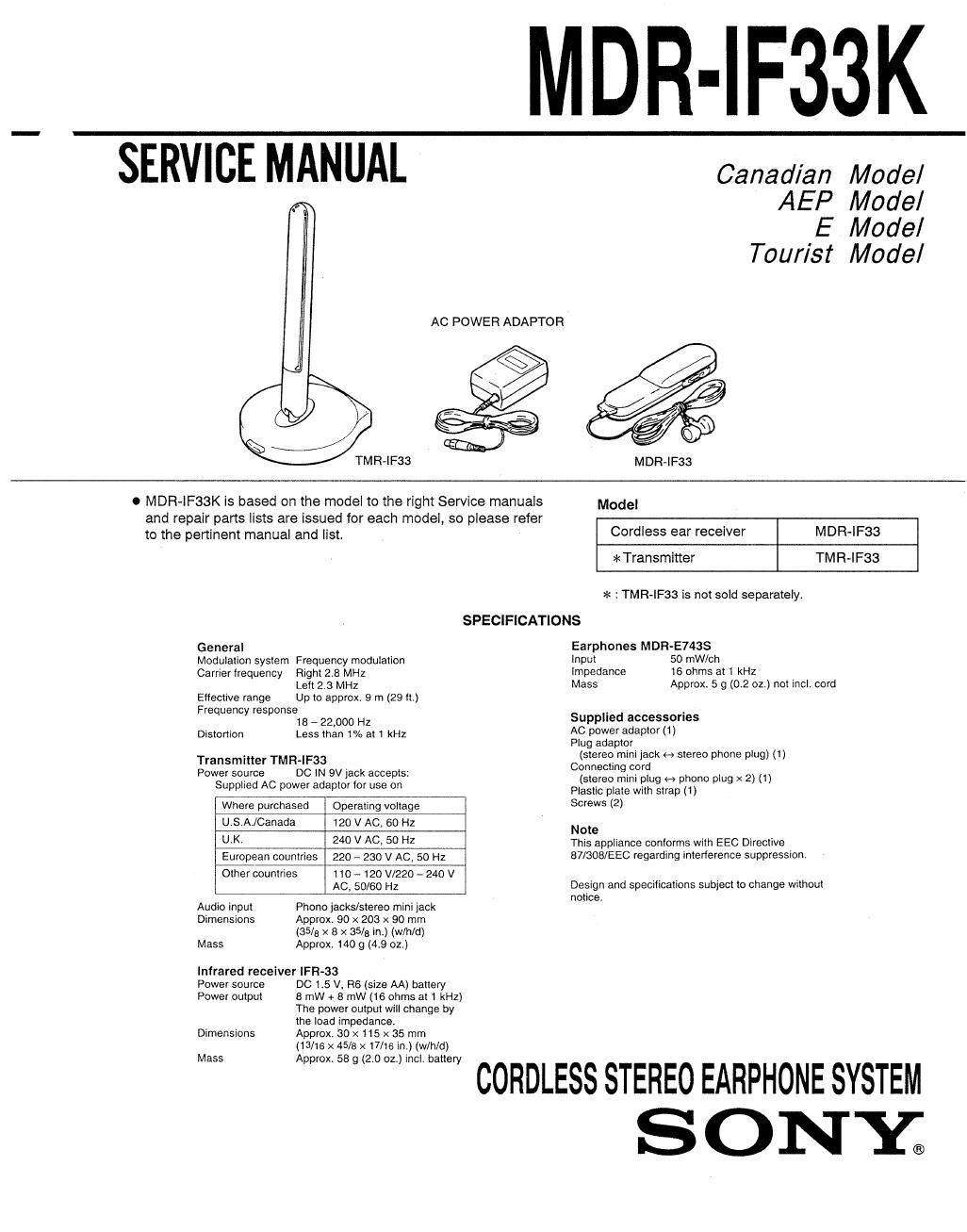

Sony mdr if 33 k service manual

Page 2

ELECTRICAL PARTS LIST

NOTE :

0 Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.

0 XX, -X mean standardized parts, so
they may have some difference from
the original one.

0 RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE : Metal oxide-film resistor
F : nonflammable

Ref. No. Part No. Description

ACCESSORIES & PACKING MATERIALS
*****************************t*

1-506-652-11 ADAPTOR, PLUG

1-590-038-11 CORD. CONNECTION

**I>>9I>

0 Items marked * are not stocked since
they are seldom required for routine
service Some delay should be antici-
pated when ordering these items.

0 SEMICONDUCTORS
In each case. n : ,u . for example :
uA..,.: ,u AW , uPA..I.: ,u PAW.
uPB. : .,.,uPc.,.,: ,uPCw.
uPD.,..: I; PDW

o CAPACITORS
uF : ,u F

o COILS
ul-I : u H

Remark

1-465-817-21 ADAPTOR, AC (AC-96NES)(AEP)
1-569-008-11 ADAPTER. CONVERSION 2? (air)
1-693-029-11 ADAPTOR, Ac (AC-BGNB) (Canadian)
1-6934130-11 ADAPTOR, AC (AC-905)(E,JE)
3-704-276-01 BAG, (STANDARD), PROTECTION (ails)

3704-365-01 BAG (STANDARD), PROTECTION 3-756~616-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, GERMAN, SPANISH)

3-756-616-41 MANUAL, INSTRUCTION (AEP)
(DUTCH, SWEDISH. ITALIAN, PORTUGUESE)

>l< 4-958-007-01 INDIVIDUAL CARTON

776ZI~849-30 SCREW, WOOD +R 3.1X20

8-953-551-90 HEADPHONE MDR-ETISS SET
X-4943-718-1 STRAP ASSY (Canadian.AEP)

X-4943-718-Z STRAP ASSY (E, II?)

9-957-578-1 1

Sony Corporation
General Audio Group

_2_

The components identified by
mark or dotted line with mark
RA are critical for safety.

eplaee only with part number
specified.

When indicating parts by refer-
ence number, please include the
board

0 Abbreviation
JE :Tourisl model

English

93002594

Printed in Japan

©1993.3

Published by Audio Corporate Plannlng Group
