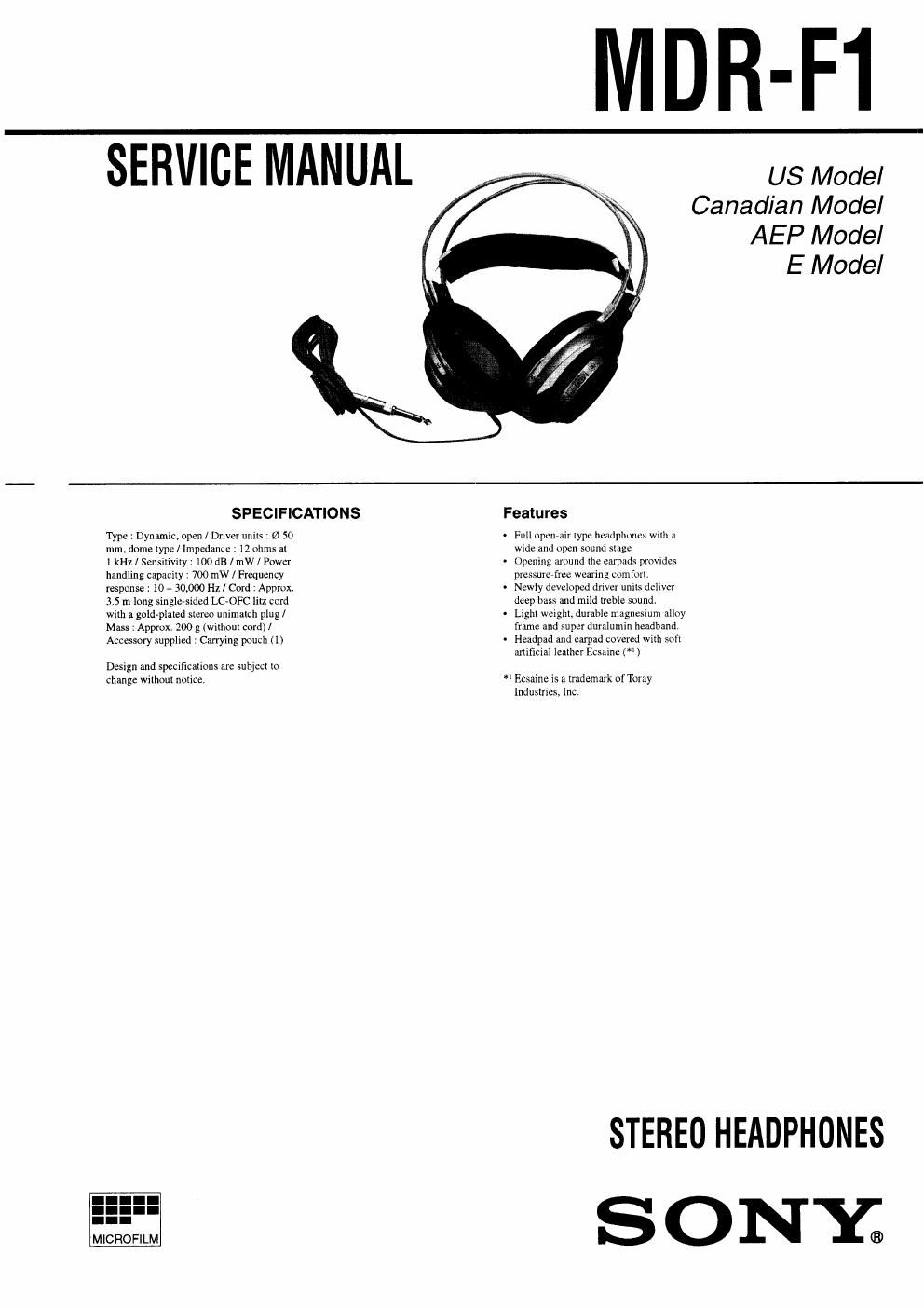

Page 1

MDR-F1

US Model
Canadian Model
AEP Model

E Model

SPECIFICATIONS

Type : Dynamic, open I Driver units : a 50
mm, dome :ypc/ Impedance: 12 ohms al

1 kHz / Sensiuvhy: 100 dB / mW / Power
handling capacny. 700 mW / Frequency
response : 10 A 30,000 Hz / Cord : Approx.
3 5 m long single»sided Lc-orc 1m cord
with a gold-planed stereo unimaIch plug/
Mass : Approx 200 g (wilhom cord)!
Accessory supplied ' Carrying pouch ( I)

Design and specifications are subjea \0
Change wimoui notice.

MICHOFILM

Featu res

. Full open-air type headplmnes will} n

wide and npen sound slage

Opening around me earpnds provrdes

pressureefme wearing comfm'l.

- Newly develnpei driver uniL< dchvcr
deep bass and mild treble sound.

- Ligm wergm, durable magnesium alloy

[mm and super duralumin headband

Headpad and earpad Covered with soft

afiificial lemher Ecsainc C")

Ecsame is a trademark or Toray
Indusmcsr Inc.

STEREO HEADPHONES
S ONY®

Page 2

SECTION 1
NOTES OF ASSEMBLY

1-1. cono (WITH PLUG)

Note) Make a loop of cord with the clamp and
hook the loop onto the rib, as shown
in the figure

1-2. GRILLE ASSY (L)

Note) Position the part ® and the concave, then
turn the grille assy (L) in the direction 01.,
as shown in the figure.

concave

1-3. GRILLE ASSY (R)

Note) Position the par1® and the
concave, then turn the grille
assy (R) in the direction 0].,
as shown in the figure.

concave

grille assy (R)
