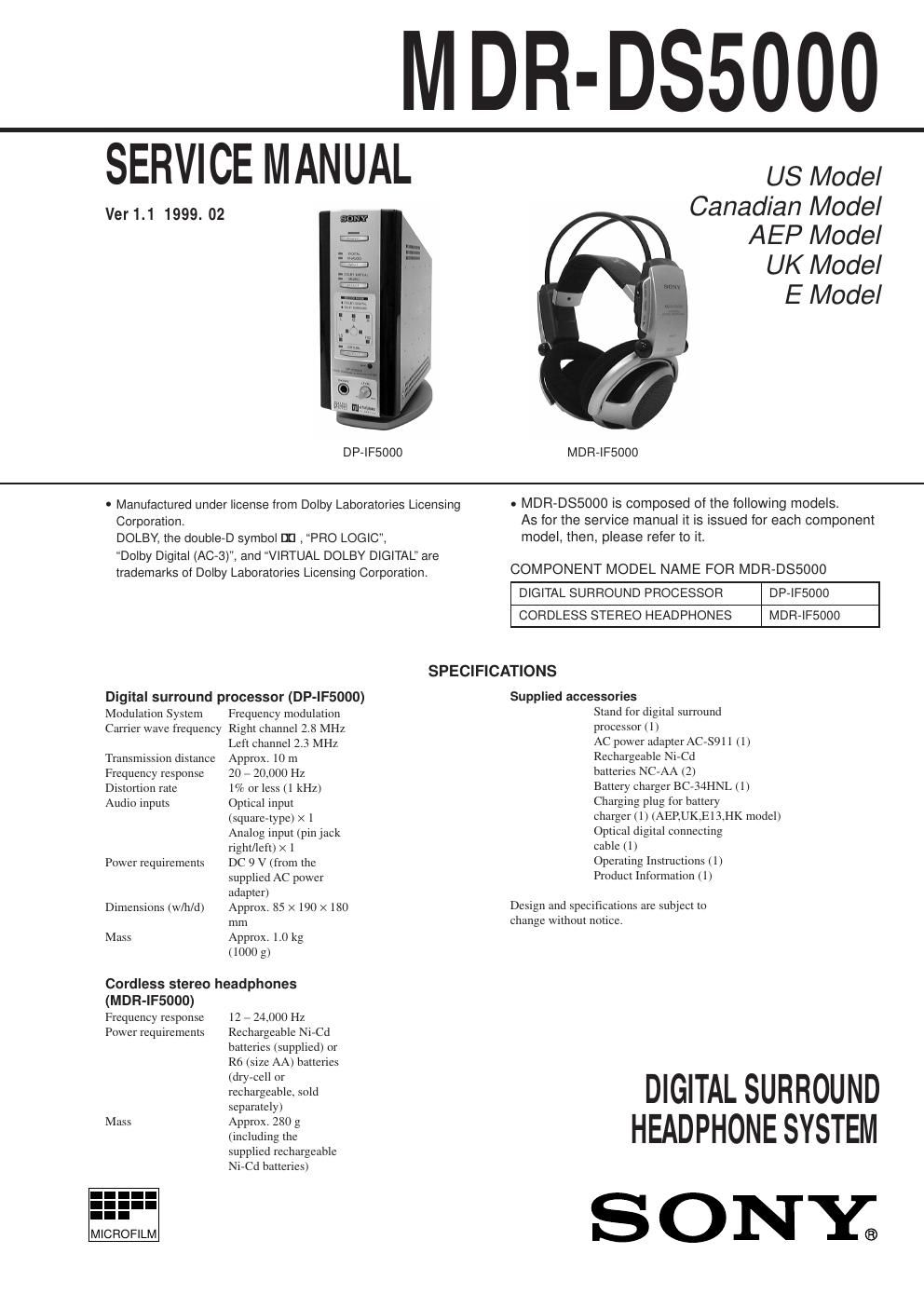

Sony mdr ds 5000 service manual

Page 1

Ð 2 Ð ACCESSORIES & PACKING MATERIALS ******************************** !1-467-817-11 ADAPTOR, AC (AC-S911) (for DP-IF5000) (US,CND,E92) !1-473-581-11 ADAPTOR, AC (AC-S911) (for DP-IF5000) (AEP,E13) !1-473-582-11 ADAPTOR, AC (AC-S911) (for DP-IF5000) (UK,HK) !1-528-929-11 CHARGER, BATTERY (BC-34HNL) (US,CND,E92) !1-528-930-11 CHARGER, BATTERY (BC-34HNL) (AEP,UK,E13,HK) 1-783-868-61 CORD, CONNECTION (OPTICAL DIGITAL CONNECTING CABLE) !1-790-368-11 CORD, POWER (for BATTERY CHARGER) (UK,HK) !1-790-369-11 CORD, POWER (for BATTERY CHARGER) (AEP,E13) 3-865-048-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, GERMAN,SPANISH) 3-865-048-21 MANUAL, INSTRUCTION (DUTCH,ITALIAN, PORTUGUESE) (AEP) 4-213-922-01 SCREW, COIN (for STAND) 4-213-944-02 INFORMATION, PRODUCT (JAPANESE,ENGLISH, FRENCH,SPANISH,GERMAN, DUTCH,ITALIAN,PORTUGUESE) 4-984-729-01 FOOT, RUBBER (for DP-IF5000) X-4950-550-1 STAND SUB ASSY (for DP-IF5000) PARTS LIST Sony Corporation Personal A&V Products Company 99B0481-1 Printed in Japan C1999. 2 Published by Quality Engineering Dept. (Shinagawa) 9-924-983-12 The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiŽs par une marque ! sont critiques pour la sŽcuritŽ. Ne les remplacer que par une piŽce portant le numŽro spŽcifiŽ. ¥ Abbreviation CND : Canadian model E92 : AC 120V area in E model E13 : AC 220 - 230V area in E model HK : Hong Kong model Ref. No. Part No. Description Remark
