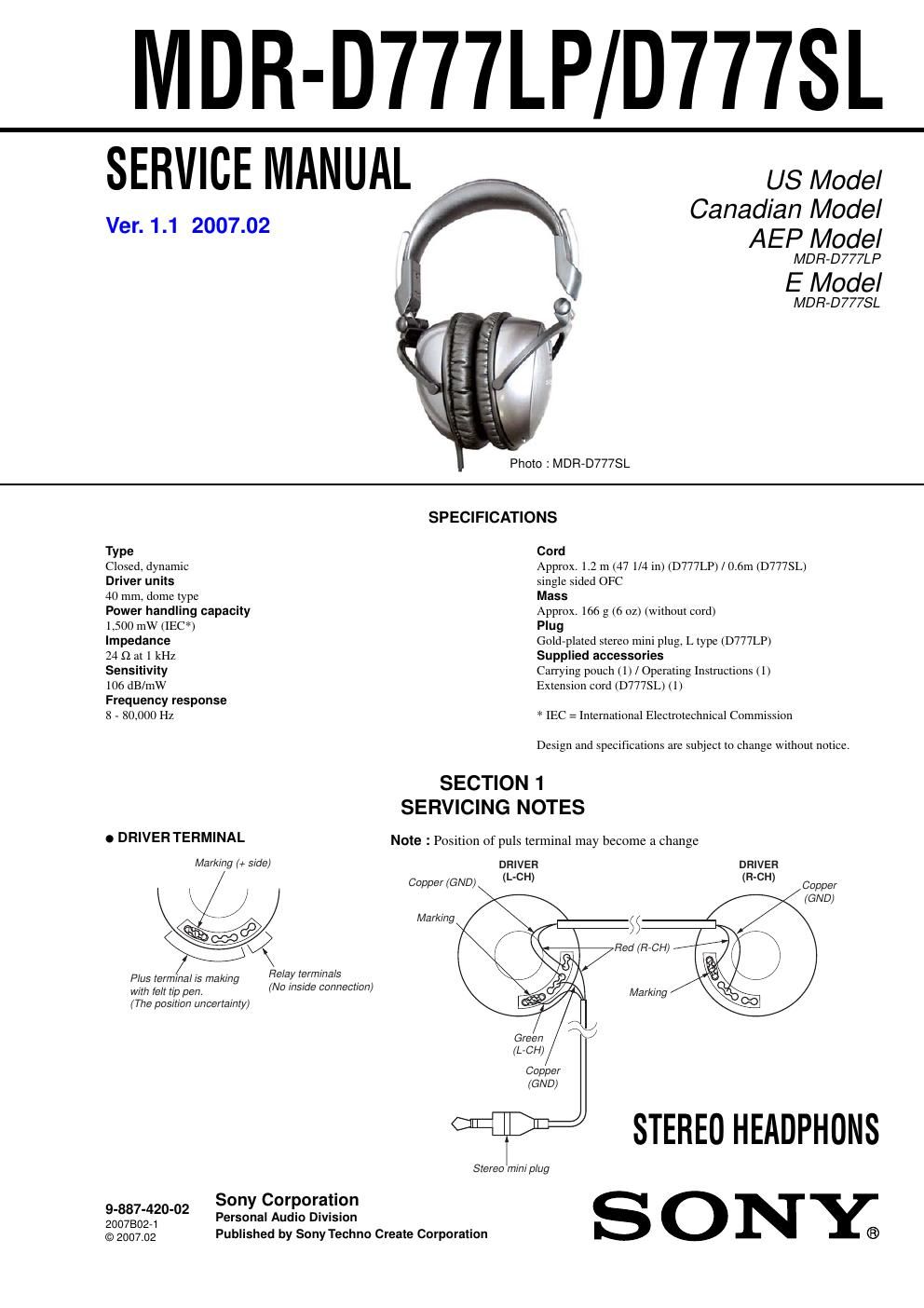

Sony mdr d 777 lp service manual
This is the 4 pages manual for sony mdr d 777 lp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr d 777 lp service manual (Ocr-read)
Page 1
MDR-D777LP/D777SL 2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 2 EXPLODED VIEWS 2-1. HEADBAND, HOUSING (L) SECTION 1 1-833-292-11 CORD (WITH PLUG) (1.2m) (D777LP) 1 1-833-293-11 CORD (WITH PLUG) (0.6m) (D777SL) 2 X-2176-197-1 HOUSING (L) ASSY 3 2-688-739-01 BUSHING 4 2-893-836-01 RESISTER (A), HOUSING 5 1-542-703-11 DRIVER (040F021) 6 2-688-740-01 PACKING, HOUSING 7 2-685-612-01 PLATE (L), FRONT 8 3-253-143-01 SCREW (B2.6), (+) P TAPPING 9 2-688-749-01 RESISTOR 10 2-895-680-01 RESISTOR, PROTECTOR 11 2-688-748-01 SCREEN 12 2-688-747-01 PAD, EAR 13 2-685-615-01 HANGER (R) 14 2-685-617-01 RETAINER, SLIDER 15 2-892-991-01 LID (R), HANGER 16 3-254-058-11 SCREW 17 2-898-709-01 PIN, PARALLEL (DIA. 2X16) 18 2-888-576-01 CAP, SLIDER 19 X-2176-196-1 SERVICE (HEADBAND ASSY) 20 2-685-616-01 LID (L), HANGER 21 2-685-614-01 HANGER (L) 22 2-892-294-01 SHEET, ADHESIVE 23 2-888-247-01 CAP, ORNAMENTAL NOTE: - -XX, -X mean standardized parts, so they may have some difference from the original one. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. 1 2 22 23 3 4 5 6 7 8 9 10 11 12 13 14 14 15 20 21 16 18 18 17 17 19 housing (R) section
Page 2
MDR-D777LP/D777SL 3 2-2. HOUSING (R) SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-2176-198-1 HOUSING (R) ASSY 52 2-893-836-01 RESISTER (A), HOUSING 53 1-542-703-11 DRIVER (040F021) 54 2-688-740-01 PACKING, HOUSING 55 2-685-613-01 PLATE (R), FRONT 56 2-688-749-01 RESISTOR 57 2-895-680-01 RESISTOR, PROTECTOR 58 2-688-748-01 SCREEN 59 3-253-143-01 SCREW (B2.6), (+) P TAPPING 60 2-688-747-01 PAD, EAR 61 2-892-294-01 SHEET, ADHESIVE 62 2-888-247-01 CAP, ORNAMENTALACCESSORIES ************ 1-790-035-61 CORD (WITH PLUG) (EXTENSION) (D777SL) 2-888-579-01 POUCH, CARRYING 2-890-407-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH) (D777LP: US) 2-890-407-21 MANUAL, INSTRUCTION (ENGLISH, SIMPLIFIED CHINESE, TRADITIONAL CHINESE, KOREAN) (D777SL: E) 2-890-407-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH, ITALIAN, PORTUGUESE, RUSSIAN, POLISH, SLOVAKIAN, CZECH, HUNGARIAN) (D777LP: CND, AEP) 51 52 61 62 5354 55 56 58 59 60 57 Ver. 1.1
