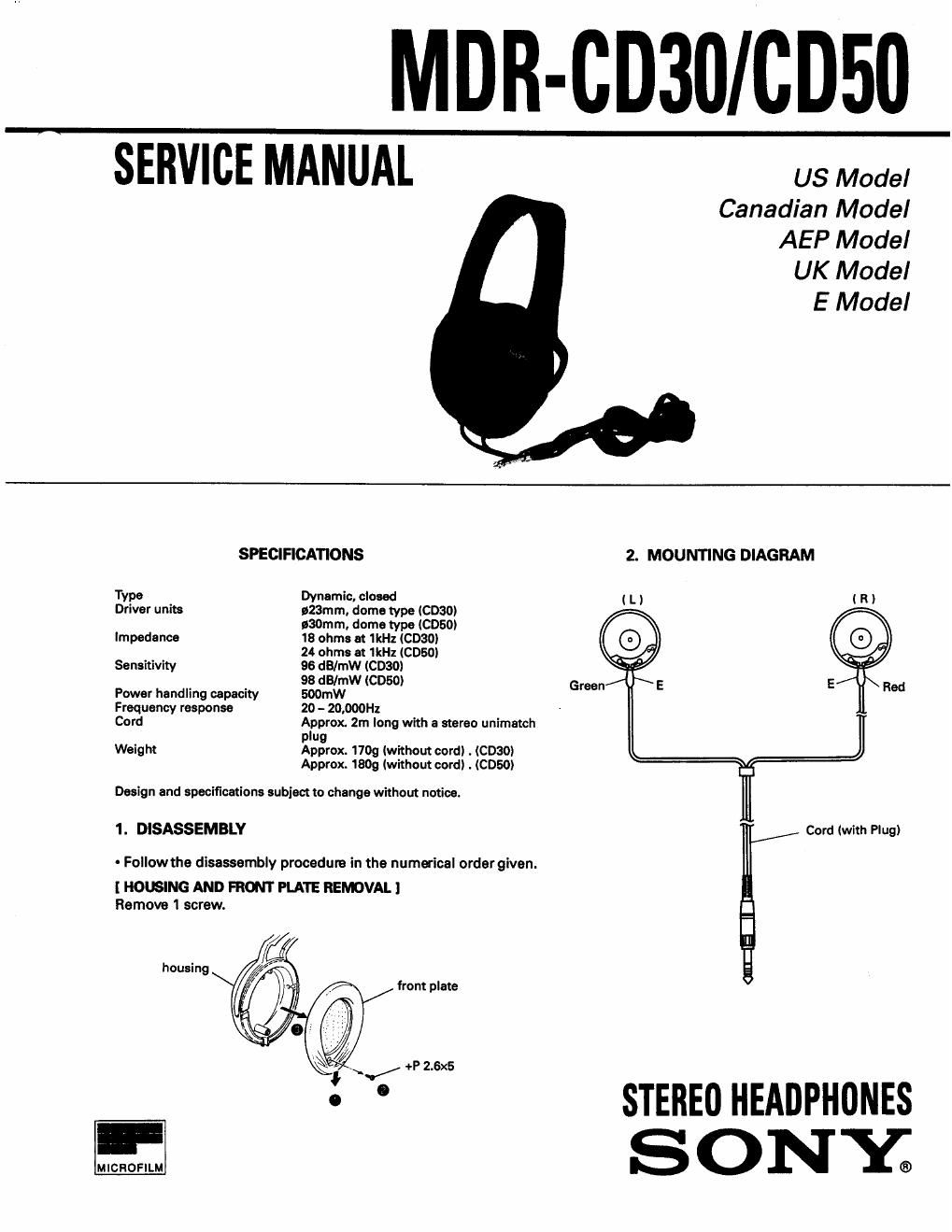

MDR-CDBII/CDSO
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICA'HONS
Type Dynamic, cloned
Driver units 923mm, dame type (CD30)
uaomm, dome type (CD50)
Impedance 18 ohms at 1kHz (CD30)
24 ohms at (Hz (CD50)
Sensitivity 96 dB/mW (CD30)
98 :1me (CD50)
Power handling capacity SDOmW
Frequency response 20 - 20.000Hz
Cord
Weig ht
Approx. 2m long with a stereo unimatch
plug
Approx. 1709 (without cord) . (CD30)
Approx. 1809 (without cord) . (CDSO)
Design and specifications subject to change without notice.
1. DISASSEMBLY
~ Followthe disassembly procedum in the numerical ordergiven.
I HOUSING AND FRUIT PLATE REWVAL I
Remove 1 screw.
housing
MICROFILM
front plate
+P 2.6X5
2. MOUNTING DIAGRAM
Cord (with Plug)
STEREO HEADPHONES
SONE
