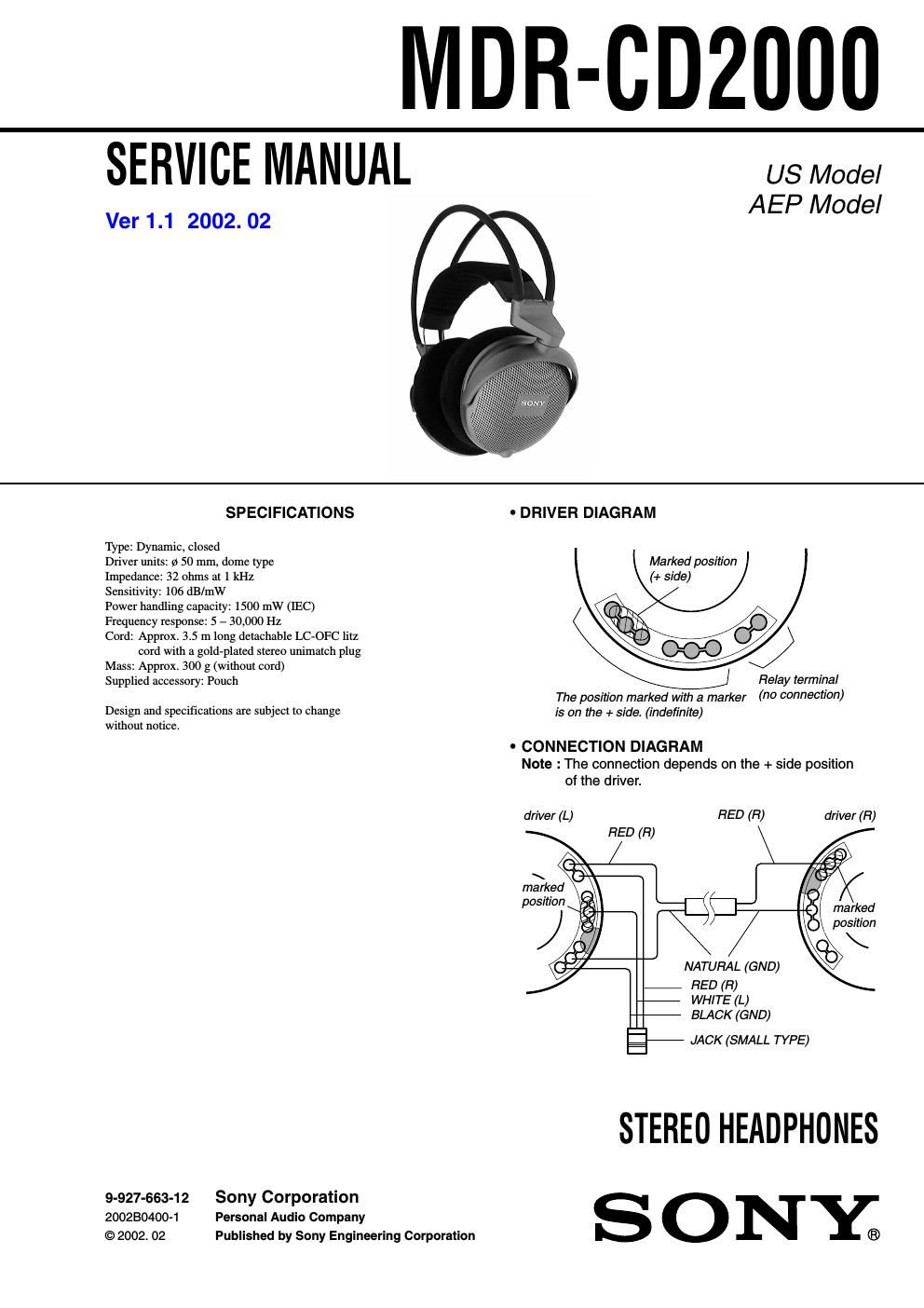

Sony mdr cd 2000 service manual
This is the 4 pages manual for sony mdr cd 2000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr cd 2000 service manual (Ocr-read)
Page 1
– 2 – 1 2 3 4 4 6 6 7 9 1011 12 13 14 1516 1718 195 20 208 -EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: -The mechanical parts with no reference number in the exploded views are not supplied. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 1 X-3379-058-1 BAND (F) ASSY, HEAD 2 X-3379-059-1 BAND (R) ASSY, HEAD 3 A-4540-623-A SUSPENDER ASSY 4 7-621-772-10 SCREW +P 2X4 5 1-792-446-11 CORD (WITH PLUG) 6 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT 7 3-045-258-01 PAD (L), EAR 7 3-046-466-01 PAD (R), EAR 8 1-506-589-11 PLUG, ADAPTOR 9 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT 10 X-3379-063-1 PLATE (L) ASSY, FRONT 10 X-3379-064-1 PLATE (R) ASSY, FRONT 11 1-542-433-11 DRIVER (050F026) 12 1-794-152-11 JACK (SMALL TYPE) 13 X-3379-061-1 HOUSING (L) ASSY 13 X-3379-062-1 HOUSING (R) ASSY14 3-047-980-01 SCREW (M3X18), +B 15 7-688-003-12 W 3, MIDDLE 16 3-045-265-01 SPACER 17 3-045-251-01 HANGER 18 3-045-245-01 HOLDER (L) 18 3-045-246-01 HOLDER (R) 19 3-045-249-01 CHASSIS (L) 19 3-045-250-01 CHASSIS (R) 20 3-713-791-51 SCREW (M1.7X3.5), TAPPING, P2 ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 3-045-848-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,GERMAN,SPANISH, ITALIAN,PORTUGUESE,RUSSIAN) 4-985-107-11 POUCH Ver 1.1
