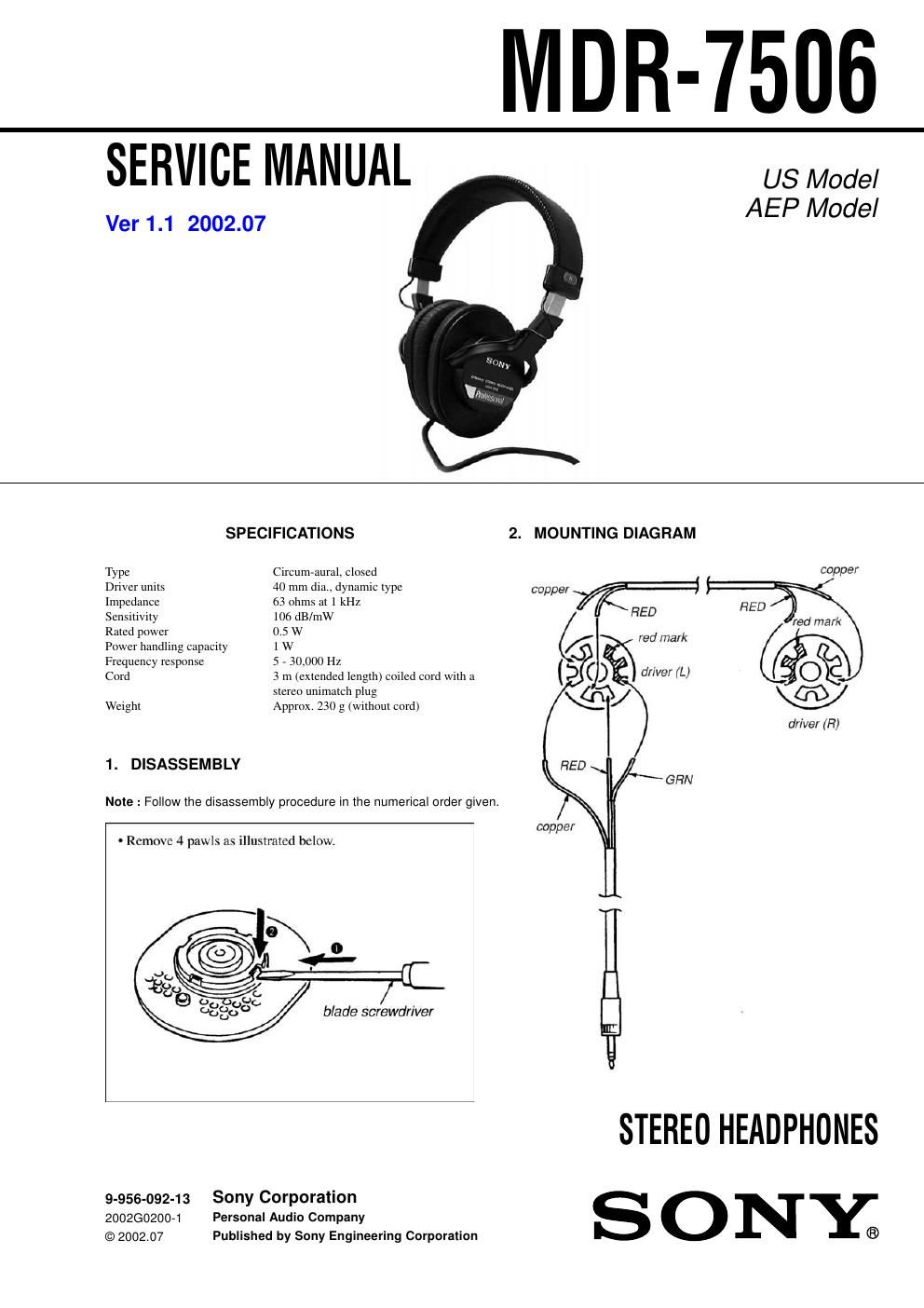

Sony mdr 7506 service manual
This is the 4 pages manual for sony mdr 7506 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr 7506 service manual (Ocr-read)
Page 1
2 MDR-7506 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: - -XX, -X mean standardized parts, so they mayhave some differences from the original one. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. - Hardware (# mark) list and accessories are given in the last of this parts list. 3. EXPLODED VIEWSVer 1.1 2002.07 1 X-2113-124-1 PAD ASSY, EAR 2 2-113-129-01 STOPPER, DRIVER *4 2-113-152-02 REGISTER, FRONT *5 2-113-140-01 PLATE, FRONT 6 2-113-137-01 BUSHING 7 X-4941-333-1 HOUSING (LEFT) ASSY 8 X-4941-334-1 HOUSING (RIGHT) ASSY 9 2-113-133-11 HANGER (RIGHT) 10 2-113-132-11 HANGER (LEFT) 11 2-113-134-11 CASE, HINGE 12 7-671-113-01 STEEL, BALL 3 13 2-113-146-01 SPRING, COMPRESSION 14 X-2113-116-1 CASE (LEFT) ASSY, CLICK *15 2-113-122-01 BAND, HEAD 16 X-2113-112-1 CUSHION ASSY, HEAD *17 2-113-124-11 LID (LEFT), CLICK CASE 18 X-2113-101-1 SLIDER (LEFT) ASSY 19 2-113-123-11 LID, HINGE CASE 20 2-113-130-11 LID (LEFT), HANGER 22 7-685-235-19 SCREW +KTP 2.6X10 TYPE2 SLIT 23 7-685-232-19 SCREW +KTP 2.6X5 TYPE2NON-SLIT 24 X-2113-102-1 SLIDER (RIGHT) ASSY 25 X-2113-115-1 CASE (RIGHT) ASSY, CLICK *26 2-113-125-11 LID (RIGHT), CLICK CASE 27 2-113-131-11 LID (RIGHT), HANGER 28 2-113-149-01 RING, URETHANE 29 1-580-792-21 CORD (WITH PLUG) 30 1-542-491-11 DRIVER (040F001P) 31 1-506-589-11 ADAPTOR, PLUG ****************************************************** ACCESSORIES********** 2-113-147-11 CASE, SOFT
Page 2
3 MDR-7506 MEMO
