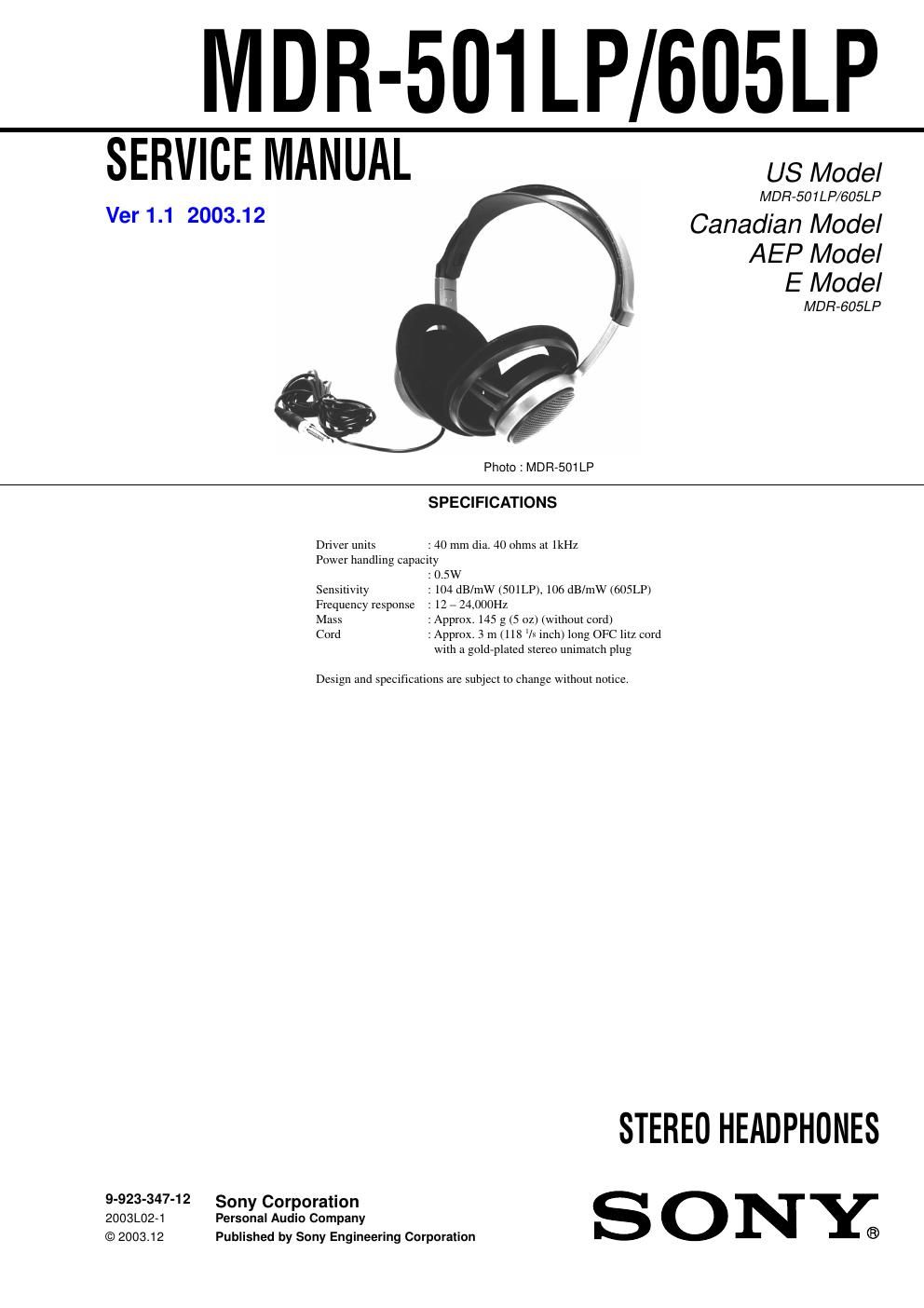

sony mdr 501 lp service manual

Extracted text from sony mdr 501 lp service manual (Ocr-read)


Page 1

– 2 – NOTE : -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. -The mechanical parts with no reference number in the exploded views are not supplied. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 14-900-124-01 PAD (B), EAR (605LP) 14-900-126-01 PAD (B), EAR (501LP) 24-967-003-21 PAD, EAR 31-505-967-11 DRIVER ASSY (501LP) 3X-4950-156-1 DRIVER ASSY (605LP) *44-900-123-01 FRAME 54-900-125-01 SCREW, STEP 64-900-120-01 LID (L), SLIDER 64-900-121-01 LID (R), SLIDER 77-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT84-900-118-01 SLIDER (L) 84-900-119-01 SLIDER (R) 94-900-127-01 SPRING, TENSION 10 4-900-122-01 CAP, HOUSING 11 4-900-116-01 BAND, HEAD 12 4-900-117-01 SUSPENDER 13 1-783-564-11 CORD (WITH PLUG) 14 1-506-589-11 PLUG ADAPTOR 15 1-783-565-12 CORD 1 2 34 5 6 78 9 101112 13 14 15 Ver 1.1

Page 2

– 3 – MEMO
