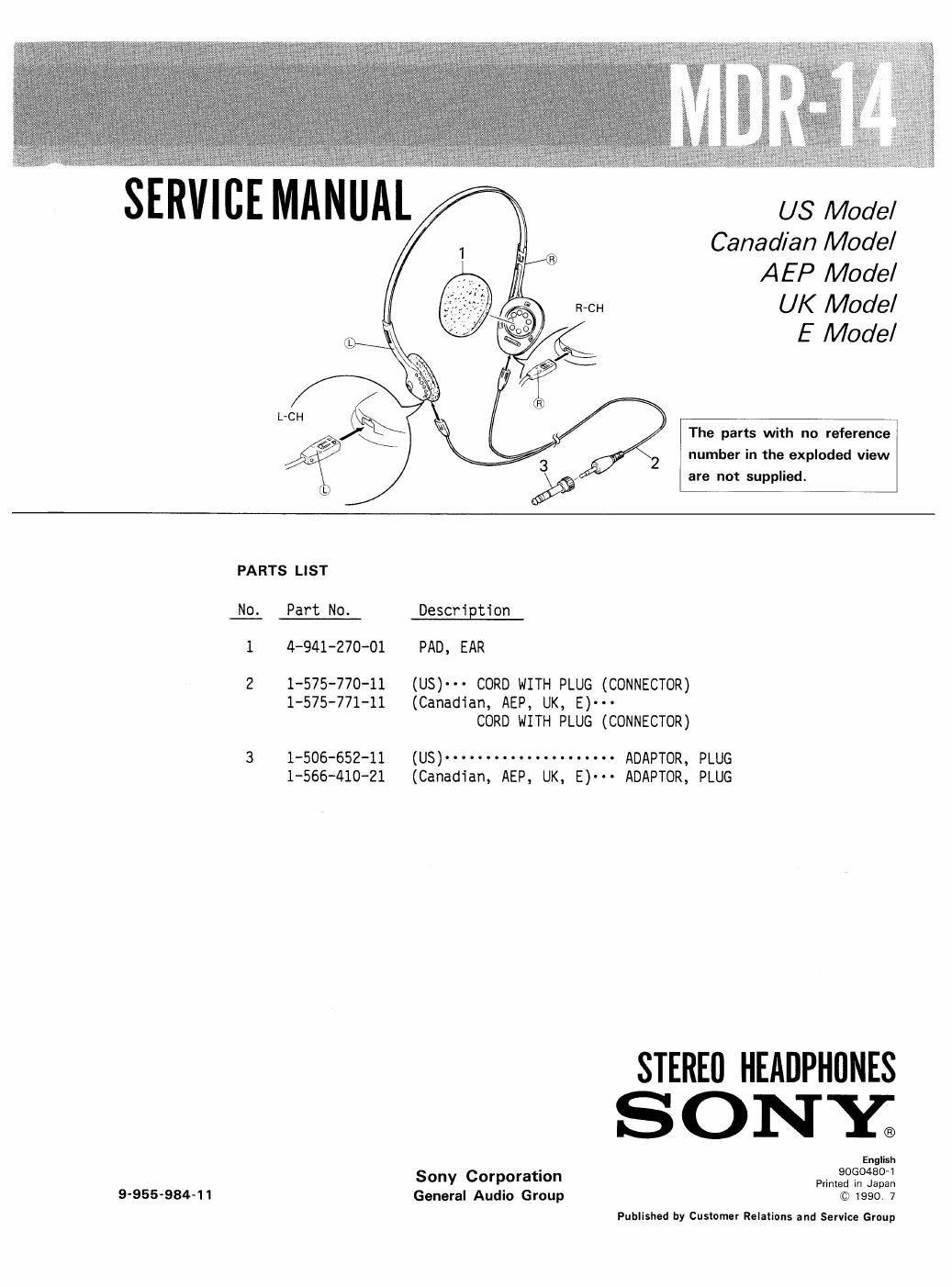

SERVICEMANUAL W
Canadian Model
,lllEit Ibitycikal
\ R-CH UK Mode/
§;;;;> l? ll427ciea/
LPC H
The parts with no reference
number in the exploded view
are not supplied.
3 2
PARTS UST
No. Part No. Description
1 4-941-270-01 PAD, EAR
2 1-575-770-11 (US)--- CORD WITH PLUG (CONNECTOR)
1-575-771-11 (Canadian, AEP, UK, E)---
CORD WITH PLUG (CONNECTOR)
3 1-506-652-11 (US). --------------- ..... ADAPTOR, PLUG
1-566-410-21 (Canadian, AEP, UK, E)--- ADAPTOR, PLUG
STEREO HEADPHONES
S 0 NE
English
- 90G0480-1
Sony Corporatlon Printed in Japan
9-955-984-11 General Audio Group © 1990. 7
Publlshed by Customer Relations and Service Group
