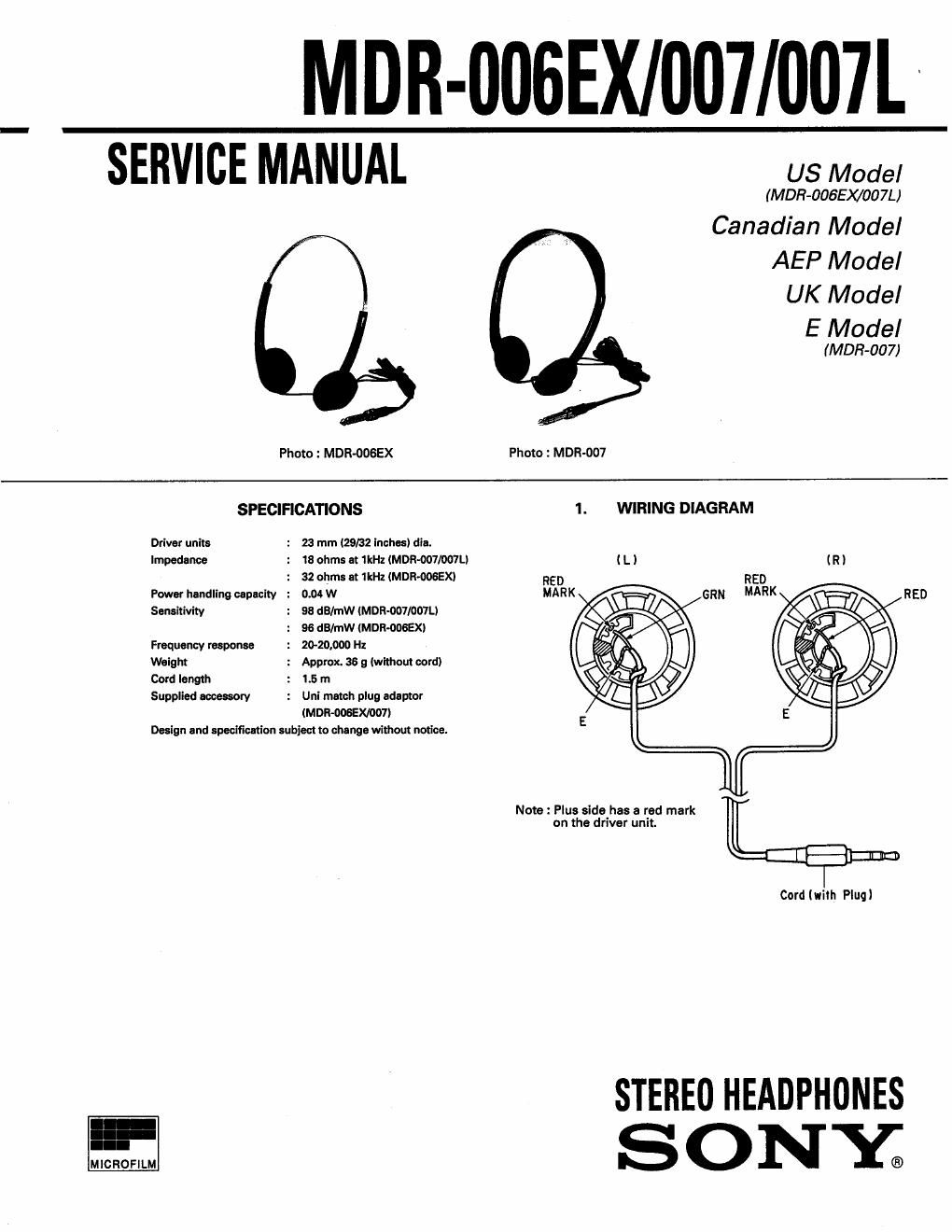

Sony mdr 007 l service manual
This is the 2 pages manual for sony mdr 007 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdr 007 l service manual (Ocr-read)
Page 2
MDR-OOSEX/007I007L
2. EXPLODED VIEW AND PARTS UST
NOTE:
- -XX. -X moan etandardized parts. so they - items marked "" are not stocked slncothay are
may have some differences from the original seldom required for rouiino service. Some do-
one. lay should be anticipated when ordering these
- Color indication of Appearance Pane items.
Example: - The mechanical pom with no relerenoo hum
KNOB, BALANCE(WH+TE)..JR$D) bet in he exploded views are not supplied.
Pans color Cabinet's color
MDR-007/007L
not supplied not supplied
«4% s N) 4%
l 1-505-067-11 DRIVER (023F011)(006EX)
I 14505-11441 DRIVER (HEADPHONE)(007/007L)
2 2-122-730-21 PAD. EAR
3 1'559-243-11 CORD (WITH PLUS)
4 1-506-652-11 ADAPTOR. PLUG (006EX/007)
English
. Sony Corporation . 92.519864
995749341 Printed In Japan
General Audio Group © 1992.5
-' 2 - Published by Customer Relations and Service Group
