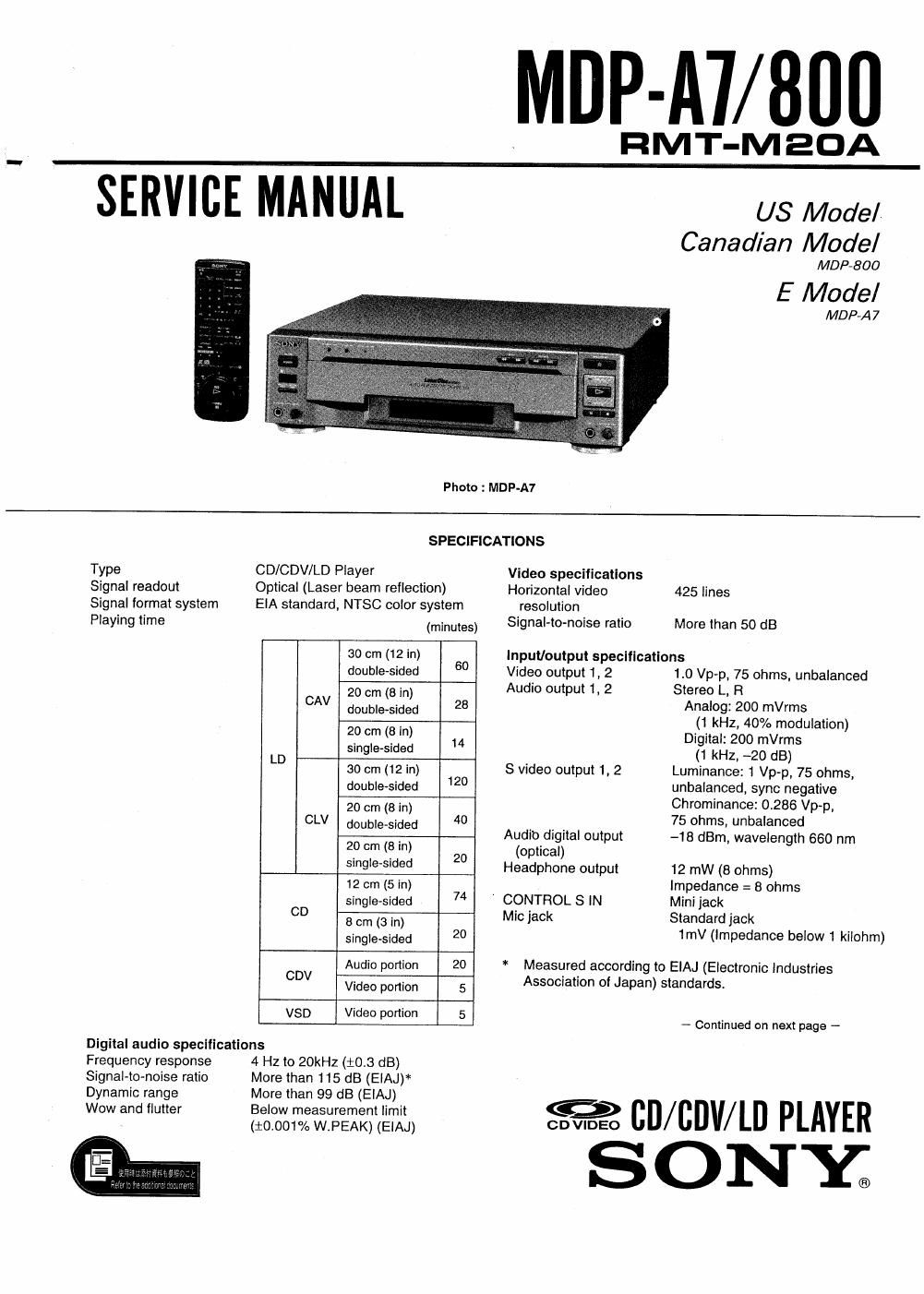

Sony mdp a 7 service manual

Page 2

Power requirements

Power requirements 120V AC 60 Hz
(MDP-BOO)
120/220/240 V AC
adjustable. 50/60 Hz
(MDP-A7)
Power consumption 45 W
Mass 10 kg (22 lb)
Dimensions Approx. 430 x 120 x
429 mm
(w/h/d)
(17 x 43/4 x 17 in.)
Operating temperature +5°C to +35 °C
Ambient humidity 5% to 90%

Remote Commander RMT-MZOA

Principle of operation infrared pulse
Power requirements 3 V DC (2 size AA
batteries)
Dimensions Approx. 68 x 38.5 x 200
mm
(w/h/d)
(23/4 x 19/15 x 77/3 in.)
Mass Approx. 200 g (7 oz)

(including batteries)

Supplied accessories

Remote Commander RMT-M20A (1)

Size AA (R6) batteries (2)

AudioNideo cable (phono plug Sephono plug 3) (1)
AC power cable (1) (MDP-BOO only)

AC plug adaptor (t) (MDP-A7 only)

Design and specifications are subject to change
without notice.

SA FETYvRELATED COMPONENT WARNING! I

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

Les COMPOSANTS Ioeu'nelés PAR uue MAROUE A
sun Les DIAGRAMMES SCHEMATIOUES er LA LISTE
DES PIECES som CRITIQUES Poun LA secumre
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS oue PAR oes Pieces sonv DONT Les
NUMEROS sour DONNES DANS ce MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.

WARNING II
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.

CAUTION:

The use of optical instrument with this product will
increase eye hazard.

CAUTION

Use of controls or adjustments or performance
of procedUres other than those specified herein
may result in hazardous radiation exposure.
