Sony mdp a 600 k service manual

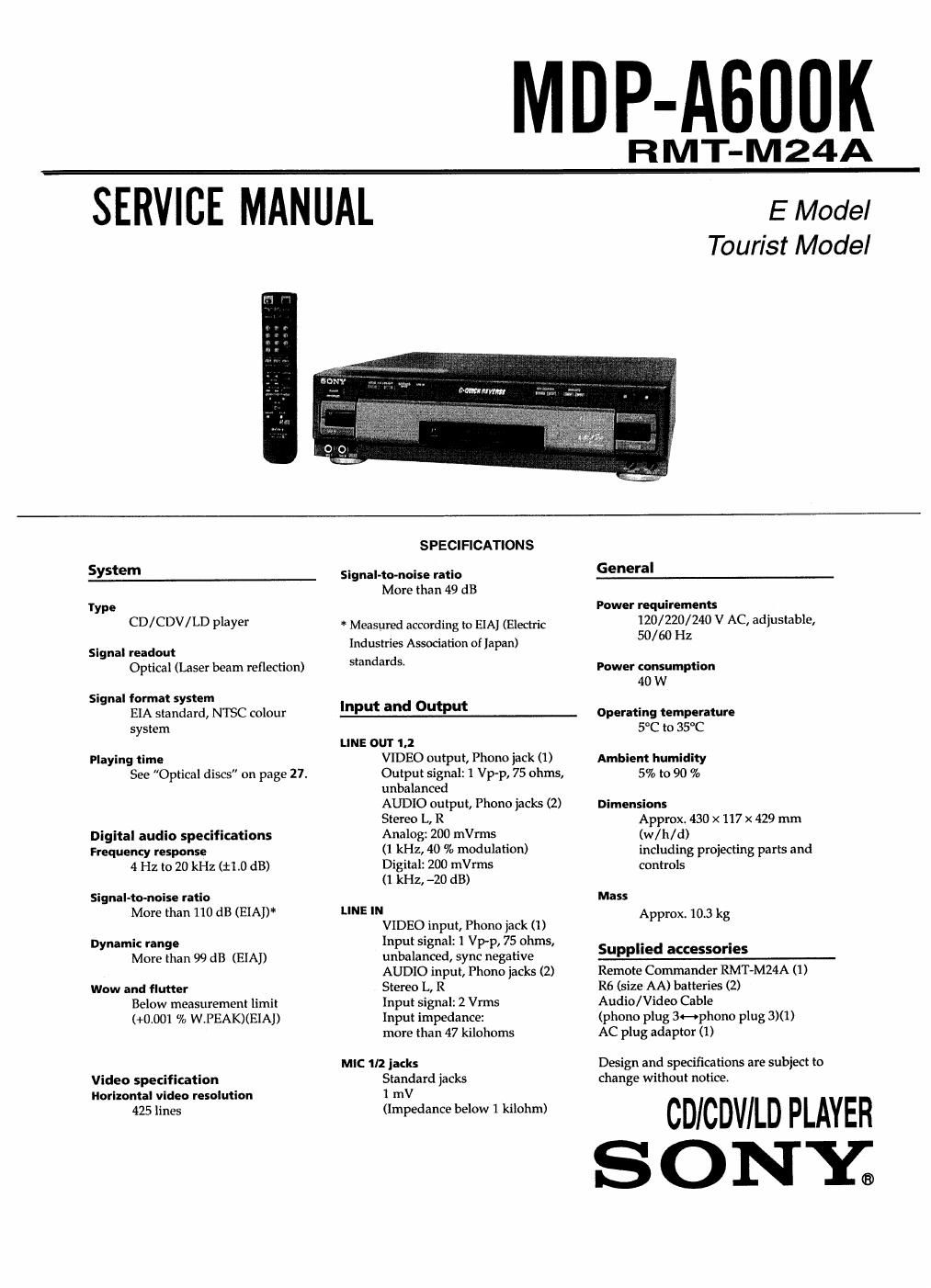

Page 1

MDP-ABUUK

SERVICE MANUAL

n-nmmm,

RMT-M24A

E Model
Tourist Model

System

Type
CD/CDV/LD player

Signal readout
Optical (Laser beam reflection)

Signal format system
EIA standard, NISC colour
system

Playing time
See "Optical discs" on page 27.

Digital audio specifications
Frequency response
4 Hz to 20 kHz (11.0 dB)

signal-to-noise ratio
More than 110 dB (EIAI)*

Dynamic range
More than 99 dB (EIAI)

Wow and flutter
Below measurement limit
(+0001 % W.PEAK)(EIA})

Video specification
Horizontal video resolution
425 lines

SPECIFICATIONS

Signal-to-noise ratio
More than 49 dB

Measured according to EIA] (Electric
Industries Association of Japan)
standards.

Input and Output

LINE OUT 1.2
VIDEO output, Phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced
AUDIO output, Phono jacks (2)
Stereo L, R
Analog: 200 mes
(1 kHz, 40 % modulation)
Digital: 200 mVrms
(1 kHz, -20 dB)

LINE IN
VIDEO input, Phono jack (1)
Input signal: 1 Vp~p, 75 ohms,
unbalanced, sync negative
AUDIO input, Phono jacks (2)
Stereo L, R
Input signal: 2 Vrms
Input impedance:
more than 47 kilohoms

MIC 111 jacks
Standard jacks
1 mV
(Impedance below 1 kilohm)

General

Power requirements
120/ 220/ 240 V AC, adjustable,
50/60 Hz

Power consumption
40 W

Operating temperature
5°C to 35°C

Ambient humidity
5% to 90 %

Dimensions
Approx. 430 X 117 x 429 mm
(w/ h / (:1)
including projecting parts and
controls

Mass
Approx. 10.3 kg

Supplied accessories

Remote Commander RMT-M24A (1)
R6 (size AA) batteries (2)

Audio/ Video Cable

(phono plug 3thono plug 3X1)
AC plug adaptor (1)

Design and specifications are subject to
change without notice

CDI ICDV/LD PLAYER
S ONY

Page 2

Check that you have the following items:

0 Remote commander

0 Two R6 (size AA) batteries

WARNING

To prevent fire or shock hazard, do not expose the unit

to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer

servicing to qualified personnel only.

This CD CDV LD Player is classified as a CLASS 1
LASER product.

0 AC plug adaptor

we?

CAUHON

The use of optical instmments with the product
will increase eye hazard.

As the laser beam used in this player is harmful to
the eyes, do not attempt to disassemble

the cabinet. Refer servicing to qualified personnel
only.

- AudioNideo cable

Operating voltage
- Before operating the player, make sure that the

operating voltage of your unit is identical with that
of your local power supply. If necessary, reset the
selector at the rear of the player to the voltage
corresponding to your local power supply (120, 220
or 240 volts AC). The voltage selector of this unit is
set to 220 V AC originally. When using in Malaysia,
reset the selector to 240 V AC.

To reset the voltage selector, disconnect the mains
lead and turn the selector with a blade screwdriver
so that the arrow on the rear panel points to the
appropriate voltage.

a

\

J

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK [A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
