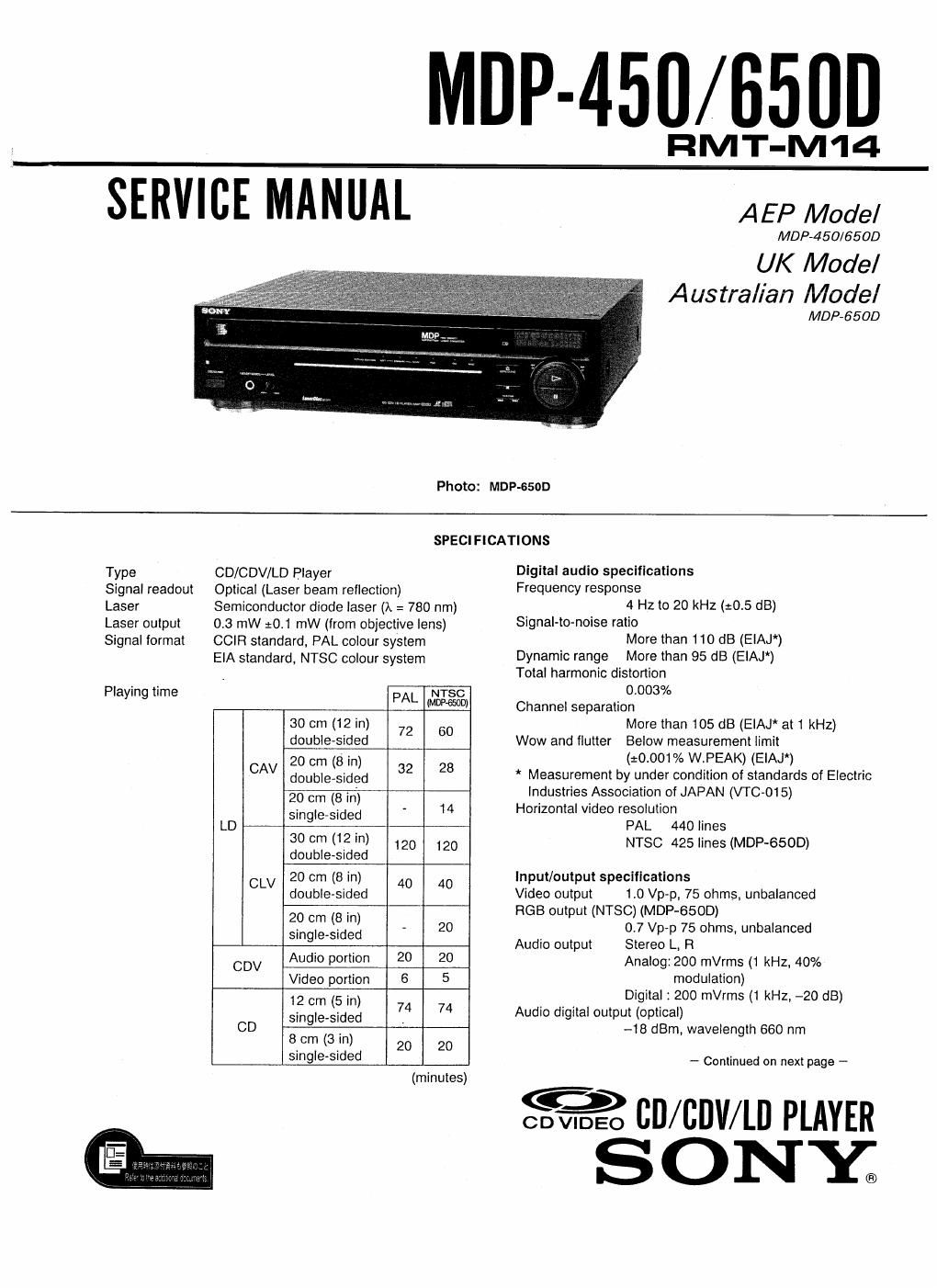

Sony mdp 650 d service manual
This is the 108 pages manual for sony mdp 650 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdp 650 d service manual (Ocr-read)
Page 2
Headphone output
28 mW (32 ohms), Impedance = 8 ohms
input
Mini jack
Power requirements
Model for Continental Europe:
220 - 230 V AC, 50/60 HZ
Model for the United Kingdom
and Austraria: (MDP-65OD)
240 V AC, 50/60 Hz
CONTROL S IN
350D)
Power consumptions
MDP~450 : 28 watts
MDP~650D : 38 watts
Mass MDP-450 : Approx. 8.3 kg
MDP-GSOD 2 Approx. 8.5 kg
Dimensions Approx. 430 x 115 x 410 mm (w/h/d)
Operating temperature
+5°C to +35°C
Ambient humidity 5% to 90%
Remote Commander RMT-M14
Remote control system
Infrared control
Power requirements
3V DC, (2 IEC R6 (size AA) batteries)
Approx. 68 x 38 x 200 mm (w/h/d)
Approx. 1759 (including batteries)
Dimensions
Mass
Supplied accessories
Remote Commander RMT-M14 (1)
IEC R6 (size AA) batteries (2)
Design and specifications are subject to change without
notice.
SAFETYARELATEO COMPONENT WARNING! l
COMPONENTS |DENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
To prevent tire or shock hazard, do not expose the unit to
rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Laser component in this product is capable of emitting
radiation exceeding the limit lor Class 1,
This CD CDV LD player is
classified as 3 CLASS 1
LASER product,
The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.
CLASS I LASER PRODUCT
LASER KLASSE I
LUOKAN I LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION INVISIBLE LASER RADIATION WHEN oven ANn
INVEHLOCKS DEFEArEo AVOID EXPOSURE ro BEAM
ADVARSEL USYNLIG LAsEnsrnAuNo vso Ammo NAB
SIKKEHHEDSAFDRVDERE ER uos AF Fuuxnow uNooA uosAE I'TELSE
FDR srnAuNo
VORSICHT UNSICHYBARE IASERS'IRAHLUNG WENN
ABDECKUNG GEOFFNET UND SICHEHEITSVEHWEGELUNG
UBERERUCKT NICHT DEM srRAHL AUSSEIZEN
VARO' AvAtrAEsa JA suomwmus oHIvEI TAEsSA OLE! ALTIIINA
NAKYMATTOMALLE msERsArEILvtLE ALA KATSO SAIEESEEN
VARNING OSYNLIG LASERSTRAUNG NAR DENNA DEL AR OPPNAD
OCH PARREN AR URKOPFLAD aErHAKrA EJ smALEN
ADVERSEL ustuG LASERSIRALING MAR DEKSEL APNES oo
SiKhERHEDSLAS BRVTES UNNGAEXSPONERING ron smAtEN
\
This label is located on the top cover and inside of the unit.
