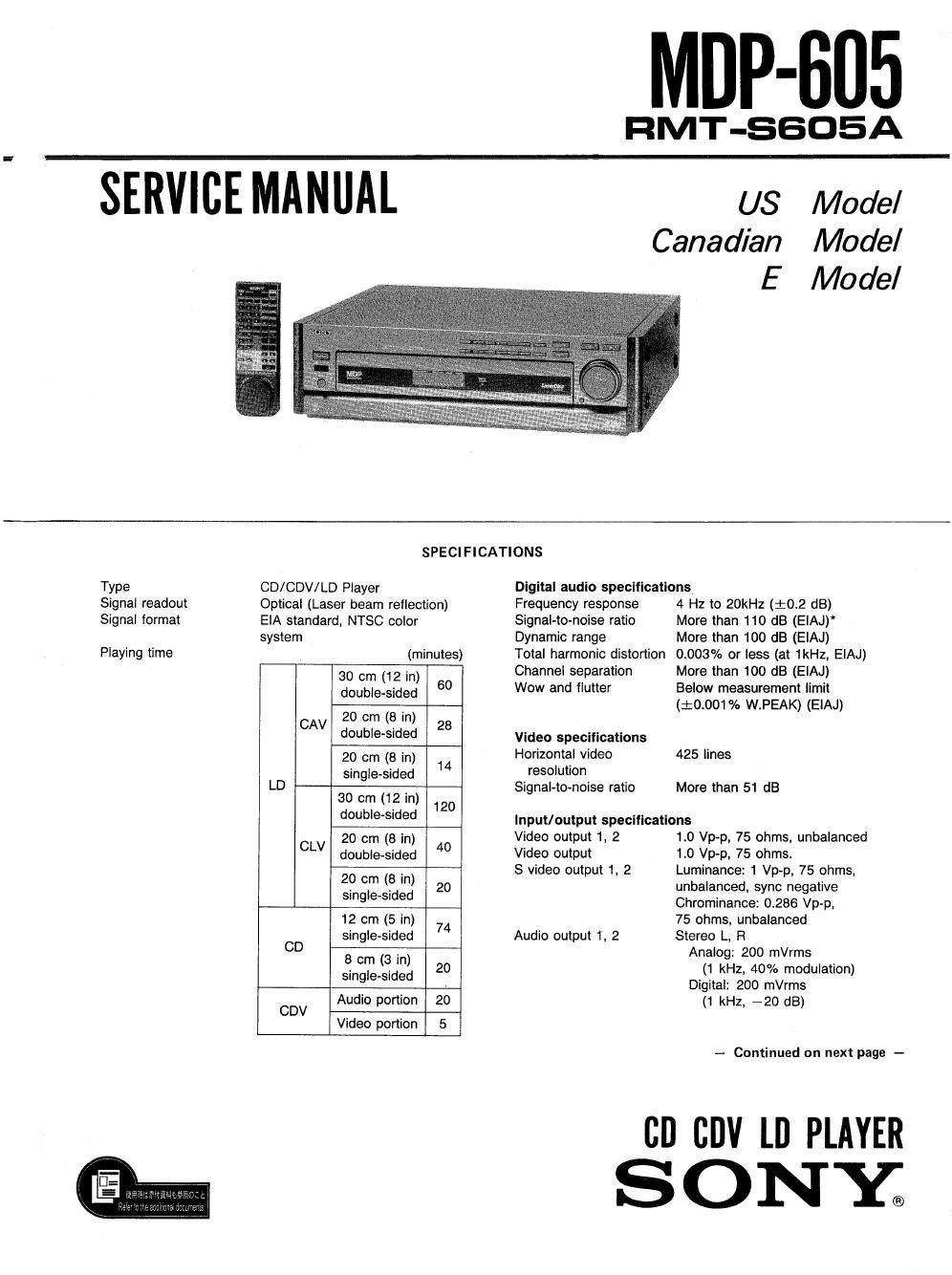

Page 1

MDP-605

EMT-5605A

SERVICE MANUAL us Model

Canadian Model
E Model

SPECIFICATIONS
TYPE CD/CDV/LD Player Digital audio specifications~
Signal readout Optical (Laser beam reflection) Frequency response 4 HZ 0 ZOKHZ (10-2 dB)
Signal format ElA standard, NTSC color Signal-to-noise ratio More than 110 dB (EIAJ)"
system Dynamic range More than 100 dB (EIAJ)
Playing time (minutes) Total harmonic distortion 0.003% or less (at 1kHz, EIAJ)
30 cm (12 in) Channel separation More than 100 dB (EIAJ)
_ ~ 60 Wow and flutter Below measurement limit
double Sided
20 (8 ) (i0.001% W.PEAIQ (EIAJ)
cm In
CAV . 28
double-Sided Vldeo specifications
20 cm (8 in) Horizontal video 425 lines
single-sided 14 resolution
LD , Signal-to-noise ratio More than 51 dB
30 cm (12 In) 120
double-Sided Input/output specifications
C 20 cm (3 in) Video output 1, 2 1.0 Vp~p. 75 ohms, unbalanced
LV double-sided 40 Video output 1.0 Vp-p. 75 ohms.
I 8 video output 1, 2 Luminance: 1 Vp-p, 75 ohms,
29 clrn (31": 20 unbalanced. sync negative
5mg e-sr e Chrominance: 0.286 Vp-p,
12 cm (5 in) 74 75 ohms, unbalanced
single-sided Audio output 1. 2 Stereo L, Fl
CD I Analog: 200 mVrms
8 cm (3 m) o -
singlelsided 20 (1 kHz, 40 /o modulation)
1 Digital: 200 mVrms
Audio ortion 20 1 kH , -20 dB
cov p ( Z )
Video portion 5

- Continued on next page -

on cnv LD PLAYER
SONY;

Page 2

Audio output Monaural (only for FiFU adaptor)
MIX output: 77.5 mVrms (1 kHz.
-20 dB)

Audio digital output -18 dBm. wavelength 660 nm

(optical)
FtFU DC output Mini mini Jack DC 5 V
CONTROL S IN Mini iack (1)

Power requirements

Power requirements 120 V AC, 60 Hz

Power consumption 52 W
Weight 13.1 kg
Dimensions Approx. 430 X 141 x 446 mm

(w/h/d)
(17 X 41/2 X 179/"; inches)
Operating temperature +5°C to +35C
Ambient humidity 5 to 90%
Measured according to EIAJ (Electronic industries Association of
Japan) standards.

Remote Commander
Principle of operation
Power requirements

Infrared pulse
3 V DC (2 Size AA batteries)

Dimensions Approx. 62 X 44.5 X 185 mm
(w/h/d)
(27/15 X 113/"; X 73/3 inches)
Weight Approx. 170 9 (including
batteries)

| Supplied accessories

Flemote Commander RMT-SGOSA (1)

Size AA (R6) batteries (2)

FiFU adaptor FiFU-90 U0 (1)

Video connecting cord (phone plug 1 a phono plug 1) (1)
Audio connecting cord (phono plug 2 e» phono plug 2) (1)
Operating Instructions

Design and specifications are subject to change without
notice.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or
poorly-soldered connections. Check the entire
board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no
wires are pinched or contact high-wattage
resistors.

3. Look for unauthorized replacement parts, par-
ticularly transistors, that were installed during a
previous repair. Point them out to the customer
and recommend their replacement.

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

4. Look for parts which, though functioning, show
obvious signs of deterioration. Point them out
to the customer and recommend their replace-
ment.

5. Check the B+ voltage to see it is at the Values
Specified.

ATTENTION Au COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IoENTIPIEs PAR UNE MAROUE A
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES com-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNEs DANS CE MANUEL ou
DANS LES SUPPLEMENTS PusLiEs PAR SONY.
