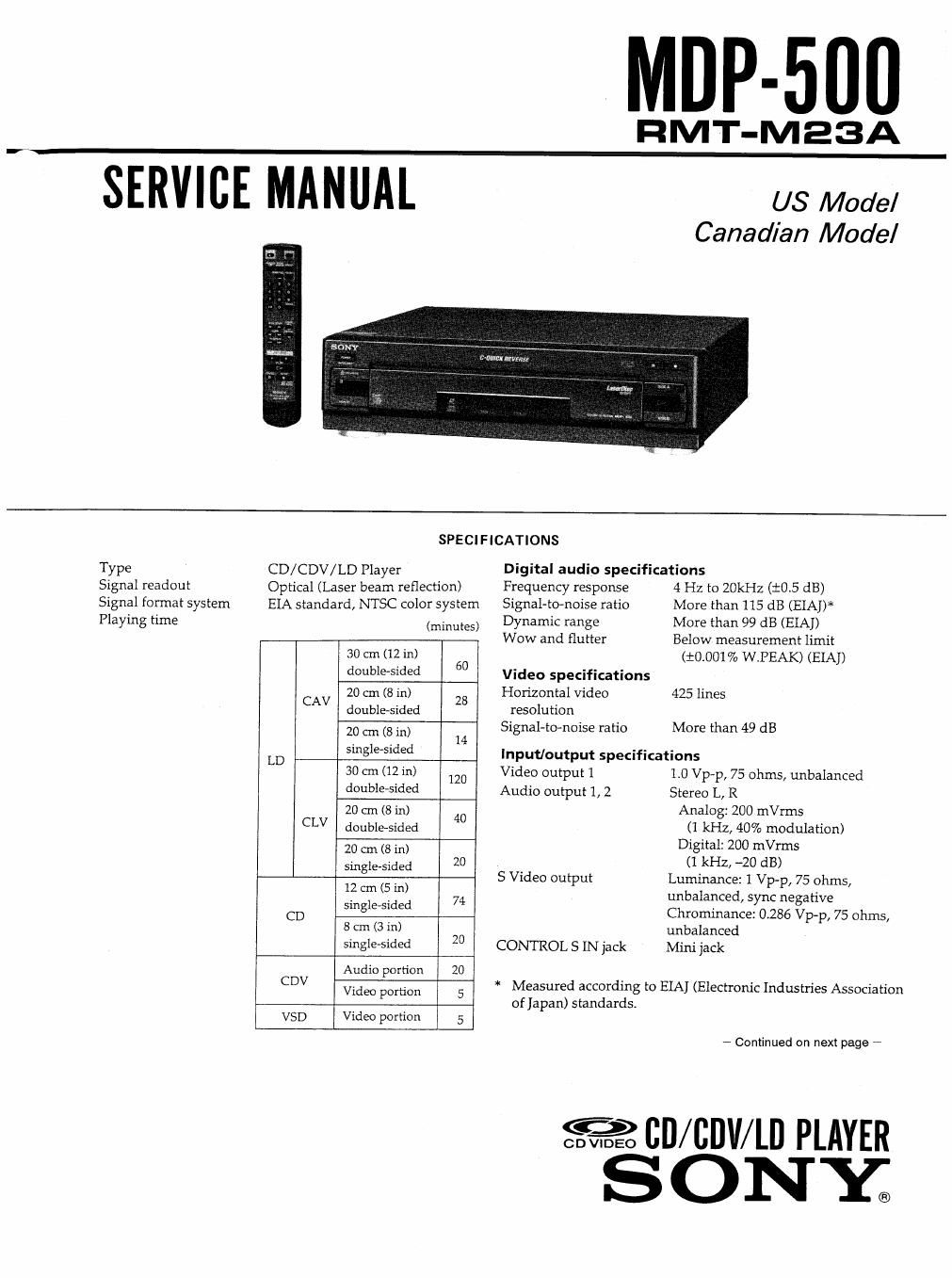

Page 1
SERVICE MANUAL
MOP-500
RMT-M23A
US Model
Canadian Model
Type
Signal readout
Signal format system
Playing time
SPECIFICATIONS
CD/CDV/LD Player
Optical (Laser beam reflection)
EIA standard, NT SC color system
(minutes)
30 cm (12 in)
double-sided 6°
20 cm (8 in)
28
CAV doublersided
2-0 cm (84 in) 14
D Single-Sided
L 30 cm (12 in) 120
doubleasided
20 Cm (8 in) 40
CLV double-sided
20 Cm (8 in)
single-sided 20
12 cm (5 in)
singlevsided 74
CD ,
8 cm (3 in)
single-sided 20
Audio portion 20
CDV . _
Video portion 5
VSD Video portion 5
Digital audio specifications
Frequency response 4 Hz to 20kHz (i015 dB)
Signal-to-noise ratio More than 115 dB (EIAD*
Dynamic range More than 99 dB (EIAJ)
Wow and flutter Below measurement limit
(i0.001% W.PEAK) (ElAJ)
Video specifications
Horizontal video 425 lines
resolution
Signal-to-noise ratio More than 49 dB
Input/output specifications
Video output 1 1.0 Vp-p, 75 ohms, unbalanced
Audio output 1, 2 Stereo L, R
Analog: 200 mVrms
(1 kHz, 40% modulation)
Digital: 200 mVrms
(1 kHz, -20 dB)
Luminance: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance: 0,286 Vp-p, 75 ohms,
unbalanced
Mini jack
S Video output
CONTROL s [N jack
* Measured according to EIAJ (Electronic Industries Association
of Japan) standards.
- Continued on next page -
«32 cn/cnwin PLAYER
SONY®
