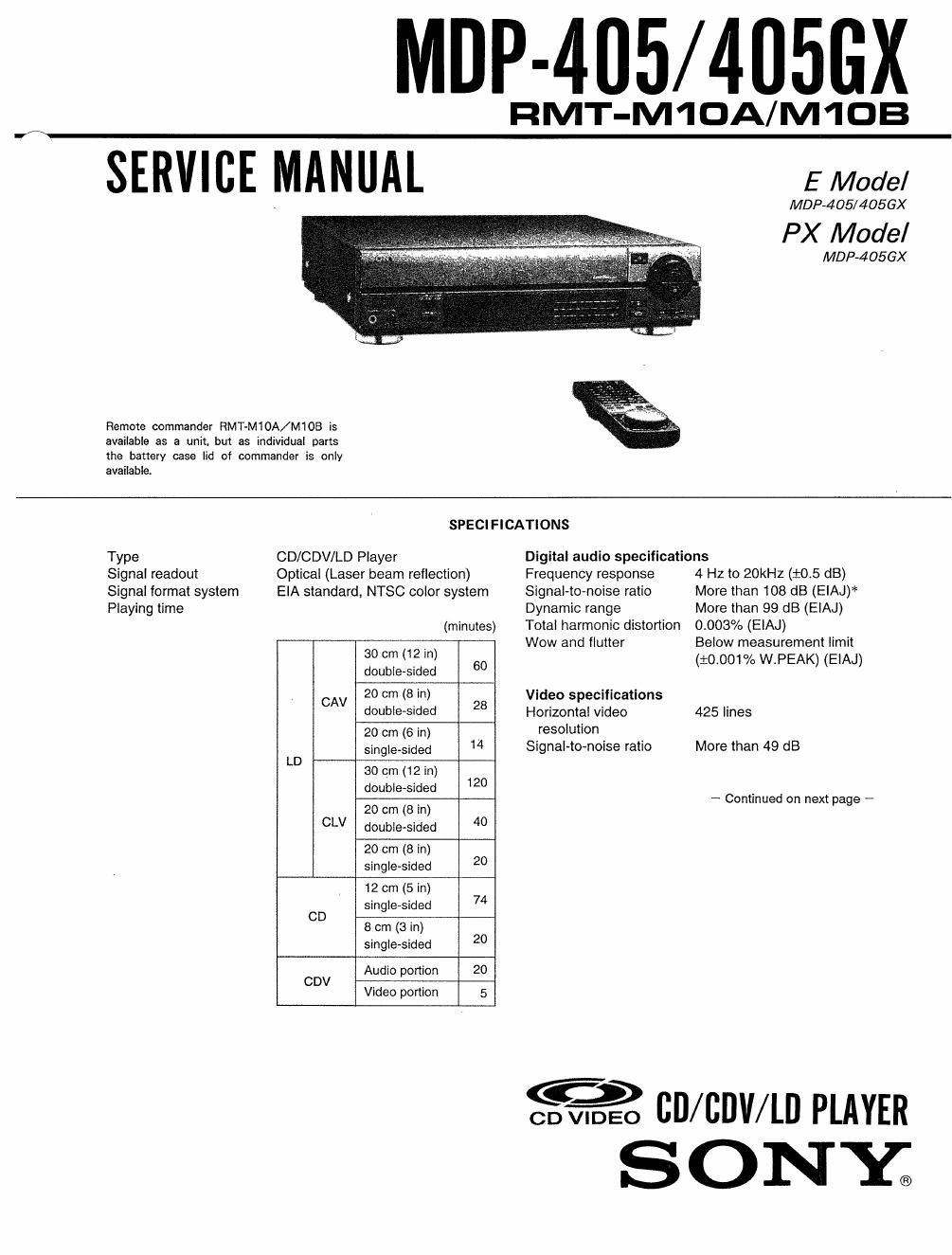

MDP-405/4056X

FIMT-MIDA/MIDB

SERVICE MANUAL EMoae/

MDP-405/405GX
PX Model
MDP-405GX
Remote commander RMT~M10A/M108 is
available as a unit, but as individual parts
the battery case lid of commander is only
available.
SPECIFICATIONS
Type CD/CDV/LD Player Digital audio specifications
Signal readout Optical (Laser beam reflection) Frequency response 4 Hz to 20kHz (10.5 dB)
Signal format system EIA standard, NTSC color system Signalto-noise ratio More than 108 dB (EIAJ)*
Playing time Dynamic range More than 99 dB (EIAJ)
(minutes) Total harmonic distortion 0003% (EIAJ)
Wow and flutter Below measurement limit
3" °" (1? m) 60 (:o.oo1% W.PEAK) (ElAJ)
double-Sided
CAV 20 cm (8 in) Video specifications
double-sided 28 Horizontal video 425 lines
20 cm (6 in) resolution
single-sided 14 Signaivto-noise ratio More than 49 dB
LB 30 cm (12 in)
doubleesided 120
. - Continued on next page -
20 cm (8 In)
CLV double-sided 4°
20 cm (8 in)
single-sided 20
12 cm (5 in)
single-sided 74
co .
8 cm (3 In)
single-sided 20
Audio portion 20
CDV . _
Video portion 5

SEE-7% cn/cnwin PLAYER

SONY®

Page 2

lnpufloutput specifications
Video output 1, 2 1.0 Vp-p, 75 ohms, unbalanced
Audio output 1, 2 Stereo L, R
Analog: 200 mVrms
(1 kHz, 40% modulation)
Digital: 200 mVrms
(1 kHz, -20 dB)
Luminance: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance: 0.286 Vp-p,
75 ohms, unbalanced
--18 dBm, wavelength 660 nm

S video output

Audio digital output
(optical)

Headphone output 28 mW (:32 ohms)

Impedance = 8 ohms

75 ohms, unbalanced

Channel 3 or 4 (switchable)

(PX Model)

VHF/UHF IN/OUT

* Measured according to EIAJ (Electronic Industries
Association of Japan) standards.

Power requirements ,
Power requirements MOP-405: 120V AC, 60 Hz
MDP-4056X :
100/120/220/240 V AC

adjustable, 50/60 Hz

MDP-4OSGX (for Malaysia)
240 V AC. 50/60 Hz
Power consumption 43 W
Weight 8.2 kg (16 lb 12 02)
Dimensions Approx. 430 x 115 x 420 mm
(w/h/d)
(17 x4/2>< 17 in)
Operating temperature +5°C to +35 °C
Ambient humidity 5% to 90%

Remote Commander RMT-M10A (E Model) /M103 (PX Model)
Principle of operation Infrared pulse

Power requirements 3 V DC (2 size AA batteries)
Dimensions Approx. 62 x 44.5 x 185 mm
(w/h/d)

(27/15 x 13/ns x 73/5 in)
Approx. 170 g (6 02)
(including batteries)

Supplied accessories

Remote Commander RMT-M10A (1)

(E Model) [M103 (1) (PX Model)

Size AA (R6) batteries (2)

Video cable (phono plug 1<~>phono plug 1) (1)
Audio cable (phono plug 2<->phono plug 2) (1)
AC plug adaptor (1)

F-type coaxial cable (1)

Design and specifications are subject to change without
notice.

WARNING II

WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.

CAUTION:

The use of optical instrument with this product will
increase eye hazard.

CAUTION

Use of contrbls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
