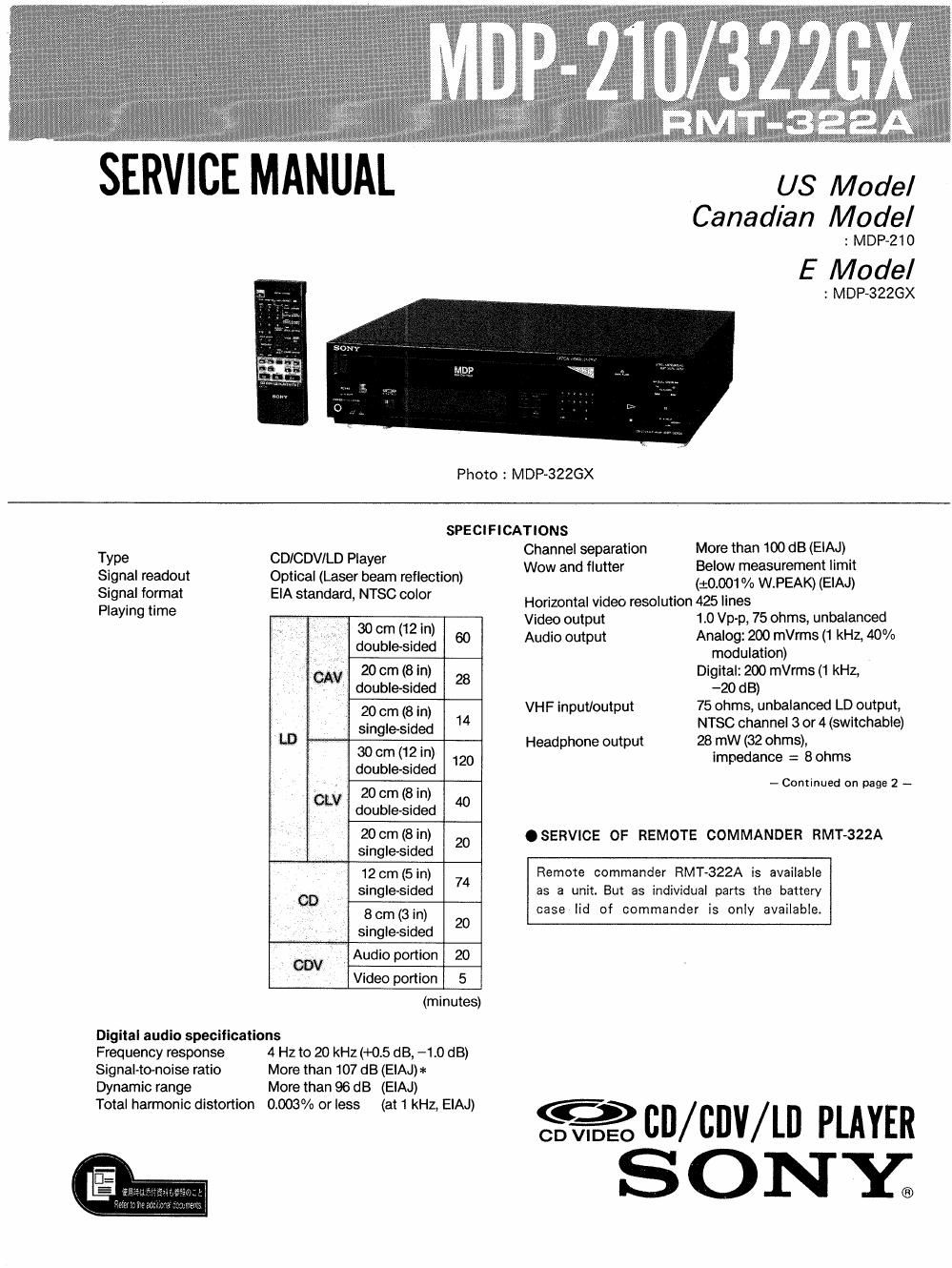

Sony mdp 210 service manual

Page 2

Power requirements MDP-210: 120 V AC, 60 Hz
MDP-322GX: 100/120l220l240 V

AC adjustable, 50/60 Hz

MDPGZZGX (tourist model):
120/220/240 V AC
adjustable, 50/60 Hz
Power consumption 40 watts
Weight Approx. 7.6 kg (16 lb 12 oz)
Dimensions Approx. 430 x 110 x 400 mm
(w/h/d)
(17 x 43/: X 153/4 Inches)
Operating temperature +5°C to +35°C
Ambient humidity 5 to 90%

a Measured according to EIAJ (Electronic Industries Association oi Japan)
standards.

Remote Commander RMT-322A

Principle of operation Infrared pulse

Power requirements 3 V DC, (2 size AA batteries)

Dimensions Approx. 62 x 20 x 175 mm
(Wlh/d)
(27/16 x 3/4 x 7 inches)
Weight Approx. 130 9 (including

batteries), (412 oz)
Supplied accessories

Remote Commander RMT322A (1)

Size AA (R6) batteries (2)

External antenna connector (for MDP<322GX only) (1)
Coaxial cable with F-type connector (1)

Video connecting cord (phono plug 1 H phono plug 1) (1)
Audio connecting cord (phono plug 2 -> phono plug 2) (1)
AC plug adaptor (for MDP-SZZGX only) (1)

Design and specifications are subiect to change without
notice.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS.MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPOSANT AVANT RAPPORT
A LA sécunirer

LES COMPOSANTS IDENTIFIES PAR one MARQUE A
sun LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES Poun LA sécunrré
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS ours PAR DES PIECES SONY DONT LES
NUMénos SDNT DONNés DANS CE MANUEL ou
DANS LES SUPPLEMENTS Pursues PAR SONY.

PRECAUTIONS

0n salety

0 Should any solid object or liquid enter the cabinet, unplug
the unit and have it checked by qualified personnel before
operating it any further.

0 Unplug the unit from the wall outlet if it is not to be used for
an extended period of time.

To disconnect a cord, pull it out by the plug. Never pull the
cord itself.

- One blade of the plug is wider than the other for the
purpose of safety and will fit into the power outlet only one
way, If you are unable to insert the plug fully into the outlet,
contact your dealer.

On installation

0 Avoid placing the player in a location subject to:
-high humidity
-high temperature
-excessive dust
«mechanical vibration
-direct sunlight

- Allow adequate air circulation to prevent internal heat
buildup. Do not place the unit on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that may block
the ventilation holes,

On moisture condensation

0 Do not operate the unit right after having transported it
from a cold location to a warm location or in a room where
the temperature rises suddenly, because moisture may
condense in the operating section of the unit. Wait for
about an hour before turning the power on in the new
location or keep the rise in room temperature gradual. If the
unit is operated with moisture condensation, the unit and
the disc may be damaged, Therefore remove the disc
immediately when there is a possibility of moisture
condensation and no picture is obtained. To evaporate the
moisture rapidly, leave the player turned on without a disc
loaded.

On operation

0 Remove the disc from the tray after playing it, if the unit will
not be used for any length of time. Do not transport the set
with a disc in place.

0 When the disc tray is in the open position, do not press
down on it strongly, or place heavy objects on it.

On cleaning

Clean the cabinet, panel and controls with a dry soft cloth, or
a soft cloth lightly moistened with a mild detergent solution,
Do not use any type of solvent, such as alcohol or benzine,
which may damage the finish.

0n repacking
Do not throw away the carton and the packing material.
They make an ideal container to transport the unit in.

If you have any question or problem concerning your unit,
please contact your nearest Sony dealer.
