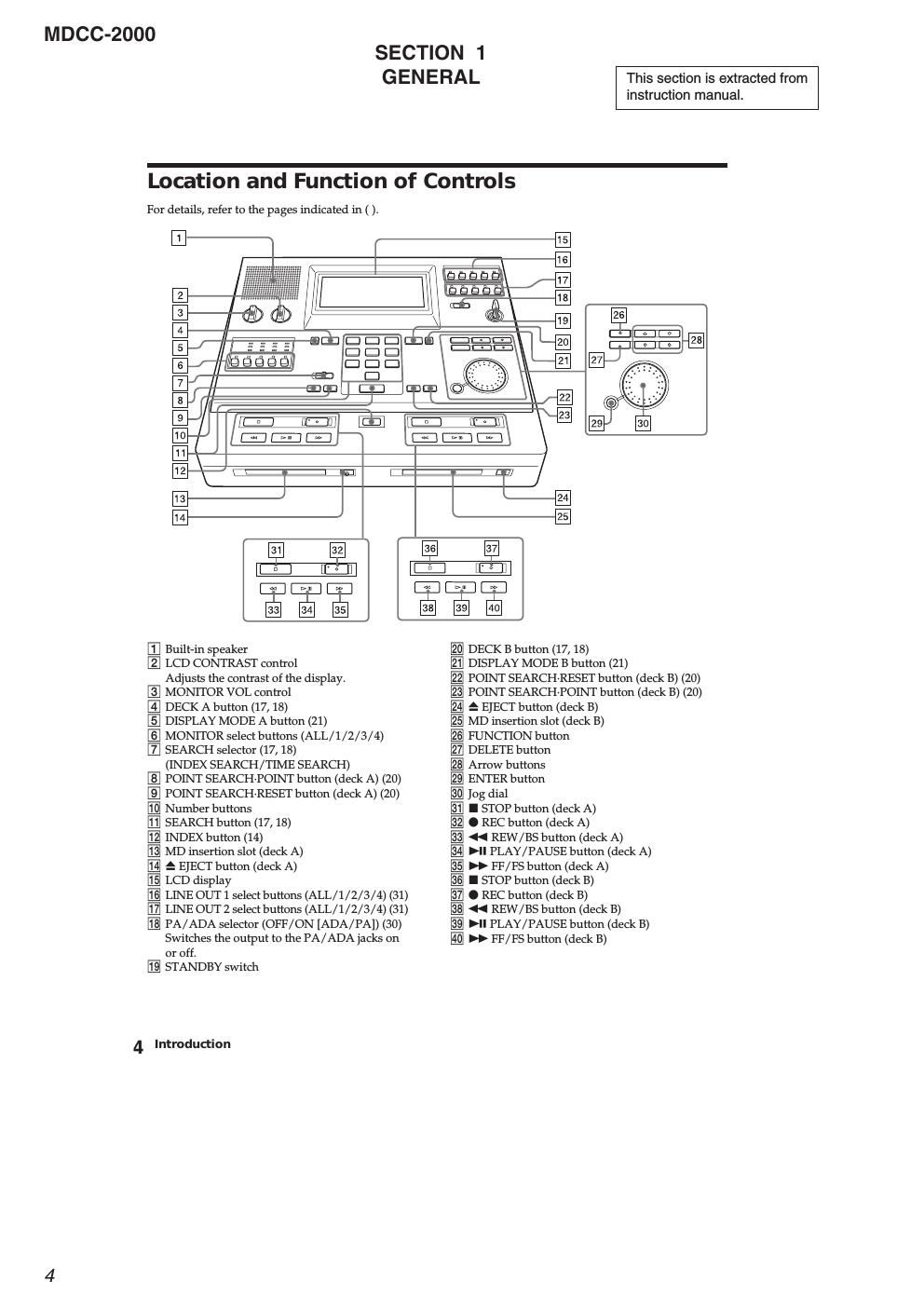

5 MDCC-2000 6Introduction 1A: display (deck A) Indicates the disc inserted in deck A or the status of deck A as follows: BLANK: a blank disc NO DISC: no disc PB ONLY: a commercially available recorded disc (for playback only) PROTECTED: a protected disc (3) RECORDED: a recorded disc 2TIME display (deck A) Indicates the recorded time at the current location for each index item. It blinks during time search. (18) 3 (copied) display (deck A) Indicates that a disc digitally copied with the Copy function is inserted. (26) 4INDEX counter (deck A) Lights up when a disc is inserted. Blinks during an index search. (17) 5END display (deck A) This shows the end of the disc. 6Disc status display (deck A) Indicates the status of the disc with pictures.7DECK A/DECK B display Indicates various data by characters and various error messages. (38) 8Disc position display Indicates the current playback/recording location on the disc by a white box. Already recorded parts are indicated in black. The further it is to the right, the closer the disc is to the end. Depending on the condition of the disc, the black part might not reach the far right even if the disc is full. 9DATE/TIME display Indicates the current date and time. 0B: display (deck B) Indicates the same contents as deck A. qaTIME display (deck B) qs (copied) display (deck B) qdDisc status display (deck B) qfEND display (deck B) qgINDEX counter (deck B) qhREC MODE display Indicates the recording mode (2ch/4ch) currently selected. Display Window (Information screen) 1 2 3 4 5 6 7 89 0 qa qs qd qf qg qh 8Setting Up Setting the Date and Time 1 Insert the key and set it to ON. You will see the initial screen in a few seconds. 2 Press FUNCTION. 3 Select CALENDAR,CLK using the jog dial or the arrow buttons, and press ENTER. You will see the CALENDAR or CLOCK INPUT screen. 4 Select CALENDAR using the jog dial or the arrow buttons, and press ENTER. You will see the SET MONTH (mmm) and DAY (dd) and YEAR (yy) screen with the name of a month blinking. 5 Set the month using the jog dial or J/j buttons, and press ENTER. You will see 01 of the day blinking. 6 Set the day and the year in the same way as step 5. When the year is set, the display will return to the information screen. 12 3, 4, 5, 6 Setting the Date blink To record the date and time etc. on MiniDiscs when you record, be sure to set the Date and Time. Note You cannot use the K/k buttons when setting the month, day and year. 9 Setting Up 1 Carry out steps 2 and 3 of Setting the Date. You will see the CALENDER or CLOCK INPUT screen. 2 Select CLOCK using the jog dial or the arrow buttons, and press ENTER. You will see the SET HOUR (hh) and MINUTE (mm) screen with the hours and AM/PM blinking. 3 Set the hour using the jog dial or J/j buttons, and press ENTER. You will see the minutes blinking. 4 Set the minutes in the same way as step 3. The display will return to the information screen and the clock will start. blink Note You cannot use the K/k buttons when setting the hour and minute. Setting the Time 2, 3, 4 5 Introduction Left side Rear raCONTROL UNIT connector (32) rsTRANSCRIBE selector (33) rdREMOTE jack (15) rfEAR jack (16) rgPC connector (RS-232C type) rhDISPLAY connector Used for connection of an external counter unit. rjADA jack Allows the unit to be connected to a separately purchased amplifier system. rkPA (public address) jack (30) rlLINE OUT jacks t;LINE IN jacks taDC IN 12V tsMicrophone connectors (Canon XLR-3-31 type)
