Sony mdc 3600 service manual
This is the 30 pages manual for sony mdc 3600 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony mdc 3600 service manual (Ocr-read)

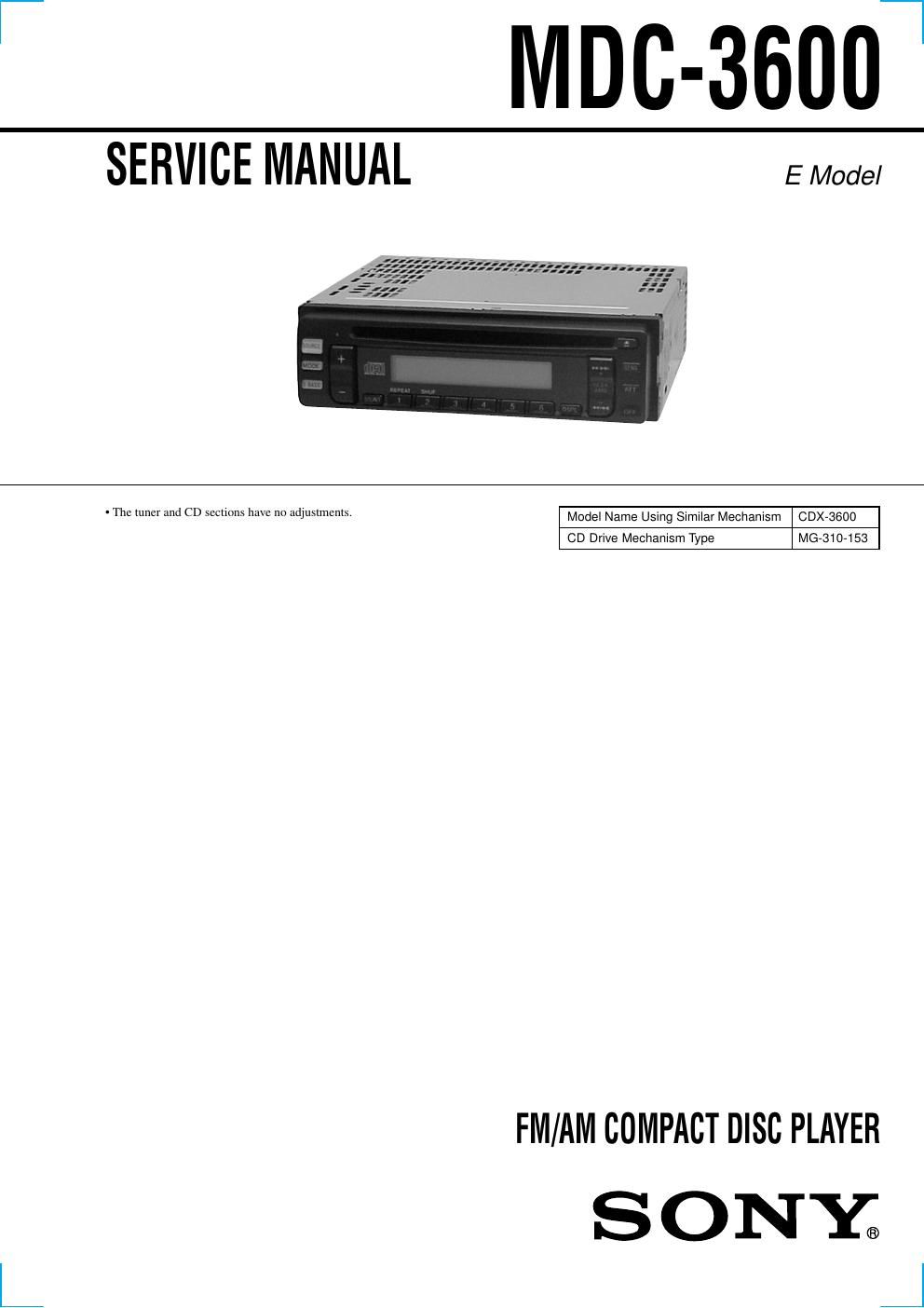

Page 1
2 TABLE OF CONTENTS 1. DISASSEMBLY 1-1. Front Panel Assy ................................................................. 3 1-2. Key Board ........................................................................... 3 1-3. Main Sub Assy .................................................................... 4 1-4. CD Mechanism Block ......................................................... 4 1-5. Heat Sink ............................................................................. 5 1-6. Chassis (R) Block Assy ....................................................... 5 1-7. Floating Block Assy ............................................................ 6 1-8. Roller Arm Assy .................................................................. 6 1-9. Optical Pick-up Block ......................................................... 7 2. DIAGRAMS 2-1. IC Pin Description ............................................................... 8 2-2. Block Diagram –Main Section– ........................................ 10 2-3. Block Diagram –Display Section– .................................... 11 2-4. Printed Wiring Boards –Main Section– ............................ 12 2-5. Schematic Diagram –Main Section (1/3)– ........................ 14 2-6. Schematic Diagram –Main Section (2/3)– ........................ 15 2-7. Schematic Diagram –Main Section (3/3)– ........................ 16 2-8. Schematic Diagram –Display Section– ............................. 17 2-9. Printed Wiring Board –Display Section– .......................... 18 3. EXPLODED VIEWS 3-1. Chassis Section ................................................................. 21 3-2. Front Panel Section ........................................................... 22 3-3. CD Mechanism Section (1) ............................................... 23 3-4. CD Mechanism Section (2) ............................................... 24 4. ELECTRICAL PARTS LIST ........................................ 25 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. SERVICE NOTE CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Laser Diode Properties -Material: GaAlAs -Wavelength: 780 nm - Emission Duration: continuous -Laser Output Power: less than 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surfase on the Optical Pick-up Block.
Page 2
3 2 P 2x8 1 P 2x8 4 button (6 key) 8 button (AMS) 7 button (EJECT) 6 button (+.–) 5 button (source) 3 KEY board 1 PTT 2.6x8 2 claws 3 claws 4 claw 5 CN601 6 front panel assy SECTION 1 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 1-1. FRONT PANEL ASSY 1-2. KEY BOARD
