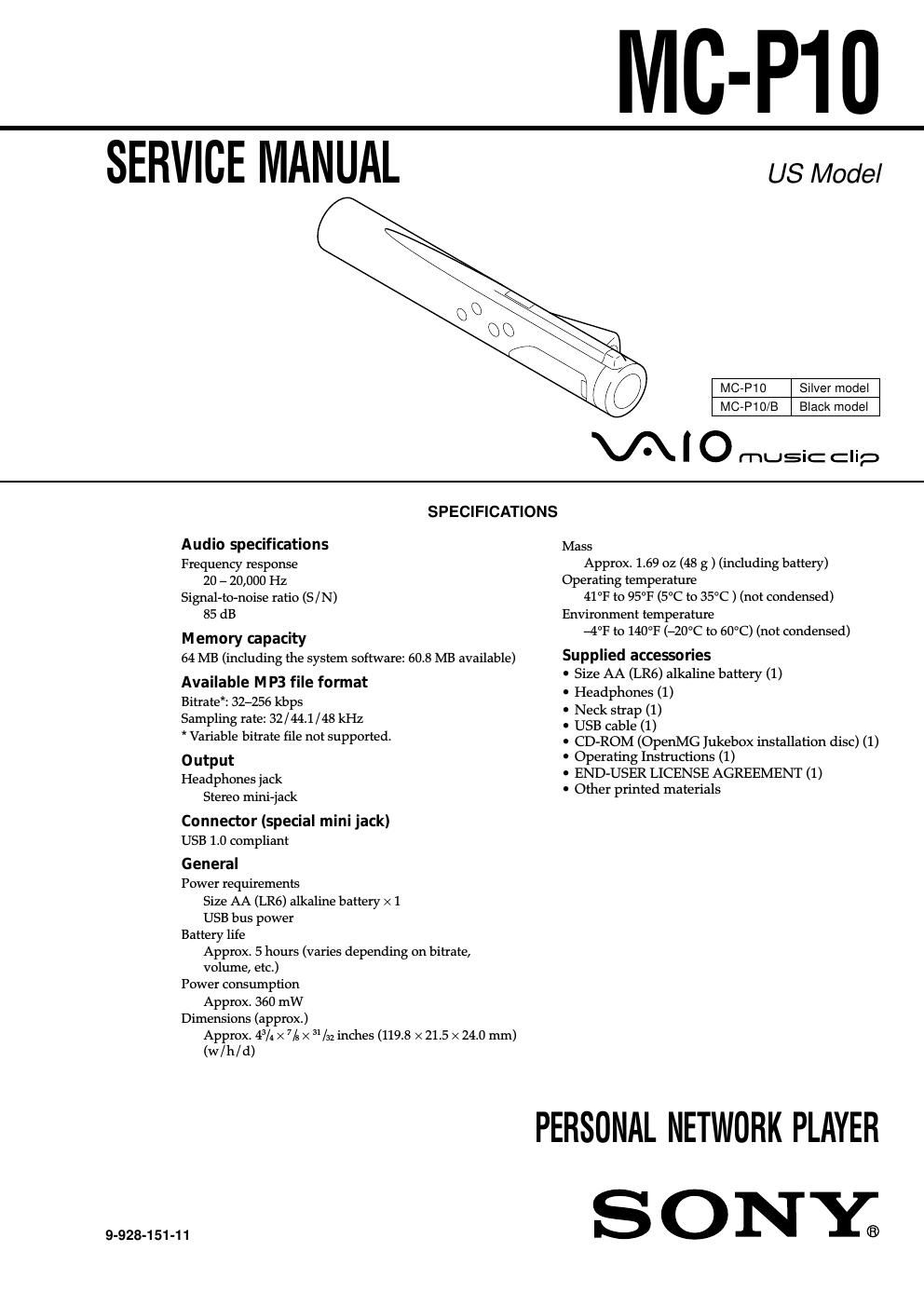

– 2 – TABLE OF CONTENTS 1. GENERAL Parts and Controls .......................................................... 1-1 Overview ........................................................................ 1-1 About this Manual .......................................................... 1-2 Installing Open MG Jukebox ......................................... 1-2 Inserting the Battery ....................................................... 1-3 Using the Music Clip Player .......................................... 1-3 Playing Songs Repeatedly (MODE) .............................. 1-4 Changing the Equalizer (EQ) ........................................ 1-5 Limiting the Maximum Volume level with Auto Volume Limiter System (AVLS) ................... 1-5 Locking Controls (Hold) ................................................ 1-5 Glossary .......................................................................... 1-5 2. DISASSEMBLY Lower Case Assy ............................................................ 2-1 Jack Flexible Board ........................................................ 2-1 Main Board ..................................................................... 2-2 3. EXPLODED VIEW .................................................. 3-1 ACCESSORIES & PACKING MATERIALS ... 3-2Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Sony, VAIO, the VAIO logo, Music Clip, OpenMG and the OpenMG logo are trademarks of Sony Corporation. IBM and PC/AT are registered trademarks of International Business Machines Corporation. Microsoft, Windows and the Windows 98 logo are registered trademarks of Microsoft Corporation. MMX and Pentium are registered trademarks of Intel Corporation. Creative and SoundBlaster 16 are trademarks or registered trademarks of Creative Labs. Inc. CD-related data through the Internet from the CDDB Music CD Database. Copyright 1999 CDDB Inc. CDDB Client Software. Copyright 1999 CDDB Inc. CDDB-Enabled, CDDB, CDDB 2 and the CDDB Logo are trademarks of CDDB, Inc. All other trademarks are trademarks of their respective owners.
Page 2
1-1 SECTION 1 GENERAL This section is extracted from in- struction manual (4-645-934-11). 10 1VOL (volume) +/– (page 19) 2Display (page 20) 3SHIFT button (pages 21, 22) 4N/x button (page 19) 5./> (EQ/MODE) buttons (pages 19, 21, 22) 6Battery compartment (page 13) Parts and controls 7Strap holder (page 14) 8HOLD switch (page 23) 9Headphones jack (page 19) 0AVLS switch (page 23) qaUSB connector (page 15) qsClip 123 4 5 68 7 9 q; qa qs Refer to the page numbers indicated in parentheses for details. 4 Overview What you can do with your Music Clip Personal Network Player The Music Clip Player is a portable audio player that allows you to easily transfer digital sound data from your computer to the Music Clip Player. The OpenMG technology* allows you to enjoy digital music, while maintaining the copyrights of its holders. The OpenMG-compliant application software that is supplied with your Music Clip Player enables you to store digital music data on your computers hard disk and transfer it to the Music Clip Player. The supplied OpenMG Jukebox software enables you to import digital sound data by: – downloading sound data from Electronic Music Distribution (EMD) services over digital networks such as the Internet, – recording audio CDs onto the hard disk of your computer (the recorded songs are encoded in ATRAC3 format), – converting existing MP3 and WAV format audio files into OpenMG format. (WAV format audio files are converted into ATRAC3 format, and MP3 format audio files are converted into ATRAC3 format or encoded without changing the format.) The OpenMG Jukebox encrypts sound data in OpenMG format and stores it on the hard disk of your computer to prevent unauthorized distribution. * Music Clip Players copyright protection technology conforms to the SDMI (Secure Digital Music Initiative) specifications. EMD servicesWAV, MP3 files Audio CDs Music Clip PlayerUSB connectionHard disk of your computer (OpenMG Jukebox) 6 System requirements- IBM PC/AT and compatibles CPU: MMX Pentium 233 MHz and above (Pentium II 400 MHz and above recommended) Hard disk drive space: 20 MB and above (Free space is required, depending on the version of Windows 98 and the size of the audio data you are using.) RAM: 64 MB and above CD-ROM drive Sound Board: Creative SoundBlaster 16 compatible Default built-in USB port - Operating system: The default installation of Windows 98 English version (The product does not work on Windows 95/3.1 or Windows NT. Not assured trouble-free if you use an upgrade version from Windows 95/3.1 to Windows 98.) - Display: SVGA (800 × 600 pixel) (supports High Color (16 bit) and above) - Internet access Notes - We do not assure trouble-free operation for all computers satisfying the system requirements. - If your computer has optical output, the music played back on OpenMG Jukebox will not send digital data through that optical output. 5 Copyright protectionThe Music Clip Player has some restrictions on recording and playback to protect copyrights. For details, see Restrictions on copyright protection by OpenMG on page 30. What is OpenMG?OpenMG is a copyright protection technology used when recording and playing back audio data on computers. OpenMG encrypts and saves digital audio data on a computers hard disk, and allows the audio data to be played back on that computer only, protecting it from being distributed over a network without permission. Transfer of sound data from your computer to the Music Clip Player (Check in/Check out) The supplied OpenMG Jukebox software enables you to transfer the sound data stored on your computers hard disk to the Music Clip Player (Check out) and transfer it from the Music Clip Player to your computer (Check in). Check in/Check out restrictions: – You cannot check out the same song more than three times. (Certain songs are excluded from this restriction.) However, if you transfer a checked out song back to your computer (Check in), you can then check out the song again. – You cannot check in songs checked out to the Music Clip Player to any computer other than the computer used for Check out. For details, see Glossary on page 32. Restrictions on sound dataSome sound data is distributed with restrictions on recording or playback of the data to maintain copyright of its holders. If the audio data has a limited playing period or playing count, you cannot check it out to the Music Clip Player. You can play back the data only with the supplied OpenMG Jukebox software.
