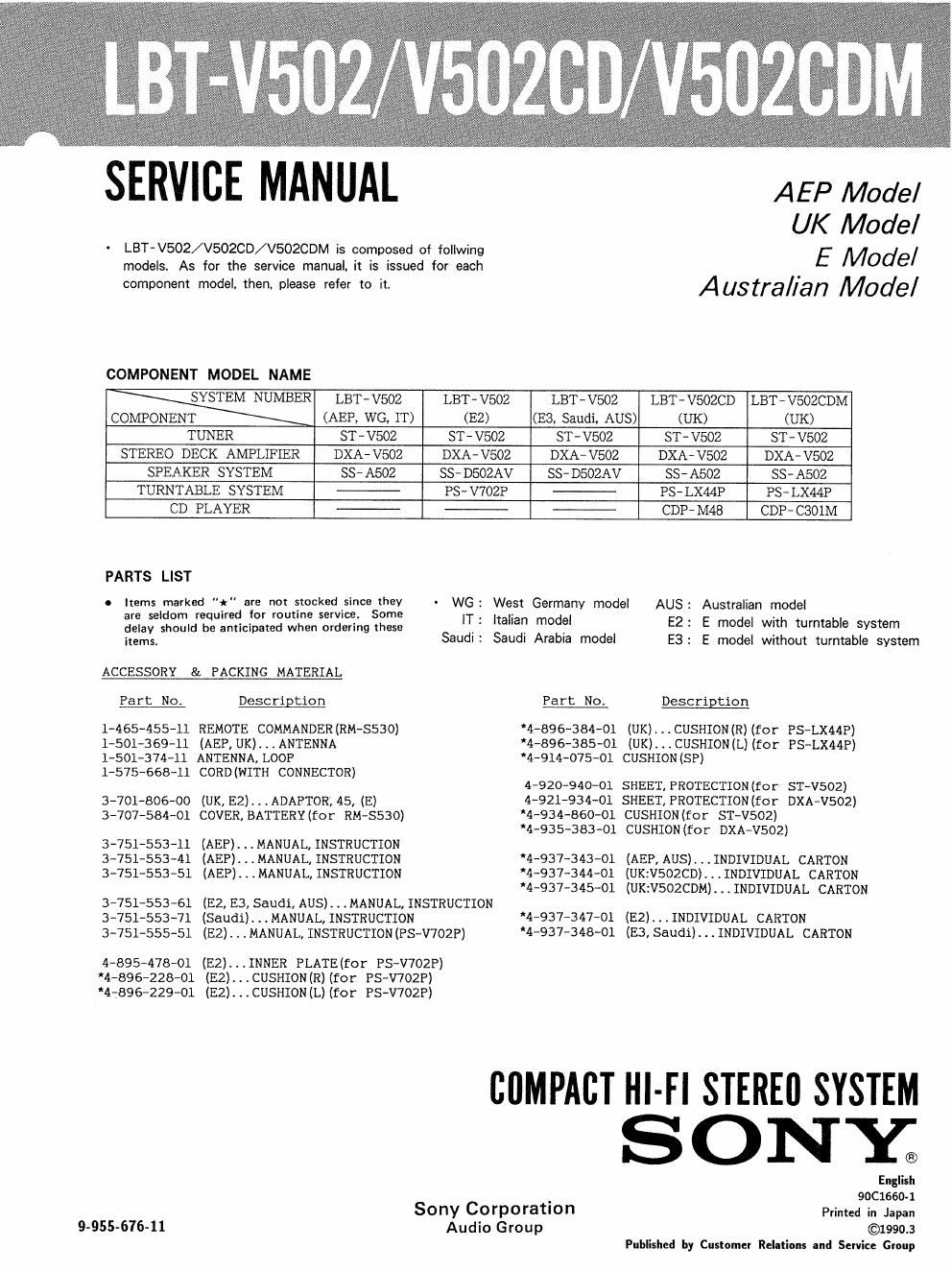

SERVICE MANUAL

- LBT-V502/V502CD/V502CDM is composed of follwing
models. As for the service manual. it is issued for each
component model, then, please refer to it.

COMPONENT MODEL NAME

AEP Model

UK Model

E Model
Australian Model

SYSTEM NUMBER

LBT- V502 LBT- V502 LBT ~ V502 LBT - V502CD LBT- V502CDM
COMPONENT (AEP, WG, IT) (E2) (E3, Saudi. AUS) (UK) (UK)
TUNER ST - V502 ST- V502 ST- V502 ST- V502 ST- V502
STEREO DECK AMPLIFIER DXA- V502 DXA- V502 DXA- V502 DXA- V502 DXA- V502
SPEAKER SYSTEM SS- A502 55- D502AV SS- D502AV 33- A502 58- A502
TURNTABLE SYSTEM - PS- V7 02F ------ PS- LX44P PS- LX44P
CD PLAYER - CDP- M48 CDP- C301M
PARTS LIST
0 Items marked "* " are not stocked since they - WG : West Germany model AUS : Australian model

are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

lT:

ACCESSORY & PACKING MATERIAL

Part No. Descrigtiqfl
1-465-455-11 REMOTE COMMANDER(RM-SS30)
1-501-369-11 (AEP, UK). . . ANTENNA
1-501-374-11 ANTENNA, LOOP

1-575-668-11 CORD(WITH CONNECTOR)

3-701-806-00 (UK, 152).. .ADAPTOR; 45, (E)
3-707-584--Ol COVER. BATTERY(for RM-SSBO)

3-751-553-11 (AEP). . . MANUAL, INSTRUCTION
3-751-553-41 (AEP). . . MANUAL. INSTRUCTION
3-751-553-51 (AEP) . . . MANUAL, INSTRUCTION

3~751~553-6l (E2, E3, Saudi, AUS) . . I MANUAL, INSTRUCTION
3-751-553-71 (Saudi). . . MANUAL, INSTRUCTION
3-751-555-51 (E2) . . . MANUAL, INSTRUCTION (PS-V702?)

4-895-478-01 (E2) . . . INNER PLATE (for PS-V702P)
4-896-228-01 (E2) . . . CUSHION (R) (for PS-V702P)
41896-229-01 (E2) I . . CUSHION (L) (for PS-V702P)

ltalian model
Saudi: Saudi Arabia model

E2: E model with turntable system
E3: E model without turntable system

Part No. Descrigtion

4-696-384-01 (UK). . . CUSHION (R) (for PS-LX44P)
4-896-385-01 (UK). . . CUSHION (L) (for PS-LX44P)
4~914-075-01 CUSHION (SP)

4-920-940-01 SHEET,PROTECTION(for ST-VSOZ)
4~921-934-01 SHEET, PROTECTION(for DXA-VSOZ)
4-934-860-01 CUSHION(for ST-V502)
"4-935-383-01 CUSHION(for DXA-V502)

4-937-343-01
4937-344-01
*4-937-345-01

(AEP, AUS). . . INDIVIDUAL CARTON
(UK2V502CD). . . INDIVIDUAL CARTON
(UK2V502CDM) . . . INDIVIDUAL CARTON

4-937-347-01
4-937-348-01

(E2) . . . INDIVIDUAL CARTON
(E3, Saudi). . . INDIVIDUAL CARTON

BflMPACT Hl-Fl STEREO SYSTEM

Sony Corporation
Audio Group

9-955-676-11

SONE

English

90C1660-1

Printed in Japan

©1990.3

Published by Customer Relnlinns and Service Group
