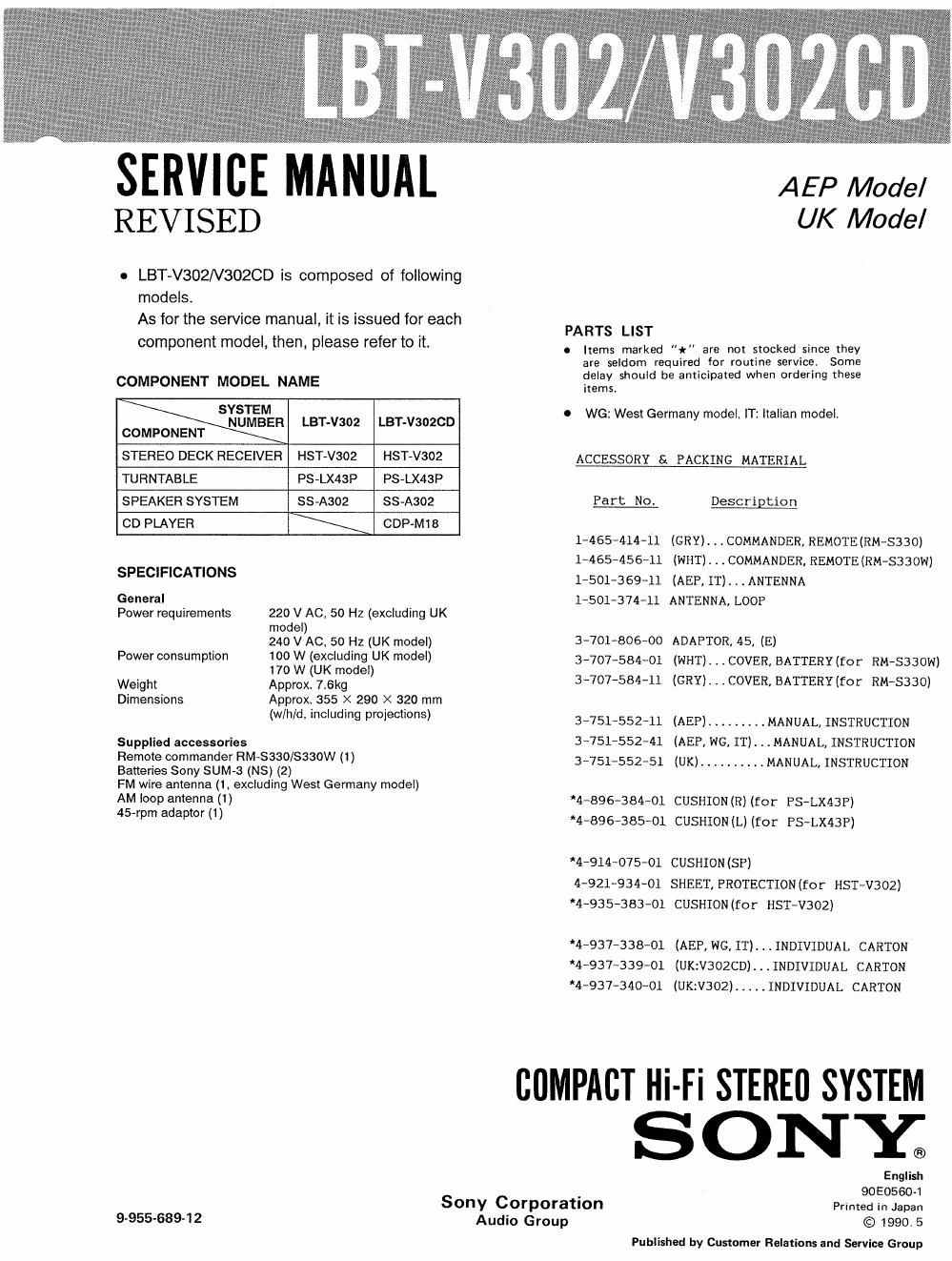

Page 1
SERVICE MANUAL
REVISED
o LBT-V302N302CD is composed of following
models.
As for the service manual, it is issued for each
component model, then, please refer to it.
COMPONENT MODEL NAME
SYSTEM
NUMBER LBT-V302 LBT-V302CD
COMPONENT
STEREO DECK RECEIVER HST-V302 HST-V302
TURNTABLE PS-LX43P PS~LX43P
SPEAKER SYSTEM SS-A302 SS-A302
CD PLAYER CDP
General
Power requirements 220 V AC, 50 Hz (excluding UK
model)
240 V AC, 50 Hz (UK model)
Power consumption 100 W (excluding UK model)
170 W (UK model)
Weight Approx. 76kg
Dimensions Approx. 355 X 290 X 320 mm
(w/h/d, including projections)
Supplied accessories
Remote commander RM-8330/S330W (1)
Batteries Sony SUM»3 (NS) (2)
FM wire antenna (1. excluding West Germany model)
AM loop antenna (1)
45-rpm adapter (I)
AEP Model
UK Model
PARTS LIST
0 Items marked "~k are not stocked since they
are seldom required for routine service Some
delay should be anticipated when ordering these
items.
0 WG: West Germany model, IT: Italian model.
ACCESSORY & PACKING MATERIAL
Part No Description
1-465414-11 (GRY) . . . COMMANDER, REMOTE (RM-$330)
1-1165-456le (WIITL . . COMMANDER, REMOTE (RM-S33OW)
1-501-369-11 (AEP, IT). . . ANTENNA
1-501-3741le ANTENNA, LOOP
3-701~806-00 ADAPTOR, 45, (E)
3-707-584-01 (WHT) . . I COVER, BATTERY (for RM-SB3OW)
3-707-584-11 (CRY), . . COVER. BATTERY (for RM>5330)
3-751-552-11 (AEP) ......... MANUAL, INSTRUCTION
3-751-552-41 (AEP, WG, IT). . l MANUAL, INSTRUCTION
3-751~552-51 (UK) .......... MANUAL, INSTRUCTION
*4-896-364-01 CUSHION(R)(fOI PS-LX43P)
"4-896~385-0]. CUSHION(L) (for PS-LX43P)
4-914-075-01 CUSHION (SP)
4-921-934-01 SHEET, PROTECTION(for HST-V302)
*4~935-383-01 CUSHION(for HST-V302)
4-937-338-01 (AEP, WG. IT) . . . INDIVIDUAL CARTON
4-937-339-01 (UK2V302CD) . . . INDIVIDUAL CARTON
4-937-340-01 (UK2V302) ..... INDIVIDUAL CARTON
COMPACT Hi-Fi STEREO SYSTEM
SONY...
English
90E0560-1
Sony Corporation Printed in Japan
9-955-689-12 Audio Group © 1990.5
Published by Customer Relations and Service Group
