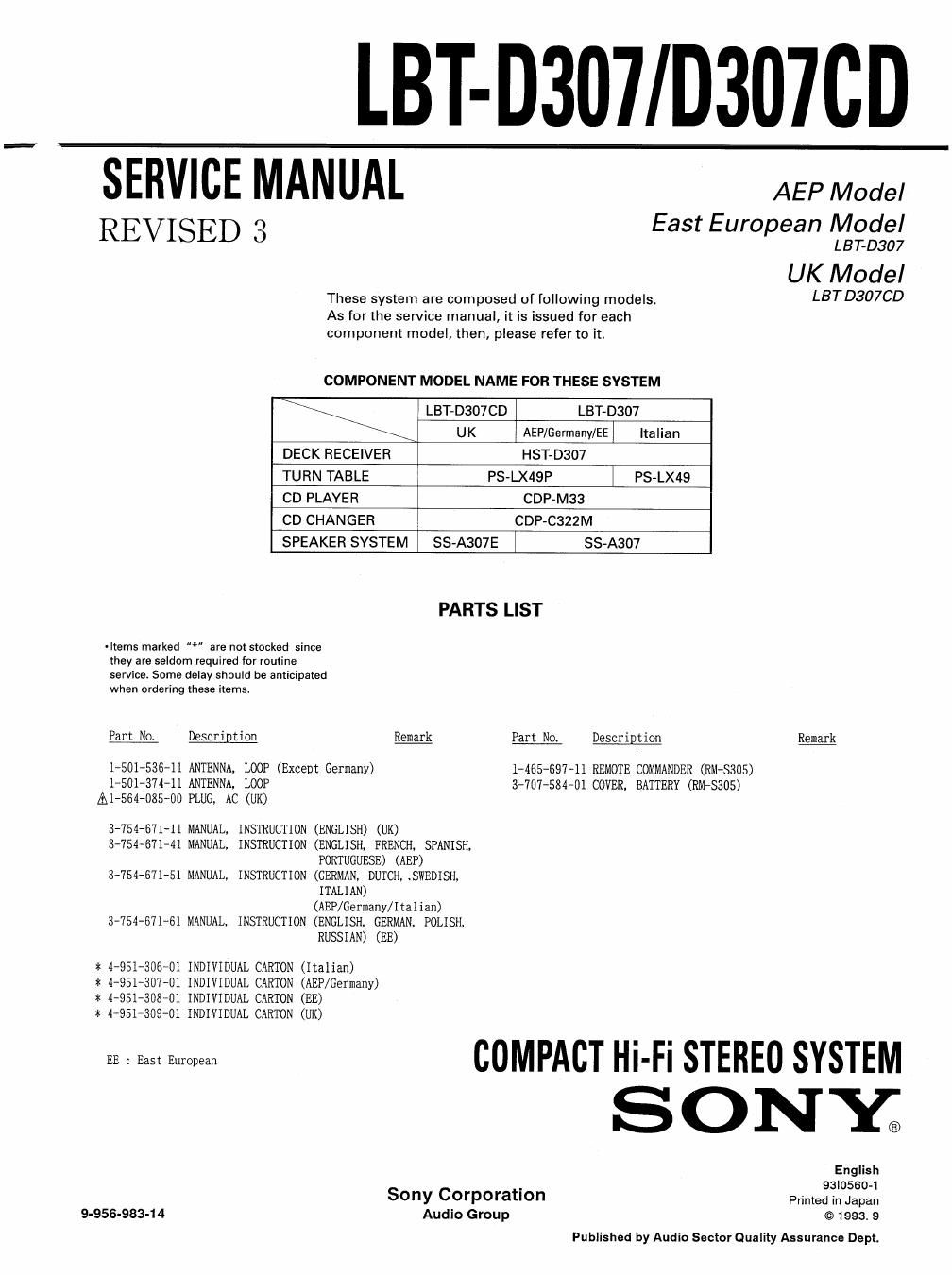

LBT-D307/D3070D

SERVICE MANUAL AEP Model

REVISED 3

East European Model

LBT-D307
UK Model
These system are composed of following models. LEI-"030760
As for the service manual, it is issued for each
component model, then, please refer to it,
COMPONENT MODEL NAME FOR THESE SYSTEM
\ LBT-D307CD LBT-D307
UK AEP/Germany/EEI ltalian
DECK RECEIVER HST-D307
TURN TABLE PS CD PLAYER CDP-M33
CD CHANGER CDP~C322M
SPEAKER SYSTEM SS-A307E SS-A307
PARTS LIST
-liems marked " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these irems,
Part No. Description Remark Part No. Descrigt ion Remark

1-501-536-11 ANTENNA, LOOP (Except Germany)
1'501-374-11 ANTENNA, LOOP
AI'SSA-OSS-OO PLUG, AC (UK)

1-465-697-11 REMOTE COMMANDER (RM~8305)
3407-5844 COVER, BATTERY (RM-S305)

3454-67141 MANUAL, INSTRUCTION (ENGLISH) (UK)
3-754'671-41 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH.

PORTUGUESE)

(AEP)

3~754-671-51 MANUAL, INSTRUCTION (GERMAN. DUTCH, .SWEDISH.

ITALIAN)

(AEP/ Germany/ Ital ian)
3'754-67161 MANUAL, INSTRUCTION (ENGLISH, GERMAN, POLISH,
RUSSIAN) (EB)

* 4-951-306-01 INDIVIDUAL CARTON (Italian)

* 4_951-307V01 INDIVIDUAL CARTON (AEP/Germany)
A 4951-308-01 INDIVIDUAL CARTON (BE)

* 4-951-309-01 INDIVIDUAL CARTON (UK)

BE : East European

9-956-983-14

COMPACT Hi-Fi STEREO SYSTEM
S ON Y;

English

_ 93l0560~1

Sony Corporation Printed in Japan
Audio Group © 1993, 9

Published by Audio Sector Qualiy Assurance Dept.
