Page 1

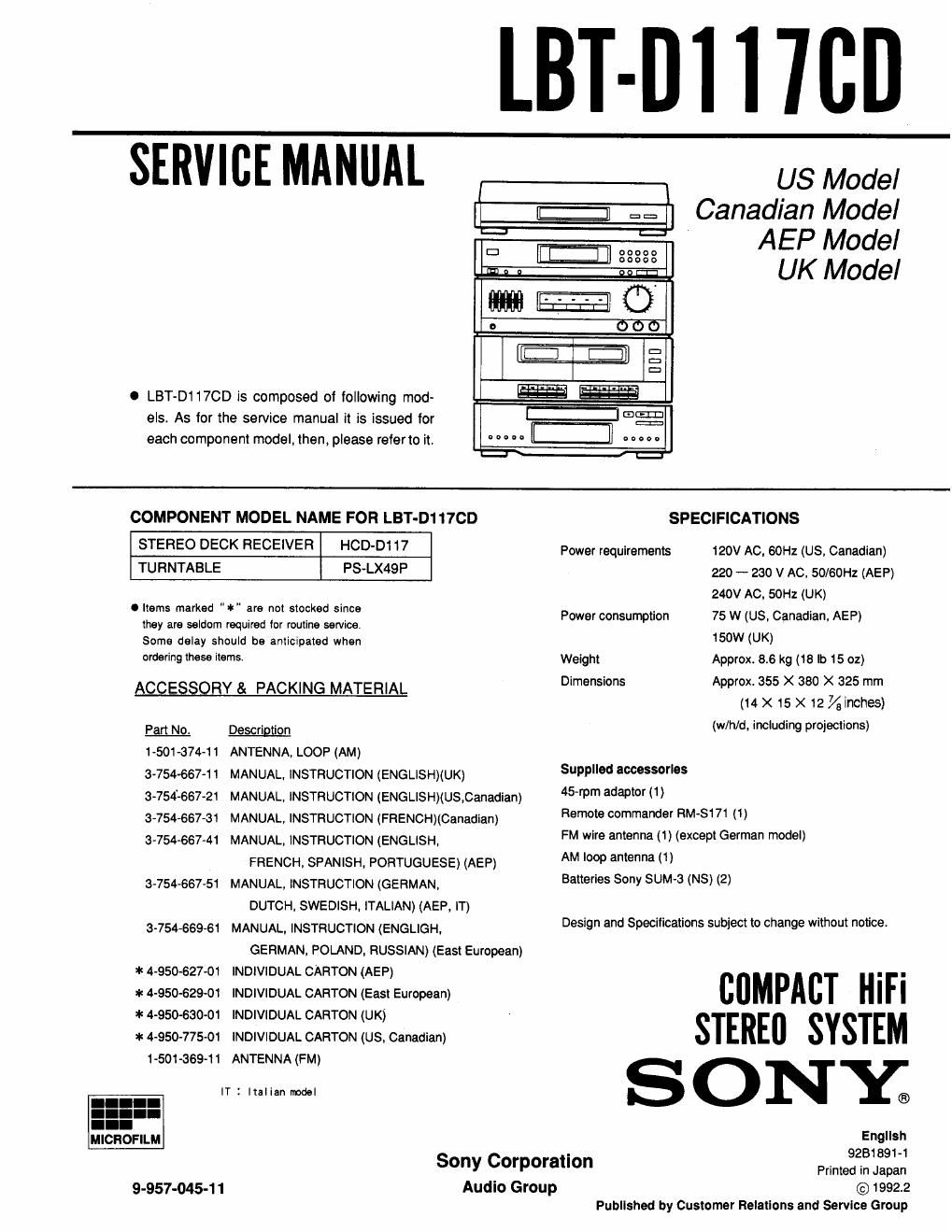

SERVICE MANUAL

0 LBT-D117CD is composed of following mod-
els. As for the service manual it is issued for
each component model, then, please reterto it.

LBT-III I NIB

US Model

Canadian Model

AEP Model
UK Model

WES

COMPONENT MODEL NAME FOR LBT-D117CD

STEREO DECK RECEIVER
TURNTABLE

HCD-D1 17
PS»LX49P

0 Items marked it are not stocked since
they are seldom required lor routine service
Some delay should be anticipated when
ordering these items.

AC E RY& PACKING MATERIAL

Part No.

1-501 {374-11
3-754-6674 1
3-754-667-21
3-754-667-31
3-754667-41

Descrigtion
ANTENNA. LOOP (AM)

MANUAL, INSTRUCTION (ENGLISH,

MANUAL, INSTRUCTION (ENGLISH)(UK)
MANUAL, INSTRUCTION (ENGLISH)(US,Canadian)
MANUAL, INSTRUCTION (FRENCH)(Canadian)

FRENCH, SPANISH, PORTUGUESE) (AEP)

3-754»667-51 MANUAL, INSTRUCTION (GERMAN,

DUTCH, SWEDISH, ITALIAN) (AEP, IT)

3-754-669-61 MANUAL, INSTRUCTION (ENGLIGH,

GERMAN, POLAND, RUSSIAN) (East Euiopean)

* 4-950-62701
at: 4-950-629~O1
* 4-950~630-01
* 4-950-775-01

1-501-369-11

INDIVIDUAL CARTON (AEP)
INDIVIDUAL CARTON (UK)

ANTENNA (FM)

IT 1 Italian model

MICROFILM

INDIVIDUAL CARTON (East European)

INDIVIDUAL CARTON (US. Canadian)

Power requirements

SPECIFICATIONS

120V AC, 60Hz (US. Canadian)
220 -- 230 V AC, 50/60Hz (AEP)
240v AC, 5on (UK)

Power consumption 75 W (US. Canadian, AEP)
150w (UK)

Weight Approx 8.6 kg (18 lb 15 oz)

Dimensions Approx. 355 X 380 X 325 mm

(14 X 15 x 12 7/5inches)
(wlh/d, including projections)

Supplied accessories

45-min adaptor (1)

Remote commander RM

FM wire antenna (1) (except German model)
AM loop antenna (1)

Batteries Sony SUM-3 (NS) (2)

Design and Specifications subject to change without notice.

Sony Corporation

9-957-045-1 1

Audio Group

IIIIMPAIIT HiFi
STEREII SYSTEM

SONY;

English
92818914
Printed in Japan
@ 1992.2

Published by Customer Relations and Service Group
