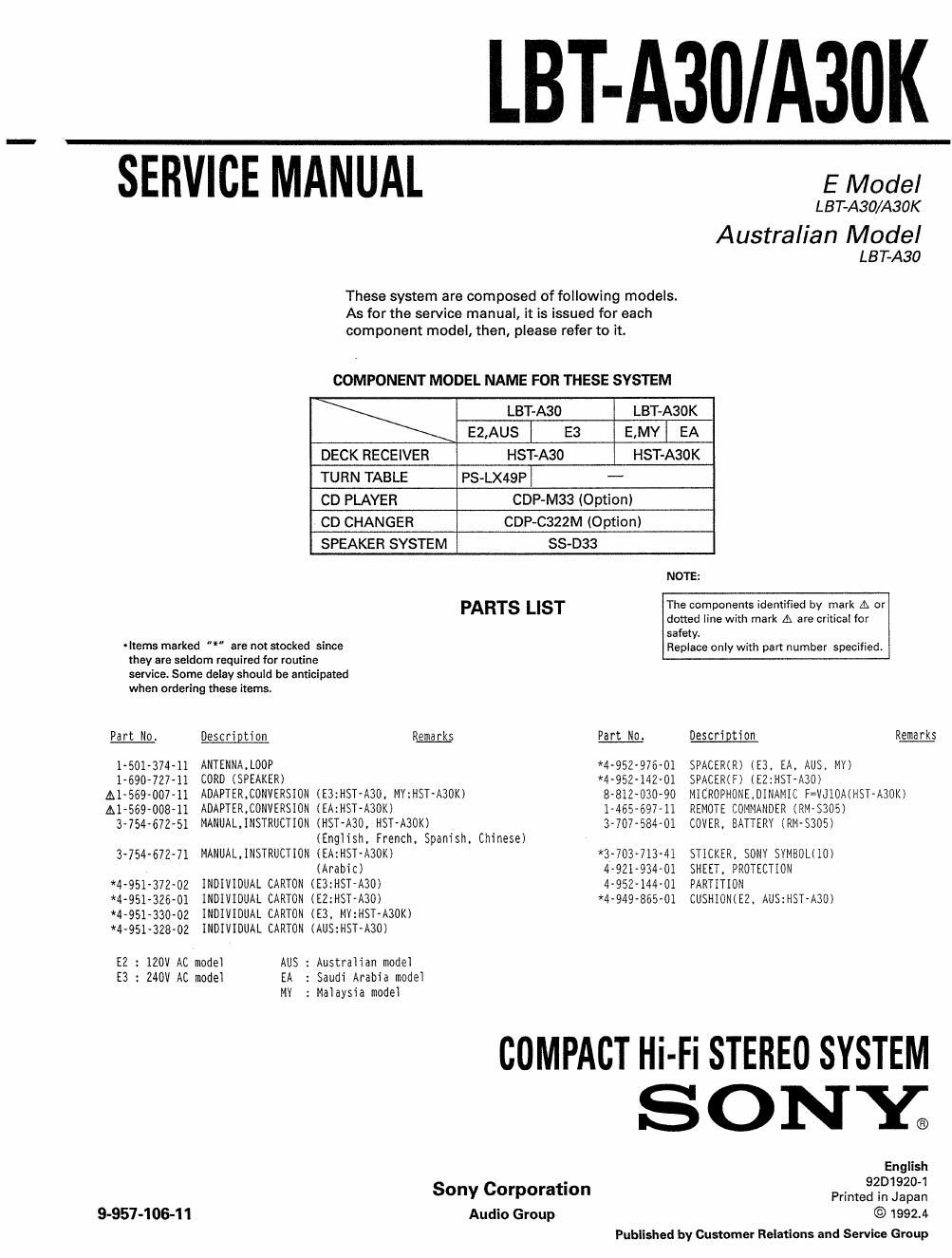

LBT-A30/A30K
SERVICE MANUAL WM
LBT-A30/A30K
Australian Model
LBT-A30
These system are composed of following models.
As for the service manual, it is issued for each
component model, then, please refer to it.
COMPONENT MODEL NAME FOR THESE SYSTEM
LBT-A30 LBT-A30K
E2,AUS | £3 E,MY| EA
DECK RECEIVER HST-A30 HST-A30K
TURN TABLE PS-LX49P I -
CD PLAYER CDP-M33 (Option)
CD CHANGER CDP-C322M (Option)
SPEAKER SYSTEM SS-D33
NOTE:
PARTS LIST The components identified by mark A or
dotted line with mark A are critical for
safety.
~ltems marked "*" are not stocked since Replace only with part number specified
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
Part No. Description Remarks Part No. Description Remarks
1501-374-11 ANTENNA.LO0P *4-952-97601 SPACERIR) (E3, EA, AUS. MY)
1~690-727-ll CORD (SPEAKER) *4-952-142-01 SPACERHI (E2:HST-A30)
A1-569-007-11 ADAPTER.CONVERSION (E32HST-A30, MY:HST~A3DK) 8-812-030-90 MICROPHONE.DINAMIC F=VJ10AIHST-A30K)
A1-569-003-11 ADAPTER,CONVERSION (EA2HST-A3OK) I-465697'11 REMOTE COMMANDER (RM-S305)
3-754-672-51 MANUALJNSTRUCTION (HST-A30. HST-A3010 3707-584-01 COVER, BATTERY (RM-S305)
(English. French, Spanish, Chinese)
3~754~672-7I MANUALINSTRUCTION (EA:HST-A30Kl *3703~713>41 STICKER, SONY SVMBOLUO)
(Arabic) 4-921-934'01 SHEET, PROTECTION
*4-951-372-02 INDIVIDUAL CARTON (E32HST-A3D) 4952-144'01 PARTITION
*4-951-326-01 INDIVIDUAL CARTON (E21HST-A30l *4-949'865-01 CUSHIONIEZ, AUS:HST~A30)
*4-951330'02 INDIVIDUAL CARTON (E3. MVzHST'A30K)
*4-951328-02 INDIVIDUAL CARTON (AUS:HST-A30)
E2 : 120V AC model AUS : Australian model
E3 : Z40V AC model EA : Saudi Arabia model
MY : Malaysia model
