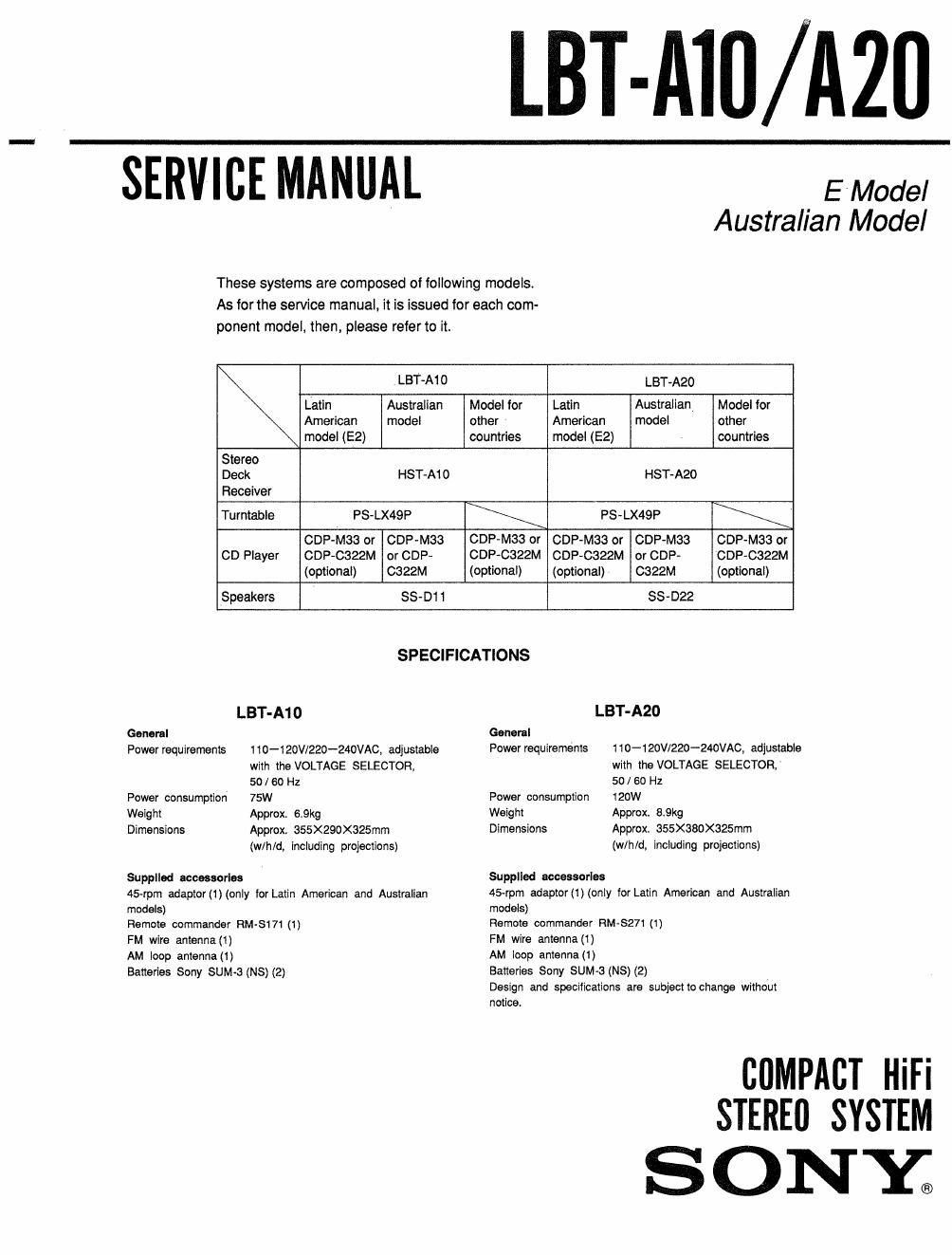

Page 1

LBT-AIII/IIZII

SERVICE M

ANIIIII.

E Model
Australian Model

These systems are composed of following models.
As for the service manual. it is issued tor each com-

ponent model

, then, please refer to it.

LBT»A1 0 LBT.A20
Latin Australian Model for Latin Australian Model for
American model other American model other
model (E2) countries model (E2) countries
Stereo
Deck HST-A10 HST~A20
Receiver
Turntable PS-LX49P PS-LX49P
GDP-M33 or GDP-M33 CDP~M33 or GDP-M33 or CDP-M33 CDP-M33 or
CD Player CDP-0322M or CDP- GDP-0322M CDPvCS22M or CDP- CDP<0322M
(optional) 0392M (optional) (optional) 0322M (optional)
Speakers 38-01 1 SS-D22
SPECIFICATIONS
LBT- A1 0 LBT-A20

General

Power requirements i t0-120Vl220-240VAO, adjustable
with the VOLTAGE SELECTOR,

50 l 60 Hz
Power consumption 75W
Weight Approx. 6.9kg
Dimensions Approx. 355X290X325mm

(w/h/d, including projections)

Supplied accessories

45-rpm adaptor (1) (only for Latin American and Australian

models)

Remote commander RM-S17i (1)
FM wire antennafl)

AM loop antenna (1)

Batteries Sony SUM-3 (NS) (2)

General
Power requirements 1 10-120Vl220-240VAC, adjustable
with the VOLTAGE SELECTOR.

50 l 60 Hz
Power consumption 120W
Weight Approx. 8.9kg
Dimensions Approx. 355x380><325mm

(wlh/d, including projections)

Supplied accessories

45~rpm adaptor(1) (only tor Latin American and Australian
models)

Remote commander RM-827l (1)

FM wire antennaa)

AM loop antenna (1)

Batteries Sony SUM<3 (NS) (2)

Design and specifications are subject to change without
notice.

CflMPACT HiFI
STEREO SYSTEM

SONY)

Page 2

LBT- A10 / A20

PARTS LIST

' Items marked "*" are not stocked since
they are seldom quuirsd for routine service,
Some delay should be anticlpated when or-
dering these Rams;

ACCESSORY & PAQKINQ MATERIAL

Part No. Descrimlgn

1-465-962-11 REMOTE COMMANDER (Include 9361)
(RM -SI71) (A10)
1-501-374-11 ANTENNA, LOOP
>:<1. 4-941-762-01 COVER BATTERY (RM-S171)
1-465-96341 REMOTE COMMANDER (Include x- 2)
(RM»$271) (A20)
*2. 3-707-584-01 COVER BATTERY (RM-$271)
3754-598-51 MANUAL, INSTRUCTION
(ENGLISH, F, E, RC) (E, EA, AUS Model) (A10)
3-754-66961 MANUAL, INSTRUCTION
(ENGLISH, F, E, R0) (E, EA, Aus Model) (A20)

F : FRENCH E : SPANISH
RC : CHINESE

'4-950-792-01 INDIVIDUAL CARTON (A1 0)
'4-951-320-01 INDIVIDUAL CARTON (A20:E2)
4-951-321-01 INDIVIDUAL CARTON (A20:E3)
4-951v322-01 INDIVIDUAL CARTON (A20:AUS)

EA : Saudi Avabiamodel
AUS : AusIraIianmodel

Engllsh

. 92D1814-1
Sony Corporatlon Printed in Japan

9-957-155-11 Audio Group © 1992,11
_ 2 _ Publlshed by Customer HeIatlons and Service Group
