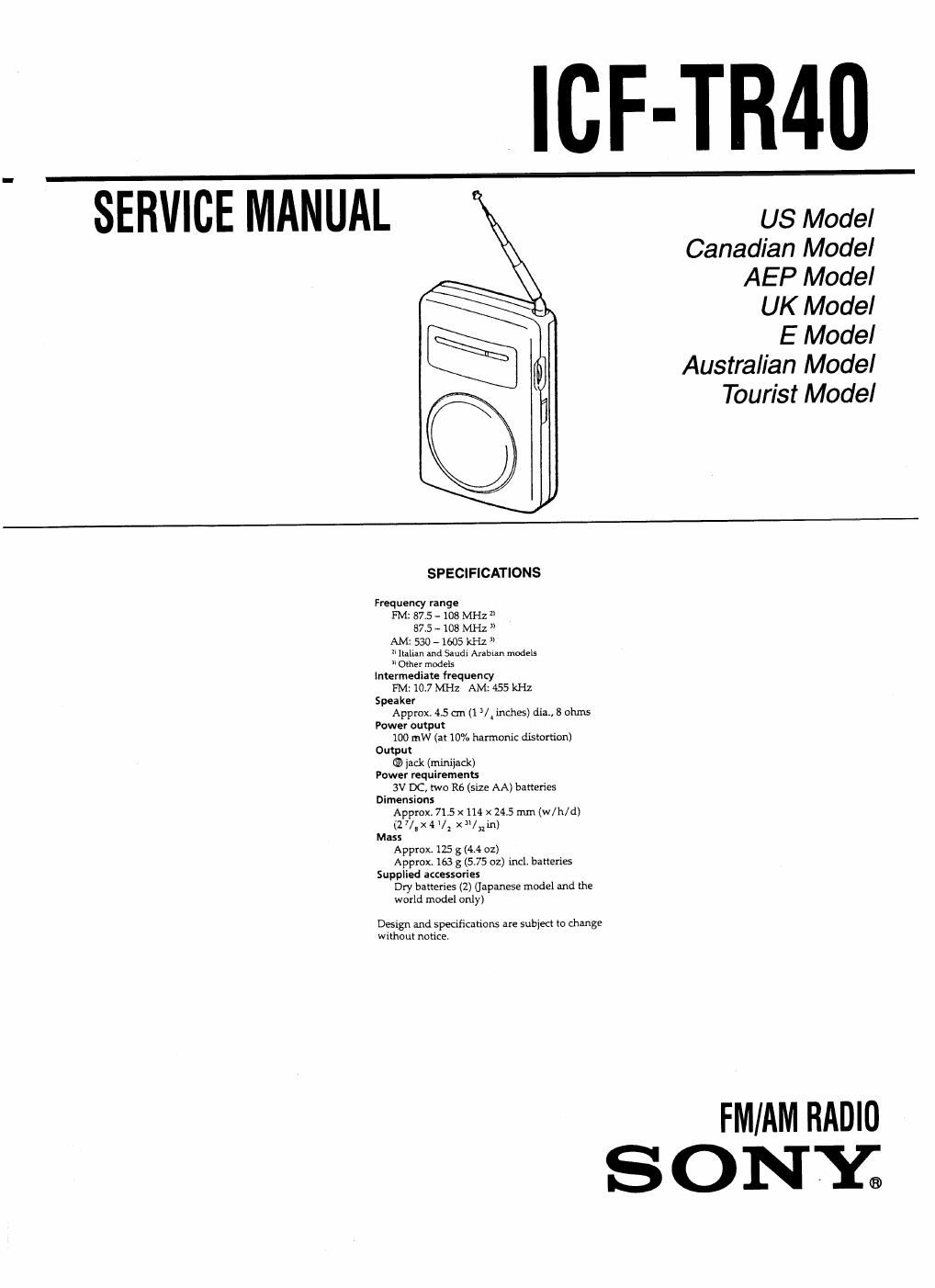

Sony icf tr 40 service manual

Page 2

SECTION 1
GENERAL

-
I
POWER/ \
vor. TUNE
w TUNING
®-> Q -BAND

R6(AA)xZ

Notes on Chip Component Replacement
- Never reuse a disconnected chip component.

- Notice that minus side of a tantalum capacitor may be

dameged by heat.

This section is extracted from
instruction manual.

Battery Installation

1 Lift up the stand and open the battery
compartment lid.

2 Insert two R6 (AA) batteries with the G) and
6) marks aligned correctly.

3 Close the battery compartment lid.

Battery life (Approx. hours)
Sony R6 (AA) FM AM

Using speaker 40 45

Using earphones 90 120

When to change the batteries
Change the batteria when the sound becomes
weak or distorted. Remove both of the old
batteries and insert new ones.

Notes on the batteries

0 Align batteries correctly.

- Do not mix new and used batteries.

- The batteries cannot be charged.

- To avoid damage from possible battery leakage,
remove the batteries when unit will not be used
for a long time.

Listening to the Radio

1 Turn the POWER/VOL control to turn on
the power and adjust the Volume.
When you have finished listening, turn
the control down to tum off the power.

2 Set the BAND selector to select FM or
AM.

3 Turn the TUNING control to select a
station.
The TUNE indicator lights when a station
is received.

To listen with earphones

Connect optional earphones to the ® jack. The
speaker does not emit sound when earphones are
connected.

To improve reception

FM: Extend the telescopic antenna and adjust the
angle for the best reception.

AM: Turn the radio in the direction that gives the
best reception by the built-in antenna.
