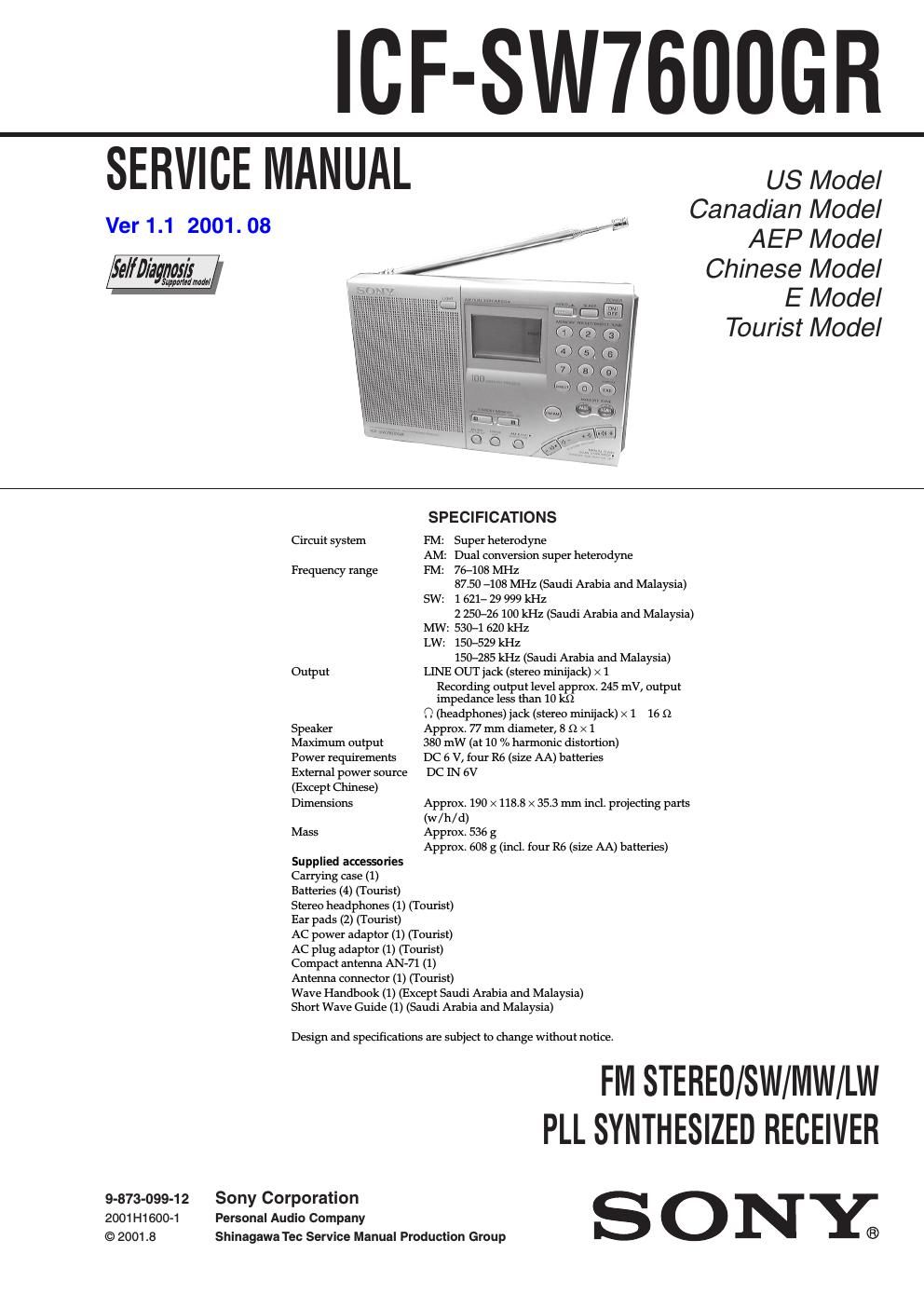

Sony icf sw 7600 gr service manual
This is the 28 pages manual for sony icf sw 7600 gr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony icf sw 7600 gr service manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS ICF-SW7600GR 1. GENERAL··································································· 3 2. DISASSEMBLY 2-1. Cabinet (Rear) ································································· 6 3. ELECTRICAL ADJUSTMENTS······························ 6 4. DIAGRAMS 4-1. Block Diagram ······························································· 9 4-2. Printed Wiring Board – Main Board (Conductor Side) – ································ 10 4-3. Printed Wiring Board – Main Board (Component Side) – ······························ 11 4-4. Schematic Diagram – Main Board (1/2) – ··················· 12 4-5. Schematic Diagram – Main Board (2/2) – ··················· 13 4-6. Printed Wiring Board – KEY Board – ························· 14 4-7. Schematic Diagram – KEY Board – ···························· 15 4-8. IC Pin Function Description ········································ 16 5. EXPLODED VIEWS 5-1. Cabinet Section ···························································· 17 5-2. Chassis Section ···························································· 18 6. ELECTRICAL PARTS LIST··································· 19 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Page 2
3 ICF-SW7600GR SECTION 1 GENERAL This section is extracted from instruction manual. 1AM EXT ANT (AM external antenna) jack (35) 2ATT (attenuator) control (21) 3ATT (attenuator) ON/ OFF switch (21) 4LINE OUT (recording output) jack (33) 52 (headphones) jack (17, 33) You can enjoy FM stereo broadcasting by connecting the optional stereo headphones to the unit . When using headphones, sound from the speaker will be muted.6DC IN 6V ! (external power input) jack (10) 7LIGHT button When the display is difficult to see, press this button to light up the display for approximately 10 seconds. Pressing the button again while the light is on will turn off the light. Performing button operations while the light is on will extend the lighting time. 8Display (7) 9Controls (6) 0Speaker Front Rear qaSSB FINE TUNE control (26) qsLSB/USB selector (26, 27) qdAM MODE selector (26, 27) qfTONE selector (33) qgVOLUME control qhTelescopic antenna Always pull out the base of the antenna before use. Furthermore, do not use unnecessary force when storing the antenna. At this time, be sure to push in the base as well. qjStand qkBattery compartment Base Pull out
