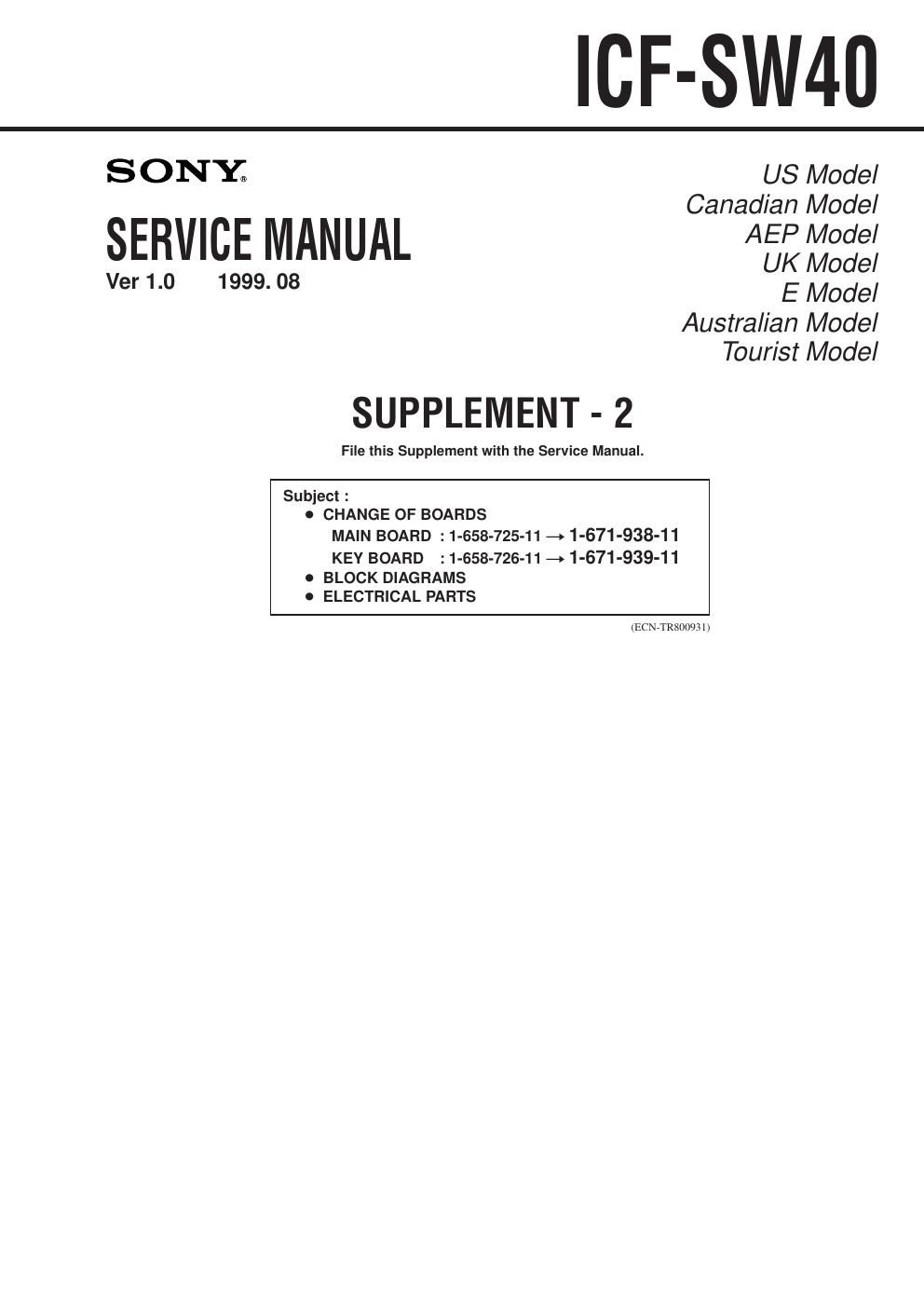

ICF-SW40
SONY® US Model
Canadian Model
SERVICE MANUAL A5533???
Ver 1.0 1999. 08 E Model
Australian Model
Tourist Model
SUPPLEMENT - 2
File this Supplement with the Service Manual.
Subject :
0 CHANGE OF BOARDS
MAIN BOARD : 1-658-725-11 a 1-671-938-11
KEY BOARD : 1-658-726-11 a 1-671-939-11
o BLOCK DIAGRAMS
c ELECTRICAL PARTS
(ECNVTRXOOQS 1)
Page 2
0 CHANGE OF BOARDS
The main board and key board have been changed.
Printed wiring boards and schematic diagram of new type, and changed parts list are described in this Supplement»2.
Refer to original service manual (9960-64041) and Supplementel (97960-64081) previously issued for the other information.
Serial No. of changed model :
US model : 1,035,251 and later Tourist model : 1,037,251 and later
AEPl model : 1,036,851 and later Canadian model : 1,046,511 and later
AEP2 model : 1,035,551 and later Italian model : (not changed)
E model : 1,036,151 and later Australian model : (not changed)
Saudi Arabia model : 1,036,751 and later
0 Abbreviation
AB? 1 : Countries except for German, Austrian and
Scandinavian.
AEP 2 : German, Austrian and Scandinavian.
[MAIN BOARD] (COMPONENT SIDE)
m
FormerType : 1-658-725-11
New Type : 1-671-938-11
[KEV BOARD] (COMPONENT SIDE)
Former Type : 1-658-726-11
New Type :1-671-939-11
