Page 1

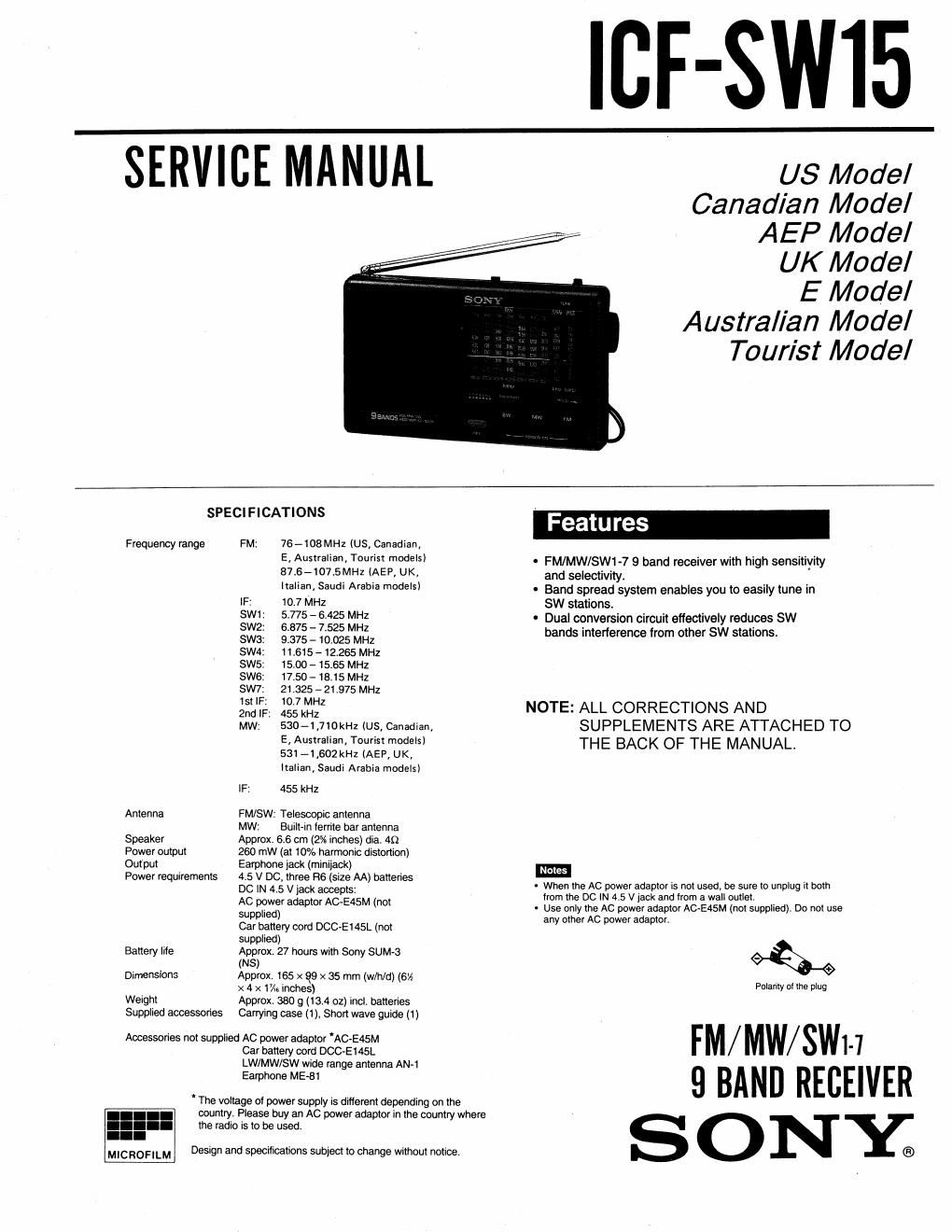

IBF-SW15

SERVICE MANUAL

US Modal
Canadian Model
AEP Model

UK Model

E Model
Austral/an Model
Tourist Model

SPECIFICATIONS

Frequency range FM: 76- 108 MHz (US, Canadian,
E, Australian, Tourist models)
87.6-107.5MHZ (AEP, UK,
Italian, Saudi Arabia models)

IF: 10.7 MHZ

SW1: 5.775 - 6.425 MHZ
SW2: 6.875 - 7.525 MHZ
SW3: 9.375 - 10.025 MHZ
SW4: 11.615<12.265 MHZ
SW5: 15.00 7 15.65 MHZ
SW6: 17.5071315 MHZ
SW7: 21.325v21375 MHZ
1st IF: 10.7 MHz

2nd 1F, 455 kHz

MW. 530-1,710kHz (US, Canadian,
E, Australian, Tourist models)
531~1,602 kHz (AEF, UK,
Italian, Saudi Arabia models)
IF: 455 kHz
Antenna FM/SW' Telescopic antenna
MW: Built»in lern'te bar antenna
Speaker Approx. 6.6 cm (2% inches) dia. 49
Power output 260 mW (at 10% harmonic distortion)
Out put Earphone jack (mlnijack)

Power requlrernents 4.5 V DC. three R6 (size AA) batteries
DC IN 4.5 V jack accepts:

AC power adaptor AC-EASM (not
supplied)

Car battery cord DCC-E145L (not
supplled)

Approx. 27 hours with Sony SUM-3
(N5)

Approx. 165 x Q9 x 35 mm (w/h/dl (6%
X 4 x 1% Inches)

Weight Approx. 380 g (13.4 oz) Incl. batteries
Supplied accessories Carrylng case (1). Short wave guide (1)

Battery life

Dimensions

Accessories not supplied AC power adaptor 'AC-E45M
Car battery cord DCC-E145L
LWNW/SW wide range antenna AN-1
Earphone ME-Bi

' The voltage 01 power supply is different depending on the
country. Please bw an AC power adaptor in the country where
the radio Is to be used.

MICROFILM Design and specifications subject to change without notice.

- FM/MW/SW1<7 9 band receiver with high sensitivity
and selectivity.

- Band spread system enables you to easily tune in
SW stations.

0 Dual conversion circuit effectively reduces SW
bands interference from other SW stations.

NOTE: ALL CORRECTIONS AND
SUPPLEMENTS ARE ATTACHED TO
THE BACK OF THE MANUAL.

- When the AC power adaptor is not used. be sure to unplug it both
lrom the Dc W 4 5 v lack and lrorn a wall outlet
~ Use only the AC power adaptor AC~E45M (not supplied). Do not use

any other AC power adaptor.

Polarity or the plug

FM/MW/SWl-l
9 BAND RECEIVER

SONE
