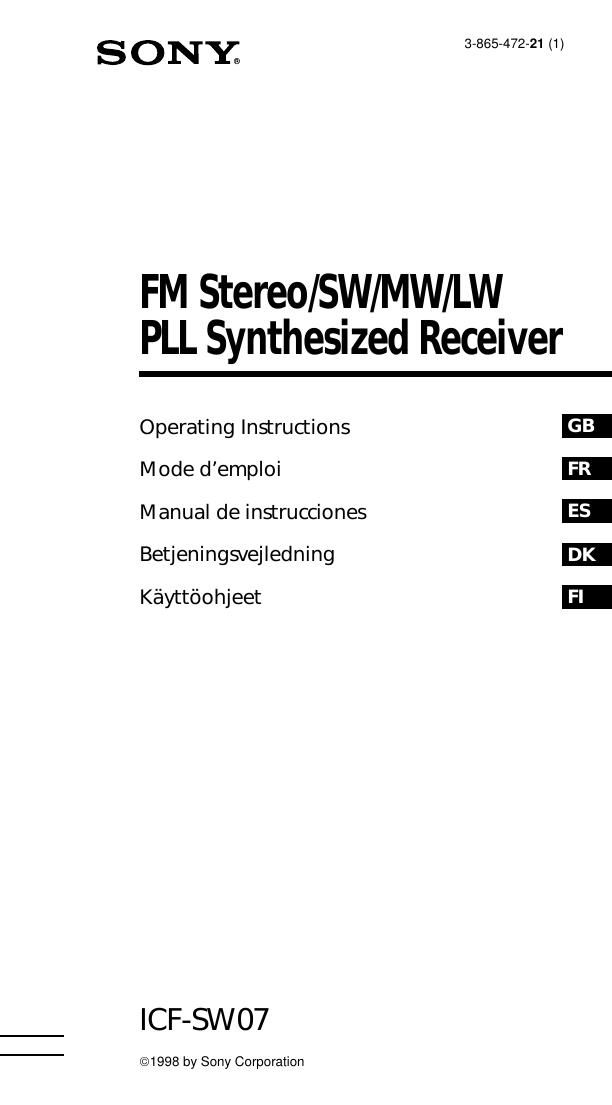

Sony icf sw 07 owners manual

Page 2

ZGB

0 w ner's reco rd

The model and serial numbers are
located at the bottom of the unit.
Record the serial number in the space
provided below. Refer to them
whenever you call your Sony dealer
regarding this product.

Model No. [CF-SW07

Serial No.

To prevent fire or shock hazard,
do not expose the unit to rain or
moisture.

To avoid electrical shock, do not
open the cabinet.

Refer servicing to qualified
personnel only.

Forthe customers in the U.S.A.

You are cautioned that any changes
or modifications not expressly
approved in this manual could void
your authority to operate this

equipment.

INFO RM ATIO N

This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:

- Reorient or relocate the receiving
antenna.

- Increase the separation between the
equipment and receiver.

- Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.

- Consult the dealer or an
experienced radio/ TV technician
for help.

Introduction

Features

- World clock feature
Find out the time for any place in
the world by selecting a city name.

- Worldwide coverage with FM
stereo/ SW/ M W/LW reception

Simple and precise tuning with

the quartz controlled PLL (Phase

Locked Loop) synthesizer system.

FM: 767108 MHz

sw: 1621729999 kHz

MW: 53071620 kHz

LW: 1507529 kHz

Refer to the supplied Wave

Handbook for more information.

' SW STATION CALL tuning

Tune in to major short wave

stations just by pressing the

station buttons. The radio
automatically chooses the
frequencies used in your time
zone from the ROM data and
scans for them.

- MY-M emory tuning

Memorizes and scans up to 100

frequencies of your choice.

- Four other tuning methods to
suit your needs

7 Direct tuning: tune in by
inputting the frequency digits
directly.

7 Manual tuning: tune in by
manually changing the
frequency step by step.

7 Scan tuning: scans
automatically through the band
and stops at reception.

7 Preset tuning: tune in by
recalling a preset broadcast
station with the single press of a
button.

- Label editing

Label preset frequencies, time

zones, etc., with a station name,

city name, etc., or any

combination of up to 6

alphanumeric letters.

- Built-in timer operation

Turns on the radio automatically at

any preset time to a station of your

choice. Preset two individual
standby7times and frequencies

under STANDBY MEMORY a and b.

- Sleep timer

Set the sleep timer and fall asleep

to the radio. The timer turns off

the radio automatically after
approximately 60 minutes.
- Stereo FM reception

Use the supplied stereo

headphones to enjoy stereo FM.
