sony icf s 77 l service manual

Extracted text from sony icf s 77 l service manual (Ocr-read)

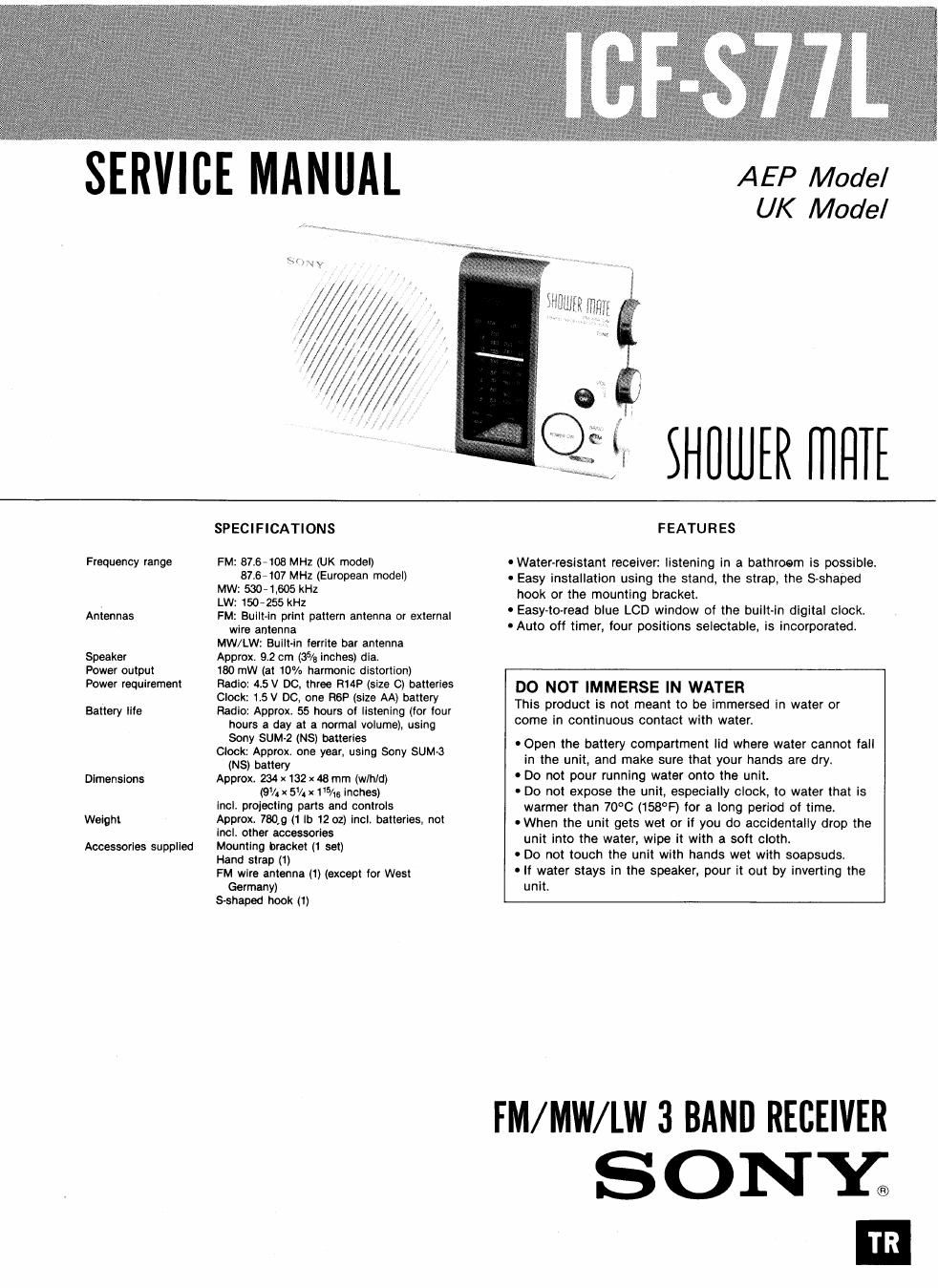

Page 1

SERVICE MANUAL

M/x,

/

7
2

A)
M

AEP Model
UK Model

.2. mum RlllFll

3

Frequency range

Antennas

Speaker
Power output
Power requirement

Battery life

Dimensions

Weight

Accessories supplied

SPECIFICATIONS

FM: 87.6-106 MHZ (UK model)
37.67107 MHz (European model)

MW: 530 - 1,605 kHz

LW: 1507255 kHz

FM: Built-In print pattern antenna or external
wire antenna

MW/LW: Built-in ferrite bar antenna

Approx. 9.2 cm (35/3 inches) dla.

180 mW (at 10% harmonic distortion)

Radio: 4.5 V DC, three R14P (size 0) batteries

Clock: 1.5 V DC. one RGP (size AA) battery

Radio: Approx. 55 hours at listening (for tour
hours a day at a normal volume), using
Sony SUM»2 (NS) batteries

Clock: Approx. one year, using Sony SUM-3
(NS) battery

Approx. 234 x 132 x 45 mm (win/d)

(9V. x 5/4 x 15/..; inches)

incl. projecting parts and controls

Approx. 780,9 (1 lb 12 oz) incl. batteries, not

incl. other accessories

Mounting bracket (1 set)

Hand strap (1)

FM wire antenna (1) (except lor West
Germany)

Sshaped hook (1)

F EATU R ES

OWater-resistant receiver: listening in a bathroom is possible.

. Easy installation using the stand, the strap, the Sshaped
hook or the mounting bracket.

0 Easy-to-read blue LCD window of the built-in digital clock.

0 Auto off timer, four positions selectable, is incorporated.

DO NOT IMMERSE IN WATER
This product is not meant to be immersed in water or
come in continuous contact with water.

0 Open the battery compartment lid where water cannot fail
in the unit, and make sure that your hands are dry.

- Do not pour running water onto the unit.

0 Do not expose the unit, especially clock, to water that is
warmer than 70°C (158°F) for a long period of time.

0When the unit gets wet or if you do accidentally drop the
unit into the water, wipe it with a soft cloth.

0 Do not touch the unit with hands wet with soapsuds.

- if water stays in the speaker, pour it out by inverting the
unit.

FM/MW/LW 3 BAND RECEIVER

SONY;
I

Page 2

ICF-S77L

LOCATION AND FUNCTION OF CONTROLS

WIRE ANT (antenna) terminal (rear)

Battery compartment (rear)

TIMER indicators

HOW TO USE THE TIMER

Set the timer by pressing the POWER ON button.
With each push of the button, the TIMER indicator
lights up showing the selected timer duration (60, 45,
30 or 15 min.).

The radio will turn itself off automatically after the
preset time has elapsed.

To turn off the radio before the preset time, press the
OFF button.

Note: There might be about 115% deviation of timer
duration.

For improved reception

The built-in ferrite bar antenna (for AM) or the print
pattern antenna (for TV and FM) activates. Change
the direction of the unit for optimum reception.

If noise still makes it hard to hear the FM program,
connect the FM wire antenna (supplied) to the WIRE
ANT terminal using the screw (supplied) and extend
it as long as possible.

Dial pointer
DIGITAL QUARTZ CLOCK

POWER ON

Press to turn on the radio
and to set the timer.
(See "HOW TO USE THE TIMER")

F'-

TUNE

Tune in the desired station.

VOL (volume)

Turn clockwise to get sound.

BAND
Select FM, MW or LW.

Band display

OFF

Press to turn off the radio before
the preset time.

g- TIME SET buttons (bottom)
(See "HOW TO SET THE CLOCK".)
