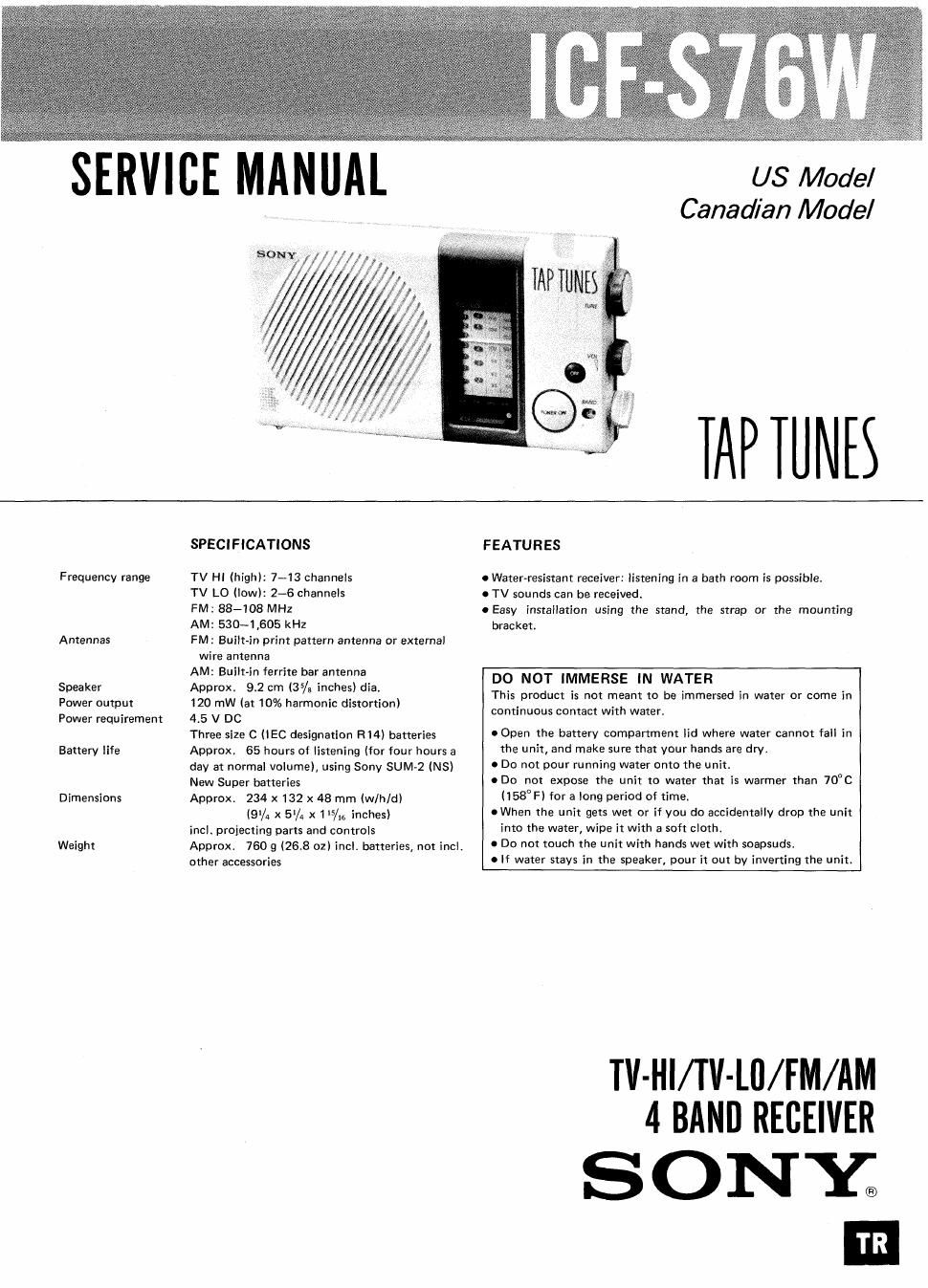

Page 1

SERVICE MANUAL

US Model
Canadian Model

TAP lUN

Frequency range

Antennas

Speaker
Power output
Power requirement

Battery life

Dimensions

Weight

SPECIFICATIONS

TV Hl (high): 7-13 channels
TV L0 (low): 2-6 channels
FM: 88-103 MHz
AM: 530-1,605 kHz
FM: Built-in print pattern antenna or external
wire antenna
AM: Built-in ferrite bar antenna
Approx 9.2 cm (35/3 inches) dia.
120 mW (at 10% harmonic distortion)
4.5 V DC
Three size C (IEC designation R14) batteries
Approx. 65 hours of listening (for four hours a
day at normal volume), using Sony SUM-2 (NS)
New Super batteries
Approx 234 x 132 x 48 mm (w/h/d)
(9% x 51/. x 15/15 inches)
incl. projecting pans and controls

Approx, 760 9 (26,8 oz) incL batteries, not incl.

other accessories

FEATURES

0 Water-resistant receiver: listening in a bath room is possible.

0 TV sounds can be received.

0 Easy installation using the stand, the strap or the mounting
bracket.

DO NOT IMMERSE IN WATER
This product is not meant to be immersed in water or come in
continuous contact with water.

oOpen the battery compartment lid where water cannot fall in
the unit, and make sure that your hands are dry

0 Do not pour running water onto the unit.

cDo not expose the unit to water that is warmer than 70°C
(158° F) for a long period of time.

oWhen the unit gets wet or if you do accidentally drop the unit
into the water, wipe it with a soft cloths

a Do not touch the unit with hands wet with soapsuds.

o If water stays in the speaker, pour it out by inverting the unit.

TV-Hl/TV-Lfl/FM/AM
4 BAND RECEIVER

SONE

TR

Page 2

? lCF-S76W

LOCATION AND FUNCTION OF CONTROLS

WIRE ANT (antenna) terminal (rear)

Sneaker Dial pointer

Battery compartment (marl-j

BATTERY indicator

BATTERY INSTALLATION

Before opening the battery compartment lid, wipe off any
water on the outside of the unit.

Rear

For improved reception

The built-in ferrite bar antenna (for AM) or the print pattern
antenna (for TV and FM) activates. Change the direction of the
unit for optimum reception.

If noise still makes it hard to hear the FM program, connect the FM
wire antenna (supplied) to the WIRE ANT terminal and extend it
as long as possible.

POWER ON

Press to turn on the radio.

TUNE

Tune in the desired station.

VOL (volume)
C.) Turn clockwise to get sound.

/ BAND
Select TV H, TV L,.FM or AM.

Band display

-0FF

Press to turn off the radio.

Close the lid firmly until a click sounds.

Battery replacement

The BATTERY indicator lights dUring operation. If the batteries
become weak, the indicator will glow faintly. in this case, replace
all the batteries with new ones. Concerning the battery life, see
"Specifications".

_2_

Size C (IEC designation R14)
