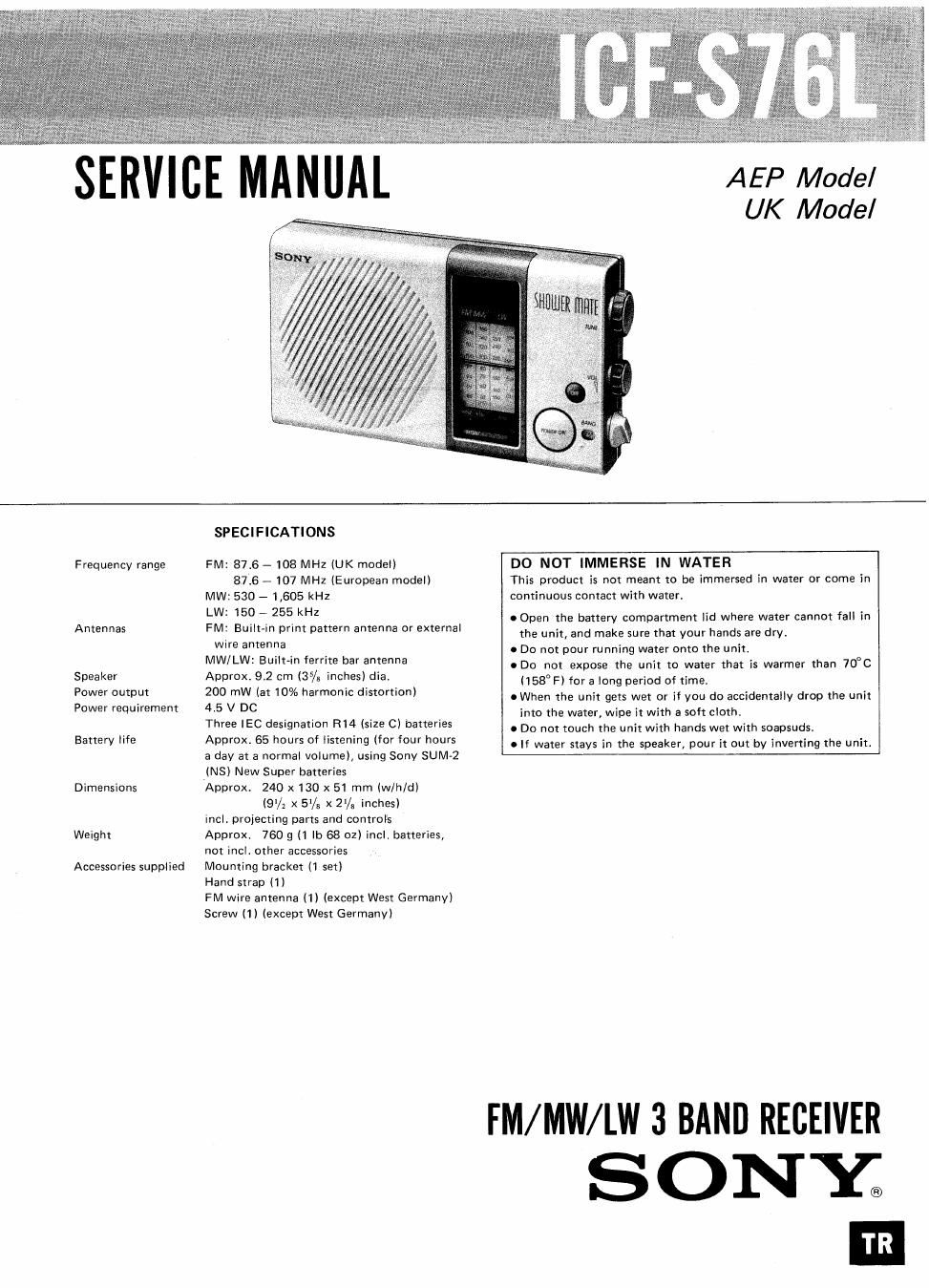

Page 1

AEP Model
UK Model

Frequency range

Antennas

Speaker
Power output
Power requirement

Battery life

Dimensions

Weight

Accessories supplied

SPECIFICATIONS

FM: 87.6- 108 MHz (UK model)
875 - 107 MHz (European model)
MW: 530 - 1,605 kHz
LW: 150 - 255 kHz
FM: Built»in print pattern antenna or external
wire antenna
MW/LW: Built-in ferrite bar antenna
Approx, 92 cm (35/3 inches) dia.
200 mW (at 10% harmonic distortion)
4.5 V DC
Three IEC designation R14 (size C) batteries
Approx. 65 hours of listening {for four hours
a day at a normal volume), using Sony SUM-2
(NS) New Super batteries
Approx 240 x 130 x 51 mm (w/h/d)
(9% x 5%; x 21/3 inches)
incl. projecting parts and controls
Approx 760 g (1 lb 68 oz) incl. batteries,
not inclt other accessories
Mounting bracket (1 set)
Hand strap (1)
FM wire antenna 11) (except West Germany)
Screw (1) (except West Germany)

DO NOT IMMERSE IN WATER
This product is not meant to be immersed in water or come in
continuous contact with watert

0 Open the battery compartment lid where water cannot fall in
the unit, and make SUre that your hands are dry

0 Do not pour rUnning water onto the units

0 Do not expose the unit to water that is warmer than 70°C
(158°F) for a long period of time.

ownen the unit gets wet or if you do accidentally drop the unit
into the water, wipe it with a soft cloth.

0 Do not touch the unit with hands wet with soapsudst

o If water stays in the speaker, pour it out by inverting the units

FM/MW/LW 3 BAND RECEIVER

ONY;

TR

Page 2

7 lCF-S76L

LOCATION AND FUNCTION OF CONTROLS

For improved reception


WIRE ANT (antenna) terminal (rearl
The builHn ferrite bar antenna (for MW/LW) or the print pattern
antenna (for FMl activates. Change the direction of the unit for
optimum reception.

If noise still makes it hard to hear the FM program, connect the FM
wire antenna (supplied) to the WIRE ANT terminal and extend it
as long as possible.

Dial pointer

POWER 0N

Press to turn on the radio.

TUNE

Tune in the desired station.

VOL (volume)

Turn clockwise to get sound.

BAND
Select FM, MW, or LW,

._) Band display

-OFF

Press to turn off the radio.

Battery compartment (rear)

BATTERY indicator

BATTE RY INSTALLATION

Before opening the battery compartment lid, wipe off any
water on the outside of the unit.

Flear

Close the lid firmly until a click soundst

Battery replacement

The BATTERY indicator lights during operation. II the batteries
become weak, the indicator will glow faintly. In this case, replace
all the batteries with new ones. Concerning the battery life, see
Specifications.

_2_
