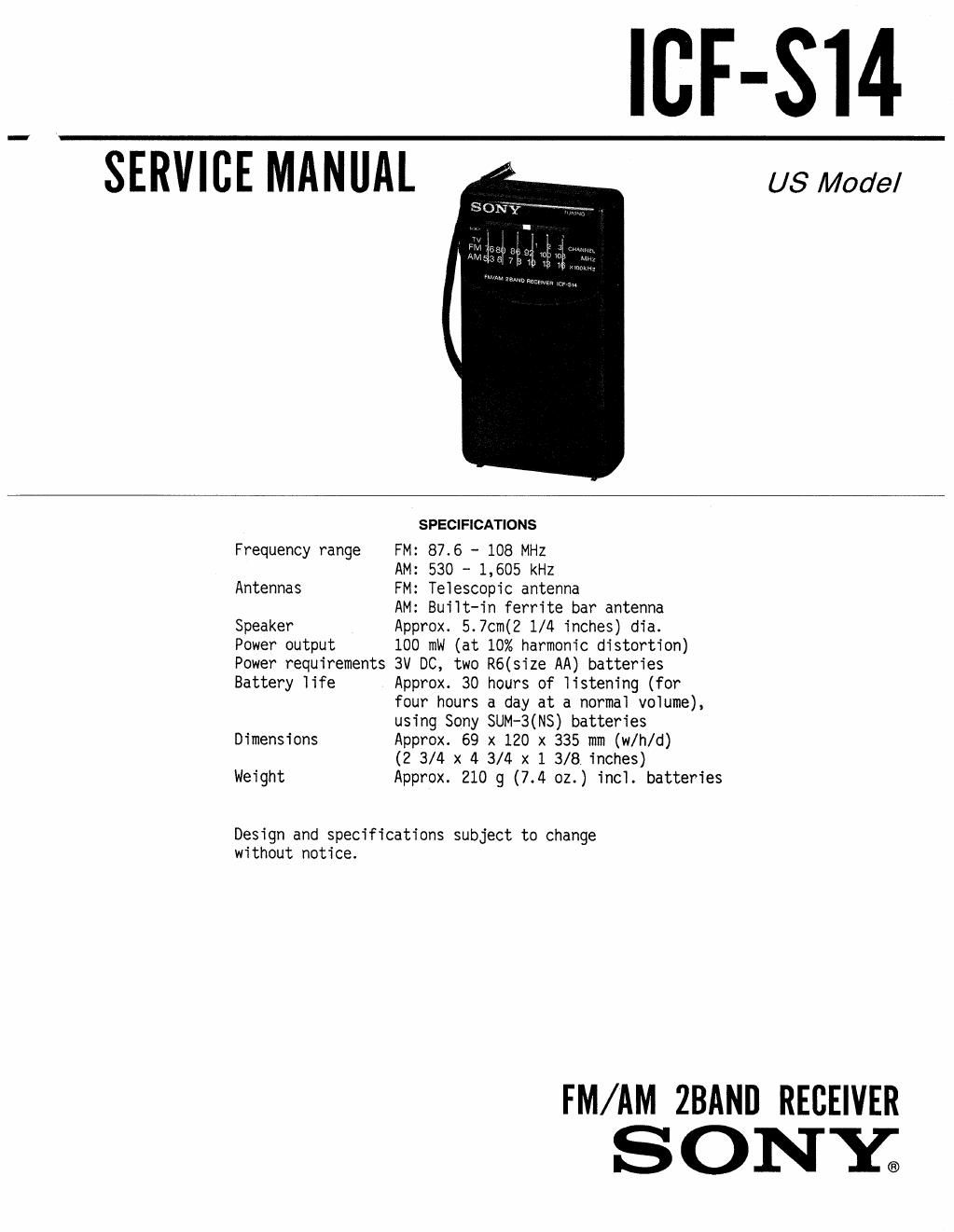

Page 1

ICF-SI4

SERVICE MANUAL

US Model

Frequency range
Antennas

Speaker

Power output
Power requirements
Battery iife

Dimensions

Weight

SPECIFICATIONS

FM: 87.6 - 108 MHZ

AM: 530 - 1,605 kHz

FM: Teiescopic antenna

AM: BuiIt-in ferrite bar antenna
Approx. 5.7cm(2 1/4 inches) dia.

100 mw (at 10% harmonic distortion)
3V DC, two R6(size AA) batteries
Approx. 30 hours of iistening (for
four hours a day at a normai volume),
using Sony SUM-3(NS) batteries
Approx. 69 x 120 x 335 mm (w/h/d)

(2 3/4 x 4 3/4 x 1 3/8 inches)
Approx. 210 g (7.4 02.) inc}. batteries

Design and specifications subject to change

without notice.

FM/AM ZBAND RECEIVER
SONE

Page 2

SECTION 1
DISASSEMBLY

1-1. REAR CABINET REMOVAL
Note: Follow the disassembly procedure in the numerical order given 1-3. TUNE KNOB INSTALLATION

Oscrew

rear cabinet
Release the latch by opening the

rear cabinet in the direction of
arrowg,

Set the hole of tune knob in the
direction of arrow ® and
install it to rear cabinet,

1-2. POINTER SETTING 1~4. RADIO BOARD INSTALLATION

0 Turn the variable capacitor fully
in the direction of arrow

0 Install radio board to the front
Slide the pointer to reach the stopper. cabinet.

variable
capacitor

front cabinet
