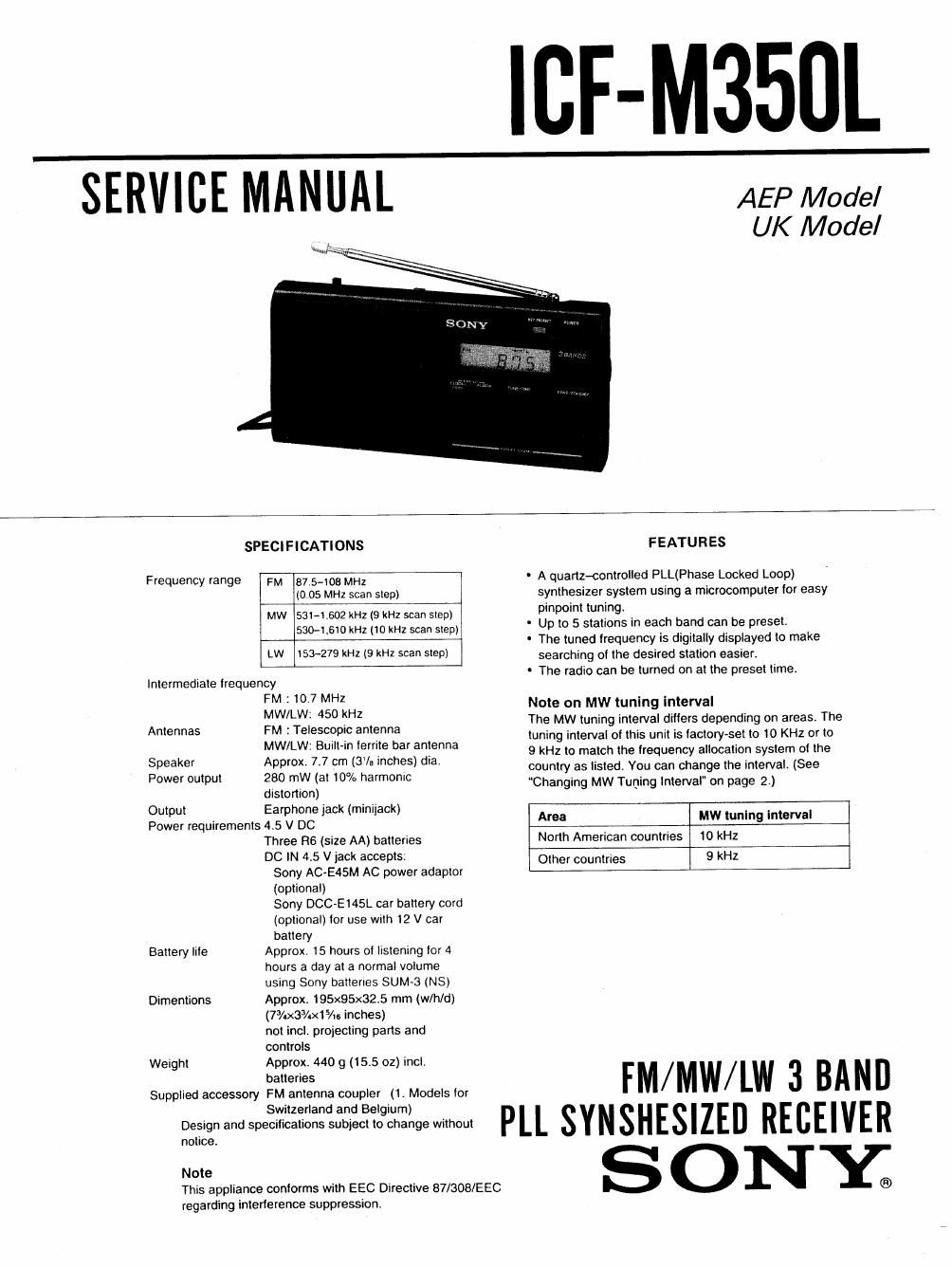

l0F-M350L

SERVICE

MANUAL

AEP Model
UK Model

Frequency range

SPECIFICATIONS

FM 87 5-103 MHz
(0.05 MHz scan step)

MW 53tat.602 kHz (9 kHz scan step)
5304.610 kHz (10 kHz scan step)

LW 153-279 kHz (9 kHz scan step)

Intermediate trequency

Antennas

Speaker
Power output

Output

FM : 107 MHZ

MW/LW: 450 kHz

FM : Telescopic antenna

MW/LW: Built-in ferrite bar antenna
Approx. 7.7 cm (3%; inches) dia.
280 mW (at We harmonic
distortion)

Earphone jack (minijack)

Power requirements 4.5 V DC

Battery lite

Dimentions

Weight

Supplied accessory

Design and specifications subject to change without

notice.

Note

This appliance conforms with EEC Directive 87/308/EEC

Three R6 (size AA) batteries
DC IN 45 V jack accepts:
Sony AC-E45M AC power adaptor
(optional)
Sony DCCVEMSL car battery cord
(optional) lor use With 12 V car
battery
Approx. 15 hours of listening lor 4
hours a day at a normal volume
using Sony batteries SUM-3 (NS)
Approx, 195x95x325 mm (w/h/d)
(73/.x33/ix15/is inches)
not incl. projecting parts and
controls
Approx. 440 g (15.5 oz) incl.
batteries

Switzerland and Belgium)

regarding interference suppression.

FM antenna coupler (1. Models lor

FEATURES

' A quartz-controlled PLL(Phase Locked Loop)
synthesizer system using a microcomputer for easy
pinpoint tuning.

' Up to 5 stations in each band can be preset.

° The tuned frequency is digitally displayed to make
searching of the desired station easier.

' The radio can be turned on at the preset time.

Note on MW tuning interval

The MW tuning interval drfters depending on areas. The
tuning interval of this unit is lactory-set lo 10 KHz or to
9 kHz to match the Irequency allocation system of the
country as listed. You can change the interval. (See
Changing MW Tuning Interval" on page 2.)

Area MW tunlng Interval
North American countries 10 kHz
Other countries 9 kHZ

FM/MW/LW 3 BAND

PLL SYNSHESIZEII RECEIVER

SONY;
