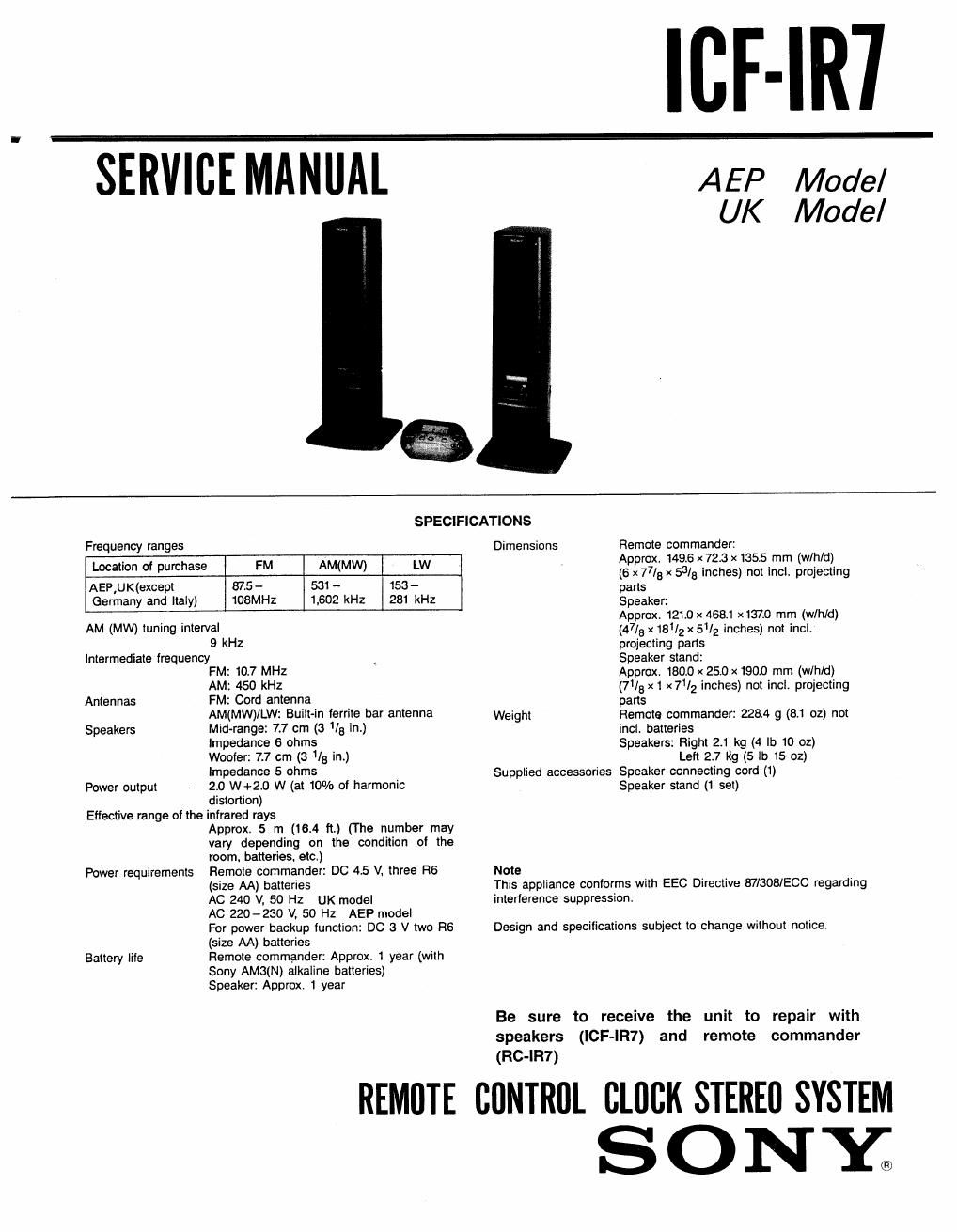

Page 1

SERVICE MANUAL

%

ICF-IR'I

AEP Model
UK Model

SPECIFICATIONS
Frequency I3'1995 Dimensions Remote commander:
Lot: t' of wit FM AM M Approx. 149.6x72.3 x1355 mm (w/h/d)
a '°" 9 a I w) M (6 x 7718 x 53/8 inches) not incl. projecting

AEP,UK(except 87.5 - 531 -- 153 -
Germany and itaiy) 103MHz 1,602 kHz 281 kHz

AM (MW) tuning intenrai

9 kHz
intermediate frequency

FM: 10.7 MHz

AM: 450 kHz
Antennas FM: Cord antenna

AM(MW)/LW: Built-in ferrite bar antenna
Speakers Mid-range: 7.7 cm (3 18 int)

Impedance 6 ohms
Woofer: 7] cm (3 1[3 in.)
Impedance 5 ohms

Power output 2.0 W+2t0 W (at 10% of harmonic
distortion)

Effective range of the infrared rays
Approx 5 m (16.4 ft) (The number may
vary depending on the condition of the
room. batteries. etc.)

Power requirements Remote commander: DC 45 V, three H6
(size AA) batteries
AC 240 V. 50 HZ UK model
AC 220-230 V, 50 Hz AEP model
For power backup function: DC 3 V two R6
(size AA) batteries

Battery lite Remote commander: Approx. 1 year (with
Sony AM3(N) alkaline batteries)
Speaker: Approx. 1 year

REMOTE

parts
Speaker:
Approx. 121.0x468.1 x1370 mm (w/h/d)
(47/3 x18l2 x 51/2 inches) not incl.
projecting parts
Speaker stand:
Approx. 180.0 x 250 x 190.0 mm (wlh/d)
(7lax1 x7l2 inches) not incl. projecting
parts
Weight Remote commander: 2284 g (8.1 02) not
incl. batteries
Speakers: Right 2.1 kg (4 lb 10 oz)
Left 2.7 kg (5 lb 15 oz)
Supplied accessories Speaker connecting cord (1)
Speaker stand (1 set)

Note
This appliance coniorms with EEC Directive 87/308/ECC regarding
inlerterence suppression.

Design and specifications subject to change without notice,

Be sure to receive the unit to repair with
speakers (lCF-IR7) and remote commander
(RC-1R7)

aniRuL CLOCK 31mm SYSTEM
0 N Y;

Page 2

lCF-IR7

The lCF-IR7 is a remote-control clock stereo system. which
employs an omnidirectional remote control device using
infrared rays. Since the speakers are not connected to the
remote commander by a connecting cord, you are free to
customize the system installation in many different ways.

- The 2-way ¢speaker system enables you to enjoy stereo
sound with powerful bass.

- The remote commander is compact and thus highly
versatile.

- You can choose from three alarm sounds: a radio alarm,
a buzzer alarm, or a dual alarm that combines both Alarm
A (radio) and Alarm B (buzzer).
alarm: Alarm A (radio) and Alarm B (buzzer).

o The system has a memory for to preset stations. We
recommend you to preset your favorite stations for easier
tuning.

- The Sony Discman with REMOTE jack may be connected
to the speaker and controlled by the remote commander.

TABLE OF CONTENTS
Section Title Page
1. GENERAL
Location of Controls 3
Setting the Clock ~ 4
Operating the Radr 4
Preset Tuning 5
Setting the Alarm 8
2. ELECTRICAL ADJUSTMENT ----------------------------- 7
3. DIAGRAMS .
. Circuit Boards Location ............................................... 9
0 Semiconductor Lead Layouts 9
0 Schematic Diagramm 10
0 Printed Wiring Boardsu- 13
4. EXPLODED VIEWS
4-1. Speaker (Left) 16
4-2. Speaker (Right) ~ 17
5_ ELECTRICAL PARTS LIST ................................... 13

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
