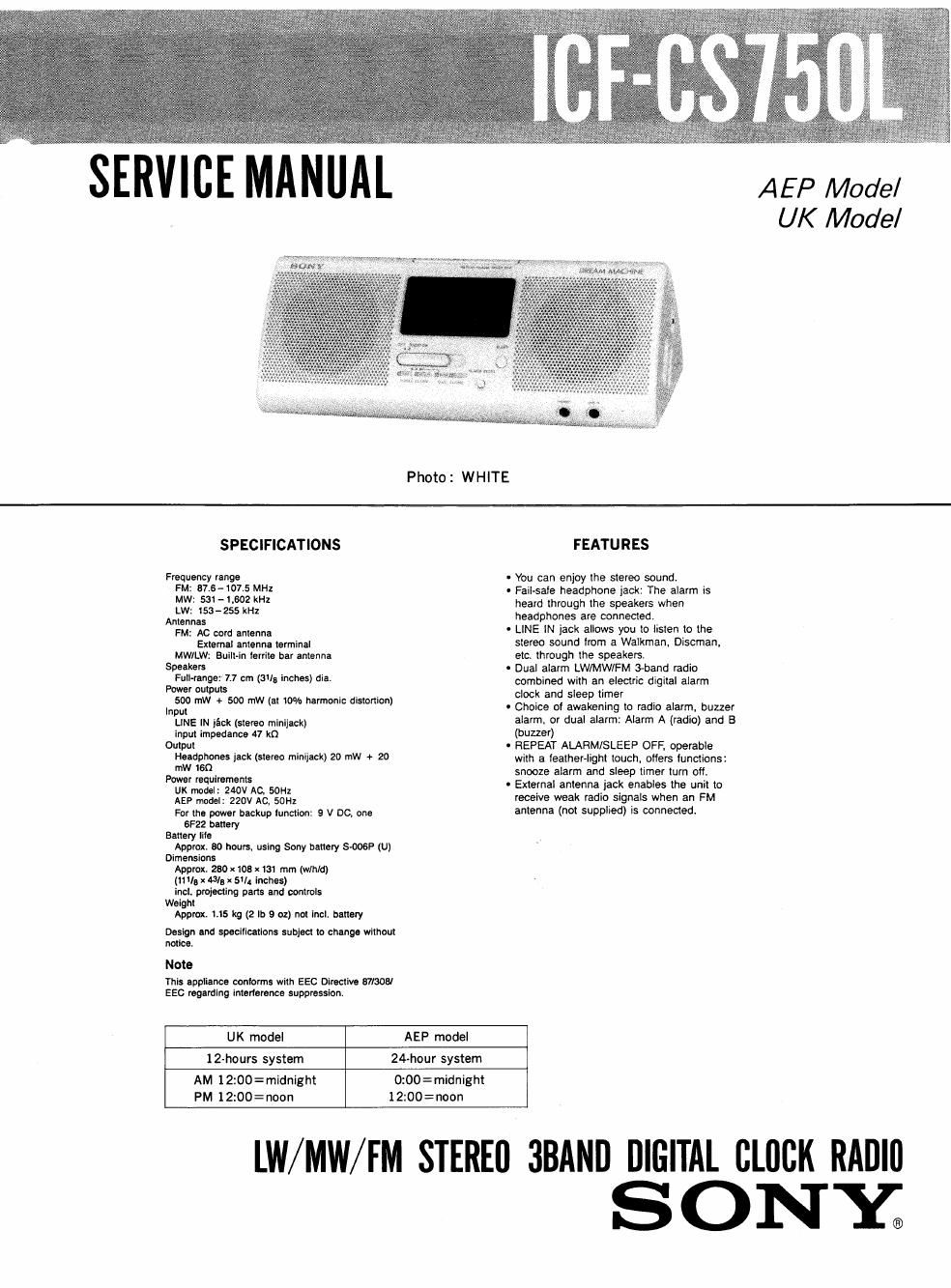

ICF-CS750L
MODEL IDENTIFICATION . SAFETV-RELATED COMPONENT WARNING]!
-Specification Label- COMPONENTS IDENTIFIED av MARK A on DOTTED
Carved on rear cabinet LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL To SAFE
SONYo MODEL No. |CF.cs750|_ OPERATION, REPLACE THESE cOMPoNENTs WITH
--- SONY PARTS WHosE PART NUMBERS APPEAR As
FM/MW/LW 3 BANDS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
AEP model: AC: 220V~50Hz 9W
UK model 2 AC: 240V~50Hz 9W
SECTION 1
DIAL POINTER INSTALLATION
POINTER SETTING
1. Turn TUNING knob (T) fully in the direction of arrow.
2. Set the left end of Ihe poinker to snatched line.
scratched line
I: 8\ pointer
TUNING knob (T)
