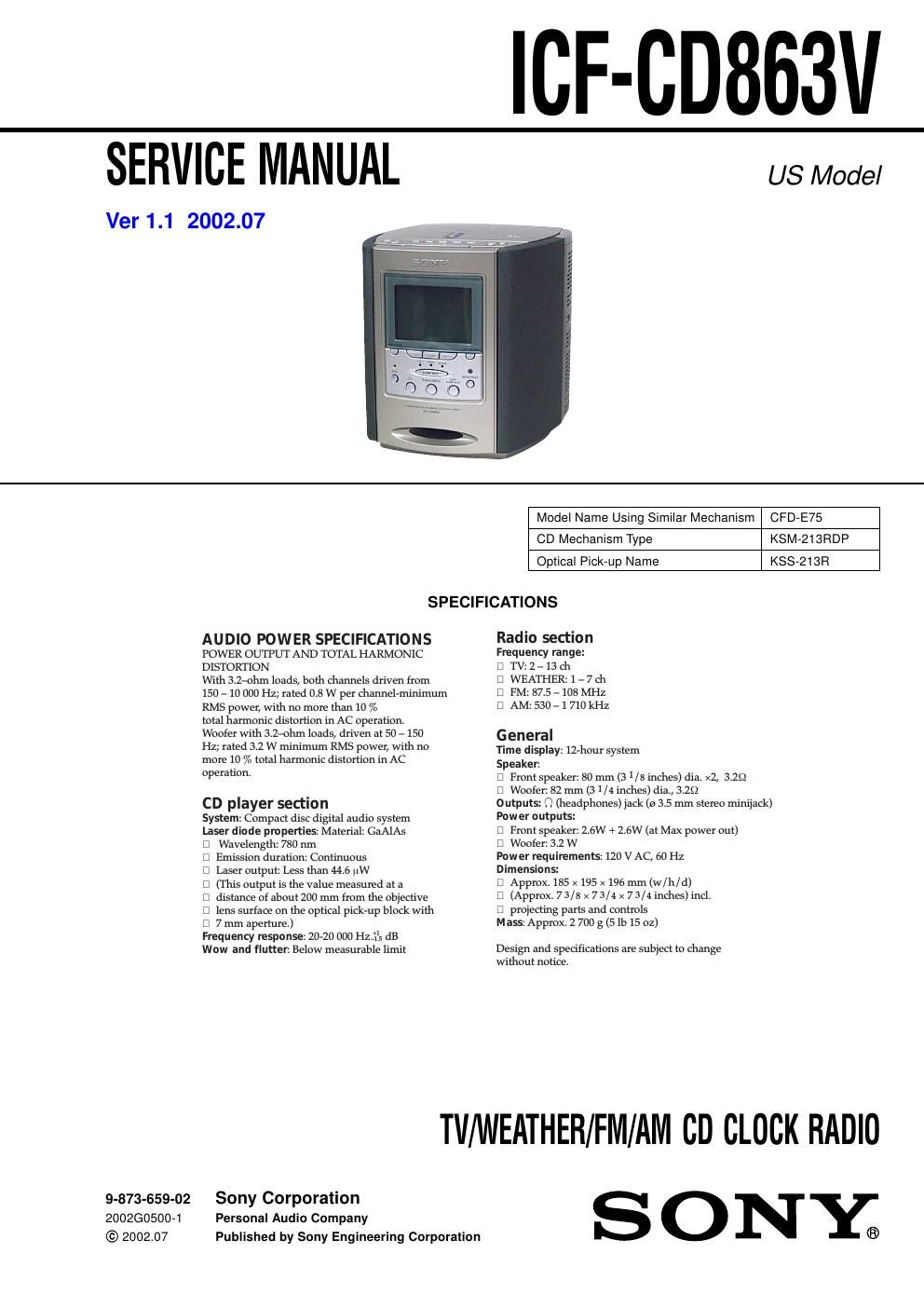

Sony icf cd 863 v service manual
This is the 46 pages manual for sony icf cd 863 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony icf cd 863 v service manual (Ocr-read)
Page 1
2 ICF-CD863V About CD-Rs/CD-RWs This unit is compatible with CD-Rs/CD-RWs but playback capability may vary depending on the quality of the disc, the recording device and application software. TABLE OF CONTENTS 1. SERVICING NOTES .............................................. 3 2. GENERAL .................................................................. 4 3. DISASSEMBLY 3-1. Disassembly Flow........................................................... 5 3-2. Cabinet (Rear) Section.................................................... 6 3-3. Cabinet (Upper) Section................................................. 6 3-4. Panel (SP) (,L), Panel (SP) (,R)...................................... 7 3-5. CD Lid Assy.................................................................... 7 3-6. KEY Board, MAIN Board.............................................. 8 3-7. CD Block ........................................................................\ . 8 3-8. Optical Pick-up De vice (KSS-213R).............................. 9 3-9. TRANSFORMER Board ................................................ 9 3-10. Box (SP) Assy................................................................. 10 3-11. Speaker (8.2 cm) (Woofer) (SP301), Box (SP).............. 11 4. ELECTRICAL ADJUSTMENTS Tuner Section ................................................................. 12 CD Section ..................................................................... 14 5. DIAGRAMS 5-1. Block Diagram – CD Section –.................................... 15 5-2. Block Diagram – TUNER Section –............................ 16 5-3. Block Diagram – MAIN Section –............................... 17 5-4. Note for Printed Wiring Board and Schematic Diagrams ....................................................... 18 5-5. Printed Wiring Board – CD Section –.......................... 20 5-6. Schematic Diagram – CD Section –............................. 21 5-7. Printed Wiring Boards – MAIN Section –................... 22 5-8. Schematic Diagram – MAIN Section –........................ 23 5-9. Printed Wiring Boards – POWER Section –................ 24 5-10. Schematic Diagram – POWER Section –.................... 25 5-11. Printed Wiring Boards – PANEL Section –................. 26 5-12. Schematic Diagram – PANEL Section –...................... 27 5-13. IC Pin Function Description.......................................... 30 6. EXPLODED VIEWS 6-1. Overall Section................................................................ 31 6-2. Cabinet (Front) Section................................................... 32 6-3. Cabinet (Upper) Section................................................. 33 6-4. Cabinet (Rear) Section.................................................... 34 6-5. Optical Block (KSM-213RDP)....................................... 35 7. ELECTRICAL PARTS LIST .............................. 36 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. Notes on chip component replacement -N ever reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST T he AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a r eturn to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indica- tion is 0.75 V, so analog meters must have an accurate low- v oltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure.
Page 2
3 ICF-CD863V S301 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S301. (push switch type) The following checking method for the laser diode is operable. -Method Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S301 as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or dam- aged. 3. Press the CD u button. 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. In this operation, the object lens will move up and down 2 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. -Code number of Chuck Plate Jig: X-4918-255-1 Fig.1 Method to push the S301
